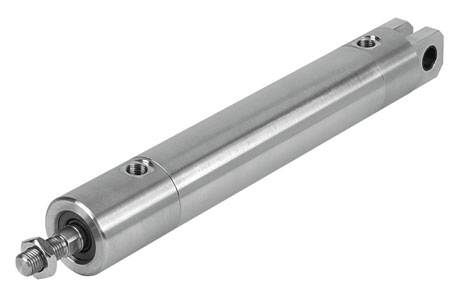

Festo CRHD-100- -PPV-A-MQ Pneumatic Cylinder
The Festo CRHD-100- -PPV-A-MQ Pneumatic Cylinder offers Double-acting operation, G3/8 connection, 100 mm diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRHD Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | CRHD-100- -PPV-A-MQ |
Festo CRHD-100- -PPV-A-MQ Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 500 |
| Piston diameter | 100 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20; 80 |
| Cushioning length | 31 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 4418 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 4712 |
| Moving mass for 0 mm stroke | 968 |
| Additional moving mass per 10 mm stroke | 38 |
| Basic weight for 0 mm stroke | 8357 |
| Additional weight per 10 mm stroke | 38 |
| Pneumatic connection | G3/8 |
| Material cover | High-alloy stainless steel |
| Material seals | NBR; TPE-U(PU) |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
Built with high-alloy stainless steel for the housing, piston rod, and cover, the Festo CRHD-100-PPV-A-MQ offers exceptional resistance to corrosion and mechanical stress, making it suitable for aggressive industrial settings. The actuator operates as a double-acting pneumatic cylinder with a piston diameter of 100 mm, delivering a maximum theoretical force of 4712 N during the advance stroke and 4418 N during the return stroke, when operated at 0.6 MPa (6 bar).
Its adjustable pneumatic cushioning at both ends ensures smooth deceleration and increased lifespan of machinery, while the G3/8 pneumatic connection supports standard integration into automation setups. The cylinder supports stroke lengths between 10 to 500 mm, allowing for flexibility in application design. It’s compatible with both lubricated and dry compressed air systems as per ISO 8573-1:2010 [7:4:4], making it a universal choice for diverse industries.
For smart machine diagnostics and motion tracking, the CRHD-100-PPV-A-MQ supports position detection via proximity switch. With LABS (PWIS) conformity to VDMA24364-B2-L and a corrosion resistance class of CRC 3, this actuator is also suitable for environments requiring paint-wetting impairment substance resistance. Whether in food processing or high-speed production lines, it performs reliably across ambient temperatures of -20°C to +80°C. Backed by Festo’s global engineering reputation, this cylinder guarantees long-term efficiency with reduced maintenance.
The Festo Round Cylinder CRHD series is widely used across assembly automation, material handling, metal forming, and packaging machinery. Its rugged construction and modular adaptability make it a preferred choice for plant engineers and OEM designers looking for dependable pneumatic actuation in demanding use cases.
In environments where cleanliness and mechanical stress resistance are critical—such as in automotive manufacturing lines or food-grade facilities—this cylinder’s stainless steel build and LABS compliance ensure uninterrupted performance. Its ability to work with lubricated compressed air adds versatility, while sensor integration for position tracking supports predictive maintenance strategies in smart factories.
For Indian maintenance engineers and automation professionals, the CRHD-100-PPV-A-MQ offers a reliable upgrade for legacy cylinder systems, delivering greater control over speed, force, and cycle accuracy. It’s not just a cylinder—it’s a precision motion solution trusted by leading industries worldwide.
