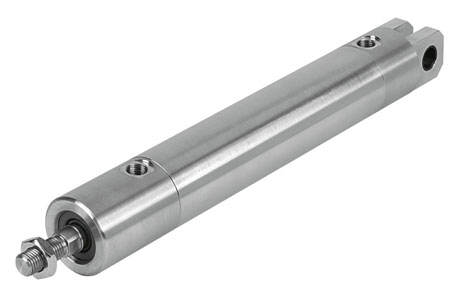

Festo CRHD-100- -PPV-A-MC-S6 Pneumatic Cylinder
The Festo CRHD-100- -PPV-A-MC-S6 Pneumatic Cylinder offers Double-acting operation, G3/8 connection, 100 mm diameter, andPiston; Piston rod. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRHD Series.
| Brand | Festo |
| Product Type | Round Cylinder |
| Product | CRHD-100- -PPV-A-MC-S6 |
Festo CRHD-100- -PPV-A-MC-S6 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 500 |
| Piston diameter | 100 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | -20; 120 |
| Cushioning length | 31 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 4418 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 4712 |
| Moving mass for 0 mm stroke | 968 |
| Additional moving mass per 10 mm stroke | 38 |
| Basic weight for 0 mm stroke | 8357 |
| Additional weight per 10 mm stroke | 38 |
| Pneumatic connection | G3/8 |
| Material cover | High-alloy stainless steel |
| Material seals | FPM |
| Material housing | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
The CRHD-100-PPV-A-MC-S6 from Festo is engineered to meet the performance needs of high-cycle industrial operations. With a 100 mm piston diameter and stroke options ranging from 10 mm to 500 mm, this round cylinder is designed for heavy-duty use where precision and longevity are essential. At 6 bar (0.6 MPa), it generates a powerful advance stroke force of 4712 N and a return stroke force of 4418 N, making it ideal for press, clamping, and motion applications that require consistent force output.
The unit features pneumatic cushioning that is adjustable at both ends, ensuring smooth deceleration and reducing impact wear during fast cycles. It supports position detection via proximity switch, allowing seamless integration into smart automation systems. Built with FPM seals and a full high-alloy stainless steel body, the CRHD-100 variant achieves a Corrosion Resistance Class (CRC) 3 rating—fit for aggressive chemical, pharmaceutical, and food zone applications. Furthermore, the product is certified as LABS (PWIS) conformant (VDMA24364-B2-L), meaning it can be used in paint and coating lines without risk of contamination.
Engineers trust this model for its temperature resistance up to 120°C, flexible mounting options, and consistent performance under extreme stress. Whether you are upgrading a production line or designing a new system, the Festo CRHD-100-PPV-A-MC-S6 provides long-lasting reliability and compatibility with ISO 8573-1:2010-compliant compressed air. Visit Festo’s official site for more specifications.
The Festo CRHD Round Cylinder is widely used in industries where both force and environmental resistance are critical. In automotive production lines, it handles repetitive press and clamping operations under high cycle loads. In pharmaceutical and food environments, its LABS-free design and stainless-steel construction meet hygiene and corrosion protection standards without additional coating or sealing.
This model is especially suitable for automation zones with exposure to high heat, such as drying ovens or steam processing chambers. Thanks to its heat-resistant FPM seals and ambient temperature tolerance up to +120°C, it performs reliably where conventional pneumatic cylinders fail. Engineers also choose it for painting lines and cleanrooms where LABS compliance and material purity are mandatory.
For students and maintenance engineers, the CRHD-100-PPV-A-MC-S6 serves as a clear example of advanced pneumatic design. It combines high force output, configurable stroke, and sensor compatibility—all in one compact actuator. Learning how this product functions builds strong foundational knowledge of industrial automation, predictive maintenance, and motion control design.
