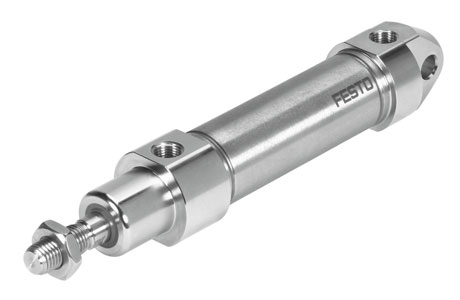

Festo CRDSNU-B-20-200-PPS-A-MG-A1 Pneumatic Cylinder
The Festo CRDSNU-B-20-200-PPS-A-MG-A1 Pneumatic Cylinder offers rod thread, piston rod end, 20 mm diameter, andPiston; Piston rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRDSNU Series.
| Brand | Festo |
| Product Type | ISO Cylinder |
| Product | CRDSNU-B-20-200-PPS-A-MG-A1 |
Festo CRDSNU-B-20-200-PPS-A-MG-A1 Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 200 |
| Piston diameter | 20 mm |
| Based on standard | ISO 6432 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Design | Piston; Piston rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Operating pressure | 1; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | 0; 80 |
| Basic weight for 0 mm stroke | 310 |
| Additional weight per 10 mm stroke | 7.2 |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
