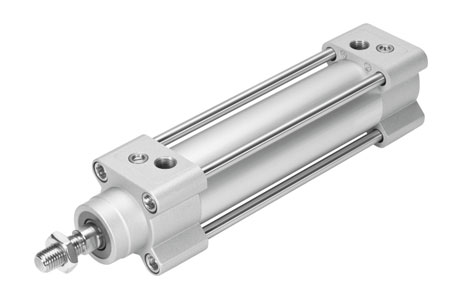

Festo CRDNGS-80-PPV-A Pneumatic Cylinder
The Festo CRDNGS-80-PPV-A Pneumatic Cylinder offers M20x1.5 rod thread, Male thread piston rod end, 80 mm diameter, andPiston; Piston rod; Swivel clevis; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRDNGSeries.
| Brand | Festo |
| Product Type | Pneumatic Cylinder |
| Product | CRDNGS-80-PPV-A |
Festo CRDNGS-80-PPV-A Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 2000 |
| Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Piston-rod end | Male thread |
| Design | Piston; Piston rod; Swivel clevis; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Variants | End cap with swivelling rod eye |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -20; 80 |
| Cushioning length | 30 |
| Moving mass for 0 mm stroke | 1018 |
| Additional moving mass per 10 mm stroke | 39 |
| Basic weight for 0 mm stroke | 5804 |
| Additional weight per 10 mm stroke | 92 |
| Type of mounting | Either:; Via female thread; With accessories |
| Pneumatic connection | G3/8 |
| Material cover | Stainless steel casting |
| Material seals | TPE-U(PU) |
| Material housing | High-alloy stainless steel |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
| Material nut | High-alloy stainless steel |
| Material bearing | POM |
| Material collar nut | High-alloy stainless steel |
| Material tie rod | High-alloy stainless steel |
| Based on standard | ISO 15552 |
