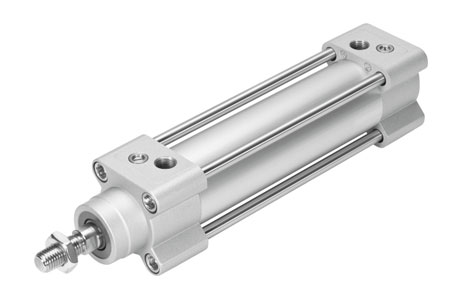

Festo CRDNG-32-PPV-A-S6 Pneumatic Cylinder
The Festo CRDNG-32-PPV-A-S6 Pneumatic Cylinder offers M10x1.25 rod thread, Male thread piston rod end, 32 mm diameter, andPiston; Piston rod; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRDNGSeries.
| Brand | Festo |
| Product Type | Pneumatic Cylinder |
| Product | CRDNG-32-PPV-A-S6 |
Festo CRDNG-32-PPV-A-S6 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 2000 |
| Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston; Piston rod; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 991235 |
| Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | 0; 120 |
| Cushioning length | 19 |
| Moving mass for 0 mm stroke | 154 |
| Additional moving mass per 10 mm stroke | 9 |
| Basic weight for 0 mm stroke | 1040 |
| Additional weight per 10 mm stroke | 25 |
| Type of mounting | Either:; Via female thread; With accessories |
| Pneumatic connection | G1/8 |
| Material cover | Stainless steel casting |
| Material seals | FPM |
| Material housing | High-alloy stainless steel |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
| Material nut | High-alloy stainless steel |
| Material bearing | Metal polymer compound |
| Material collar nut | High-alloy stainless steel |
| Material tie rod | High-alloy stainless steel |
