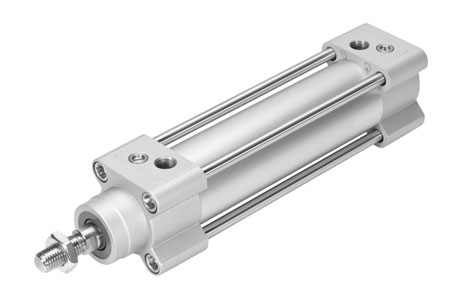

Festo CRDNG-125-PPV-A-S2 Pneumatic Cylinder
The Festo CRDNG-125-PPV-A-S2 Pneumatic Cylinder offers M27x2 rod thread, Male thread piston rod end, 125 mm diameter, andPiston; Piston rod; Tie rod; Cylinder barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the CRDNGSeries.
| Brand | Festo |
| Product Type | Pneumatic Cylinder |
| Product | CRDNG-125-PPV-A-S2 |
Festo CRDNG-125-PPV-A-S2 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10; 2000 |
| Piston diameter | 125 mm |
| Piston rod thread | M27x2 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston; Piston rod; Tie rod; Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 991237 |
| Variants | Through piston rod |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -20; 80 |
| Cushioning length | 40 |
| Moving mass for 0 mm stroke | 3239 |
| Additional moving mass per 10 mm stroke | 128 |
| Basic weight for 0 mm stroke | 16402 |
| Additional weight per 10 mm stroke | 220 |
| Type of mounting | Either:; Via female thread; With accessories |
| Pneumatic connection | G1/2 |
| Material cover | Stainless steel casting |
| Material seals | TPE-U(PU) |
| Material housing | High-alloy stainless steel |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
| Material nut | High-alloy stainless steel |
| Material bearing | POM |
| Material collar nut | High-alloy stainless steel |
| Material tie rod | High-alloy stainless steel |
