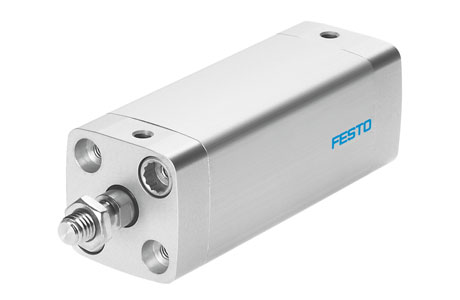

CDC-25 - 543306 - Festo Compact Cylinder
CDC-25 543306 Festo Compact Cylinder
| Brand | Festo |
| Product Type | Compact Cylinder |
| Product | CDC-25 |
CDC-25 543306 Festo Compact Cylinder Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 300 |
| Piston diameter | 25 mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Variants | Extended male piston rod thread; Custom thread on the piston rod; Extended piston rod; Through piston rod; Heat-resistant seals max. 120°C; Piston rod at one end |
| Operating pressure | 0.6; 10 |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -20; 120 |
| Type of mounting | Either:; With through-hole; Via female thread |
| Pneumatic connection | M5 |
| Material cover | Wrought aluminium alloy; Anodised |
| Material piston rod | High-alloy stainless steel |
