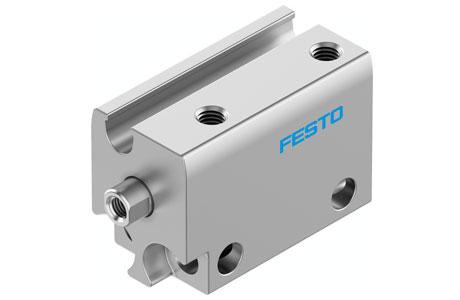

AEN-S-32-5-I-P - 8076512 - Festo Compact Cylinder
AEN-S-32-5-I-P 8076512 Festo Compact Cylinder
| Brand | Festo |
| Product Type | Compact Cylinder |
| Product | AEN-S-32-5-I-P |
AEN-S-32-5-I-P 8076512 Festo Compact Cylinder Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 5 |
| Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston; Piston rod |
| Variants | Piston rod at one end |
| Operating pressure | 14.5; 145 |
| Mode of operation | Pushing |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | 0; 80 |
| Type of mounting | Either:; With through-hole; Via female thread; With accessories |
| Pneumatic connection | M5 |
| Material cover | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Piston-rod end | Female thread |
| Symbol | 991730 |
| Material dynamic seals | NBR |
| Material housing | Anodised wrought aluminium alloy |
