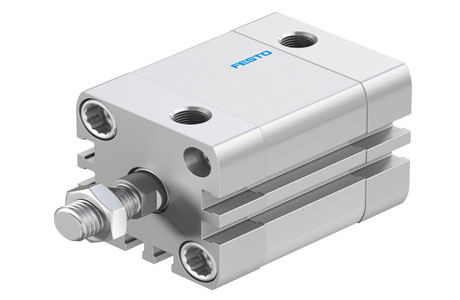

Festo ADN-40-80-A-PPS-A Pneumatic Cylinder
The Festo ADN-40-80-A-PPS-A Pneumatic Cylinder offers Double-acting operation, G1/8 connection, 40 mm diameter, and. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the ADN Series.
| Brand | Festo |
| Product Type | Compact Cylinder |
| Product | ADN-40-80-A-PPS-A |
Festo ADN-40-80-A-PPS-A Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 80 |
| Piston diameter | 40 mm |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Position detection | Via proximity switch |
| Variants | Piston rod at one end |
| Operating pressure | 1; 10 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -20; 80 |
| Type of mounting | Either:; With through-hole; Via female thread; With accessories |
| Pneumatic connection | G1/8 |
| Material collar screws | Steel |
| Material cover | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Piston rod thread | M10x1.25 |
| Piston-rod end | Male thread |
| Symbol | 992970 |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Impact energy in end positions | 1.7 |
| Moving mass | 186 |
| Product weight | 679 |
