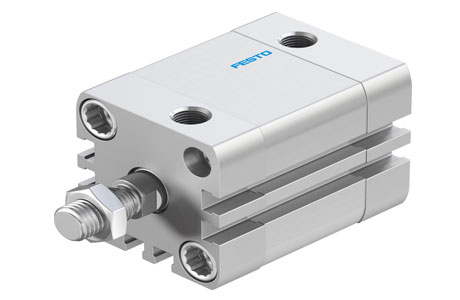

Festo ADN-32-10-I-P-A Pneumatic Cylinder
The Festo ADN-32-10-I-P-A Pneumatic Cylinder offers Double-acting operation, G1/8 connection, 32 mm diameter, and. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the ADN Series.
| Brand | Festo |
| Product Type | Compact Cylinder |
| Product | ADN-32-10-I-P-A |
Festo ADN-32-10-I-P-A Pneumatic Cylinder โ Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 10 |
| Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Position detection | Via proximity switch |
| Variants | Piston rod at one end |
| Operating pressure | 0.6; 10 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -20; 80 |
| Type of mounting | Either:; With through-hole; Via female thread; With accessories |
| Pneumatic connection | G1/8 |
| Material collar screws | Steel |
| Material cover | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Piston rod thread | M8 |
| Piston-rod end | Female thread |
| Symbol | 991217 |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Impact energy in end positions | 0.4 |
| Moving mass | 60 |
| Product weight | 269 |
