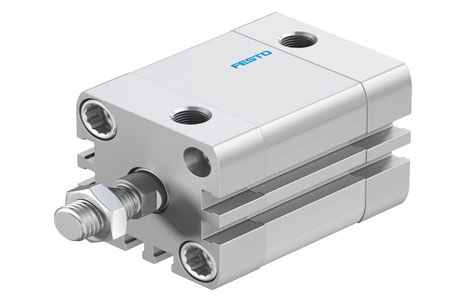

Festo ADN-125 Pneumatic Cylinder
The Festo ADN-125 Pneumatic Cylinder offers Double-acting operation, G1/4 connection, 125 mm diameter, andPiston; Piston rod; Profile barrel. Manufactured by Festo under the Festo Pneumatic Cylinder category, this model belongs to the ADN Series.
| Brand | Festo |
| Product Type | Pneumatic Cylinder |
| Model Number | ADN-125 |
Festo ADN-125 Pneumatic Cylinder – Technical Specifications
| Specification | Value |
|---|---|
| Stroke | 1; 500 |
| Piston diameter | 125 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Piston; Piston rod; Profile barrel |
| Position detection | Via proximity switch |
| Variants | EX protection approval (ATEX); Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils.; Improved running performance; Extended male piston rod thread; Custom thread on the piston rod; Extended piston rod; With protection against rotation; High corrosion protection; Uniform, slow movement; Low friction; Through piston rod; Through, hollow piston rod; Heat-resistant seals max. 120°C; Laser etched rating plate; Piston rod at one end |
| Operating pressure | 8.7; 145 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -20; 120 |
| Type of mounting | Either:; With through-hole; Via female thread; With accessories |
| Pneumatic connection | G1/4 |
| Material collar screws | Steel |
| Material cover | Die-cast aluminium, coated |
| Material piston rod | High-alloy steel |
