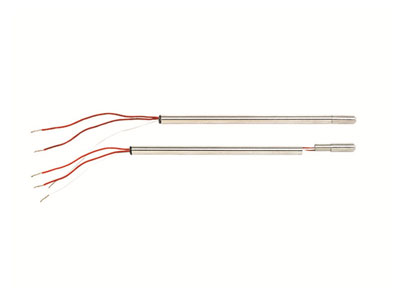

Why Do We Use 3 Wire In RTD?
Key Takeaway
We use a 3-wire RTD to improve the accuracy of temperature measurements by compensating for the resistance of the lead wires. In a 3-wire RTD, the third wire helps measure and offset the resistance introduced by the lead wires, which can affect the accuracy of the temperature reading. This is especially important when the sensor is far from the transmitter.
The third wire allows the temperature transmitter to calculate the true resistance of the RTD element, ensuring more accurate temperature measurements. This configuration is commonly used in industrial settings where precise temperature control is critical, and the sensor is often located at a distance from the measuring equipment. Using a 3-wire RTD enhances measurement reliability and accuracy.
H2: Introduction to RTD Wiring Configurations
Resistance Temperature Detectors (RTDs) are widely utilized in industrial applications for their exceptional accuracy and reliability in measuring temperatures. These devices can be set up in several wiring configurations, including 2-wire, 3-wire, and 4-wire systems, each offering distinct advantages and suitability for different measurement contexts. The 3-wire configuration is often preferred in industrial settings due to its balance between cost efficiency and measurement accuracy. This setup compensates for the resistance and potential error introduced by the lead wires themselves, which is a significant issue in the simpler 2-wire configuration. Although the 4-wire system provides the highest accuracy by eliminating lead resistance impact, its complexity and cost make the 3-wire system a more practical choice for many applications. This section will explore the technical nuances and benefits of the 3-wire RTD configuration, emphasizing why it stands out as the go-to option for reliable temperature monitoring in industrial environments.
