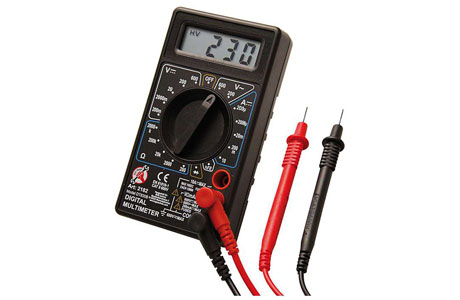

Why Are Multimeters Not Used For High-Frequency Measurements?
Key Takeaway
Multimeters are not suitable for high-frequency measurements due to their design limitations. At higher frequencies, the multimeter’s input impedance acts as a combination of capacitance and resistance, leading to loading errors. This interaction distorts the signal, causing inaccurate readings that are typically lower than the actual values.
Additionally, high-frequency signals have distributed parameters, where voltage and current vary with frequency and waveform shape. Multimeters are calibrated for specific frequencies and waveforms, such as standard AC, making them ineffective for complex or rapidly changing signals. For high-frequency measurements, specialized instruments like oscilloscopes or frequency analyzers are better suited as they are designed to handle these dynamic characteristics accurately.
Understanding Frequency Limitations of Multimeters
How Multimeters Measure Frequency:
Multimeters with frequency-measuring capabilities typically work by counting the number of cycles per second (hertz) in an AC signal.
They rely on internal circuitry designed for relatively low-frequency signals, usually up to a few hundred kilohertz.
Limitations:
Bandwidth Restrictions:
Most multimeters are not designed to process signals with rapid oscillations, limiting their accuracy at high frequencies.
Signal Resolution:
At higher frequencies, the signal may become distorted or aliased, leading to unreliable readings.
Sampling Rate:
Multimeters sample signals at lower rates compared to specialized tools like oscilloscopes, reducing their ability to capture high-speed events.
Practical Implication:
If you’re working with high-frequency signals, such as in radio communications or high-speed digital circuits, a multimeter will likely provide incomplete or inaccurate results.
Why High-Frequency Signals Are Challenging to Measure
Nature of High-Frequency Signals:
High-frequency signals oscillate rapidly, requiring tools with high bandwidth and sampling rates to capture their behavior accurately.
These signals are also more susceptible to noise and distortion, making precise measurement even more challenging.
Multimeter Challenges:
Limited Bandwidth:
A standard multimeter may only handle frequencies up to 100kHz or less, far below what’s needed for modern high-speed applications.
Input Impedance:
High-frequency signals can cause significant impedance mismatches, leading to inaccurate readings or signal loss.
Lack of Waveform Visualization:
Multimeters provide numerical readings but cannot display the waveform, which is critical for analyzing high-frequency signals.
Example:
Testing a signal at 1MHz with a multimeter would likely result in an incomplete or incorrect measurement, whereas an oscilloscope would accurately display the waveform and its characteristics.
Comparison of Multimeters and Oscilloscopes for Frequency Analysis
Multimeters:
Strengths:
Ideal for low-frequency measurements in electrical systems, such as power supply diagnostics or AC line frequency checks.
Compact and easy to use for general-purpose tasks.
Weaknesses:
Inability to capture rapid changes in high-frequency signals.
No visual representation of waveforms.
Oscilloscopes:
Strengths:
High bandwidth and sampling rates allow precise measurement of frequencies in the MHz to GHz range.
Provides a graphical display of waveforms for detailed analysis.
Useful for identifying noise, distortion, and transient events.
Weaknesses:
Larger, more expensive, and less portable compared to multimeters.
Conclusion:
For high-frequency analysis, an oscilloscope is the preferred tool, offering both accuracy and visualization. A multimeter can complement this by handling low-frequency tasks.
Common Applications Where Multimeters Fall Short
Radio Frequency (RF) Systems:
Multimeters cannot accurately measure the high frequencies found in RF circuits, which are critical in telecommunications.
High-Speed Digital Circuits:
Clock signals in microprocessors operate at frequencies beyond a multimeter’s range, making an oscilloscope necessary for testing.
Power Electronics:
Inverters and switching power supplies generate high-frequency waveforms that multimeters struggle to capture.
Audio and Ultrasonic Testing:
Although multimeters can handle audio frequencies, they often lack the precision needed for analyzing ultrasonic signals.
Recognizing where a multimeter’s limitations apply ensures that engineers can select the appropriate tools for advanced applications.
How to Complement Multimeter Use with High-Frequency Tools
While multimeters may not be suitable for high-frequency measurements, they can work alongside specialized tools to provide a comprehensive testing solution.
Complementary Tools:
Oscilloscopes:
Capture and display high-frequency waveforms with precision.
Spectrum Analyzers:
Analyze signal frequency components and detect interference in RF applications.
Frequency Counters:
Measure high frequencies accurately without waveform visualization.
Practical Tips:
Use a multimeter for low-frequency tasks like verifying power supply voltages or continuity.
Switch to an oscilloscope or frequency counter when dealing with signals above the multimeter’s range.
Ensure the test setup includes appropriate probes and shielding to minimize noise in high-frequency measurements.
By combining these tools, engineers can handle a wide range of testing scenarios effectively.
Conclusion
Multimeters are versatile and indispensable for many electrical measurements, but they fall short in high-frequency applications due to limitations in bandwidth, resolution, and sampling rates. High-frequency signals require tools like oscilloscopes, which offer the accuracy and waveform visualization necessary for advanced analysis.
For newly joined engineers, understanding these limitations and knowing when to use alternative tools is critical for effective diagnostics and troubleshooting. Combining the strengths of a multimeter with specialized high-frequency tools ensures accurate measurements and reliable results in any scenario.
