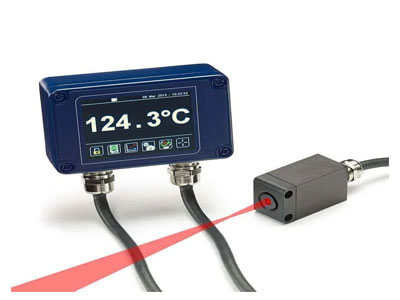

What Is The Working Principle Of A Temperature Sensor?
Key Takeaway
A temperature sensor works by measuring voltage changes. Inside the sensor, there’s a diode. When the temperature rises, the voltage across the diode terminals increases. This change in voltage helps the sensor determine the temperature.
As the voltage continues to rise, it eventually leads to a voltage drop between the transistor terminals and the emitter within the diode. This voltage drop is what the sensor uses to calculate the exact temperature. This principle allows temperature sensors to provide accurate readings based on voltage variations due to temperature changes.
Overview of Temperature Sensors
Understanding the working principle of a temperature sensor is crucial for any engineer entering the field. Temperature sensors are devices that measure temperature by converting the thermal energy into readable signals. These sensors play a vital role in various industries, from manufacturing to healthcare, ensuring processes run smoothly and efficiently.
Temperature sensors come in different types, each with its unique working principle and application. The most common types include thermocouples, Resistance Temperature Detectors (RTDs), thermistors, and semiconductor sensors. Each type has its strengths and is selected based on the specific requirements of the measurement task. Knowing how these sensors work can help you choose the right one for your application, ensuring accurate and reliable temperature readings.
How Thermocouples Work
Thermocouples are among the most widely used temperature sensors due to their extensive temperature range and robustness. They are essential in many industrial applications where high temperatures and challenging conditions are common. A thermocouple consists of two different metal wires joined at one end, known as the hot junction. The other ends of these wires, called the cold junction, are connected to a measurement device.
When there is a temperature difference between the hot and cold junctions, a voltage is generated at the junction of the two metals. This phenomenon is known as the Seebeck effect. The generated voltage is proportional to the temperature difference between the hot and cold junctions. By measuring this voltage, the temperature at the hot junction can be determined accurately.
Thermocouples are ideal for high-temperature applications due to their ability to withstand extreme heat and their durability. They can measure temperatures ranging from -200°C to over 2000°C, depending on the types of metals used. This wide range makes them suitable for various industrial processes, such as metal forging, chemical production, and power generation. Their robustness and reliability in harsh environments ensure consistent performance, making them a staple in many industrial settings.
Moreover, thermocouples are relatively inexpensive and have a fast response time, which is crucial in dynamic environments where temperature changes rapidly. Their simple design and ease of use make them a practical choice for continuous temperature monitoring in a wide array of applications.
How RTDs Work
Resistance Temperature Detectors (RTDs) are renowned for their high accuracy and stability, making them a preferred choice for precise temperature measurements. RTDs operate based on the principle that the electrical resistance of a metal changes predictably with temperature. Platinum is commonly used in RTDs due to its stable and repeatable resistance-temperature relationship, although other metals like nickel and copper can also be used.
An RTD consists of a thin wire of platinum (or another metal) wound into a coil or deposited in a thin film on a substrate. This element is placed in the environment where temperature measurement is needed. As the temperature changes, the resistance of the platinum wire changes. This change in resistance is measured by passing a small current through the RTD and measuring the resulting voltage drop.
The resistance of the RTD increases with temperature in a known and precise manner. By measuring the resistance and using the calibration curve specific to the RTD, the exact temperature can be determined. RTDs are highly accurate, with typical accuracies within 0.1°C, making them suitable for applications requiring precise temperature control.
RTDs are commonly used in laboratory and industrial applications where accuracy and repeatability are crucial. They are often found in process industries such as chemical, pharmaceutical, and food processing, where maintaining exact temperatures is essential for product quality and safety. RTDs can measure temperatures ranging from -200°C to 850°C, providing versatility for various applications.
The stability and repeatability of RTDs make them ideal for long-term use in environments where consistent temperature monitoring is necessary. Despite being more expensive than thermocouples, their superior accuracy and stability often justify the investment in applications where precise temperature measurement is paramount.
By understanding the working principles of thermocouples and RTDs, you can select the appropriate temperature sensor for your specific needs, ensuring accurate and reliable temperature monitoring in your applications.
How Thermistors Work
Thermistors are temperature-sensitive resistors that exhibit a significant change in resistance with temperature. They are typically made from ceramic materials and can be classified into two main types: Negative Temperature Coefficient (NTC) and Positive Temperature Coefficient (PTC). NTC thermistors decrease in resistance as the temperature increases, while PTC thermistors increase in resistance with rising temperature. This characteristic makes thermistors highly sensitive to temperature changes.
NTC thermistors are commonly used in applications where quick response times and sensitivity are essential, such as in electronic devices and environmental monitoring systems. For example, they are often found in digital thermostats and automotive temperature sensors. The rapid response of NTC thermistors allows for real-time temperature monitoring, which is crucial in systems that require immediate feedback and control.
On the other hand, PTC thermistors are used in applications where temperature protection is needed. They are commonly found in over-current protection devices and as resettable fuses in electronic circuits. When the temperature exceeds a certain threshold, the resistance of the PTC thermistor increases sharply, effectively limiting the current flow and protecting the circuit from damage.
Thermistors are generally used for narrower temperature ranges compared to thermocouples and RTDs, typically between -50°C and 150°C. However, their high sensitivity and quick response make them suitable for many applications that require precise temperature measurements within this range. Additionally, their relatively low cost and ease of integration into electronic circuits make thermistors a popular choice in many consumer and industrial products.
How Semiconductor Sensors Work
Semiconductor temperature sensors operate based on the temperature-dependent properties of semiconductor materials. These sensors often use diodes or transistors to measure temperature changes. When the temperature changes, it affects the voltage drop across the diode or the current flow through the transistor. These changes can be measured and translated into temperature readings, providing precise and reliable measurements.
Diode-based semiconductor sensors work by measuring the forward voltage drop across the diode, which decreases with increasing temperature. This voltage drop is directly proportional to the temperature, allowing for accurate temperature measurement. Transistor-based sensors, such as those using a bandgap reference, measure the base-emitter voltage of a transistor, which varies predictably with temperature. These sensors are commonly integrated into microcontrollers and other electronic devices for temperature monitoring and control.
Semiconductor sensors are valued for their small size, low cost, and ease of integration into electronic systems. They are ideal for applications requiring precise temperature monitoring in compact devices, such as smartphones, laptops, and other consumer electronics. Additionally, they are used in automotive and industrial applications where space and cost constraints are critical considerations.
One of the key advantages of semiconductor sensors is their ability to be integrated into integrated circuits (ICs). This integration allows for on-chip temperature sensing, which is essential for thermal management in modern electronics. By providing accurate temperature data, semiconductor sensors help prevent overheating and ensure optimal performance of electronic devices.
In summary, semiconductor temperature sensors offer a practical solution for precise temperature monitoring in compact and cost-sensitive applications. Their small size, low cost, and ease of integration make them a popular choice in various industries, from consumer electronics to automotive and industrial applications. Understanding how these sensors work and their specific advantages can help you choose the right temperature sensor for your needs.
Conclusion
Understanding the working principles of various temperature sensors is essential for selecting the right sensor for your application. Thermocouples offer robustness and a wide temperature range, making them suitable for industrial environments. RTDs provide high accuracy and stability, ideal for laboratory and precision applications. Thermistors offer sensitivity and quick response times, perfect for electronic devices. Semiconductor sensors are compact and cost-effective, ideal for integrated circuits. By knowing how these sensors work and their strengths, you can ensure accurate and reliable temperature measurements, enhancing the efficiency and safety of your processes.
