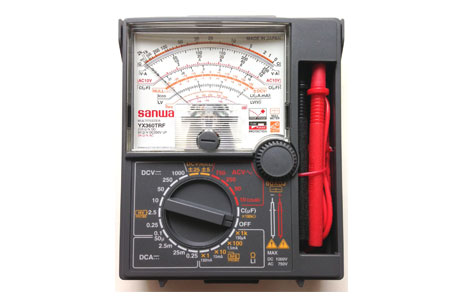

What Is The V Or V~ Symbol On A Multimeter?

Key Takeaway

The V or V~ symbol on a multimeter represents voltage measurement. The specific symbol indicates the type of voltage: V~ with a wavy line is used for AC voltage (alternating current), while V⎓ with a solid and dashed line is for DC voltage (direct current). These symbols help you select the correct mode for the type of voltage you want to measure.

Voltage is measured in volts (V), which is the unit of electrical potential. Use V~ for testing devices like wall outlets or appliances running on AC power and V⎓ for batteries or circuits powered by DC. Always ensure your multimeter is set to the correct voltage range and type for accurate results and safety. Understanding these symbols is essential for effective and safe electrical testing.

Introduction to Multimeter Symbols: An Overview

Multimeters are designed to measure multiple electrical properties, and their functionality is conveyed through a series of symbols on the device.

1. Importance of Symbols: Each symbol represents a specific function or mode, such as voltage, current, or resistance measurement. Selecting the correct symbol ensures the multimeter performs the intended test accurately.

2. Common Voltage Symbols: The “V” represents voltage measurement, with variations like V~ for AC (alternating current) and V— for DC (direct current). Understanding these distinctions is crucial for selecting the right mode.

3. Additional Indicators: Some multimeters also feature icons for diode testing, continuity, and capacitance, expanding their range of uses. Familiarizing yourself with these symbols makes the device far more versatile.

By understanding multimeter symbols, you lay the groundwork for precise electrical testing and minimize the risk of errors.

FAQ Image

An Overview H2: Decoding the V Symbol for Voltage Measurement

The “V” symbol on a multimeter is universally recognized for measuring voltage. It represents the potential difference between two points in a circuit.

1. What the V Symbol Means: Voltage is the electrical pressure that drives current through a circuit. The V setting measures this pressure in volts, making it essential for diagnosing power supply issues or confirming correct circuit operation.

2. Applications of the V Setting: The V setting is used to test batteries, power supplies, or any circuit where you need to verify the operating voltage. For example, checking a 12V car battery ensures it can still hold a proper charge.

3. Importance in Diagnostics: Incorrect voltage readings can point to various problems, such as poor connections, faulty components, or overloaded circuits. The V setting helps pinpoint these issues efficiently.

4. User Tip: Always set the multimeter to a range slightly higher than the expected voltage. For instance, if you’re testing a 12V circuit, set the range to 20V to prevent overloading the device.

Decoding the V symbol provides a solid foundation for voltage measurement, a core function of any multimeter.

Decoding the V Symbol for Voltage Measurement H2: Understanding the V~ Symbol for Alternating Current (AC) Voltage

The V~ symbol on a multimeter is specifically for measuring AC voltage, commonly found in household and industrial power systems.

1. What Is AC Voltage? Alternating current (AC) changes direction periodically, creating a wavy signal. This is in contrast to the steady flow of direct current (DC). AC is used in power grids because it’s more efficient for long-distance transmission.

2. The Role of V~: The V~ setting measures the root mean square (RMS) value of AC voltage. RMS provides a usable average of the constantly fluctuating AC signal, enabling you to work with meaningful voltage readings.

3. Practical Applications: The V~ mode is indispensable for testing wall outlets, industrial three-phase systems, or any AC-powered device. For example, checking an outlet ensures it provides the standard 120V or 230V, depending on your region.

4. Important Considerations: Always ensure your probes are securely connected and that you’re using a multimeter rated for the voltage level you’re testing. For industrial settings, a CAT III or CAT IV-rated device is recommended for safety.

Understanding the V~ symbol ensures you can confidently handle AC voltage measurements in both domestic and professional environments.

Understanding the V~ Symbol for Alternating Current (AC) Voltage H2: Practical Scenarios Where V and V~ Are Used

The V and V~ symbols have distinct uses across a wide range of electrical and electronic applications.

1. Household Testing:

V for DC Batteries: Use the V symbol to test the charge level of batteries in devices like remote controls or flashlights.
V~ for AC Outlets: Check wall sockets to verify they are delivering the standard voltage required for home appliances.
2. Automotive Diagnostics:

DC Voltage: Use the V mode to test the battery and alternator output. Ensuring the correct voltage is key to preventing vehicle malfunctions.
3. Industrial Applications:

AC Systems: In factories, use V~ to measure voltage across three-phase systems to ensure machinery operates within its specified voltage range.
4. Electronics Troubleshooting:

Voltage Drops: The V setting is ideal for checking voltage drops across components like resistors or diodes, helping pinpoint circuit inefficiencies.
5. Renewable Energy Systems: Use the V mode for solar panel voltage checks or to measure the output of DC-powered devices in off-grid systems.

These practical scenarios highlight the importance of understanding and using the V and V~ settings appropriately to ensure safe and accurate measurements.

Practical Scenarios Where V and V~ Are Used H2: Avoiding Misinterpretation of Voltage Symbols on a Multimeter

Misinterpreting multimeter symbols can lead to incorrect readings, damaged equipment, or even personal injury. Here’s how to avoid these pitfalls:

1. Double-Check the Mode: Always verify whether the multimeter is set to V or V~. Using the wrong mode for the type of voltage being measured can yield inaccurate results.

2. Understand Voltage Type: Know whether the circuit you’re testing uses AC or DC voltage. For example, household outlets are AC, while most batteries are DC.

3. Choose the Right Range: If your multimeter is manual-ranging, select a range higher than the expected voltage. An incorrect range can overload the device or result in an “OL” (overload) display.

4. Inspect the Probes: Ensure the probes are in good condition and securely connected. Damaged or loose probes can cause false readings.

5. Refer to the User Manual: For beginners, the multimeter’s user manual is an invaluable resource for understanding symbols and settings. Keep it accessible during your first few tests.

6. Test a Known Source: Before testing an unknown circuit, check the multimeter’s accuracy with a known voltage source, such as a 9V battery.

By following these tips, you’ll avoid common mistakes and gain confidence in interpreting multimeter symbols.

Conclusion

The V and V~ symbols on a multimeter are foundational for accurate voltage testing, whether you’re working with DC circuits in electronics or AC systems in industrial applications. Understanding the differences between these symbols and knowing how to use them ensures reliable measurements, enhances diagnostic accuracy, and prevents operational errors. For new engineers, mastering these basics is a vital step toward becoming proficient with multimeters and tackling real-world electrical challenges.
