What Is The Significance Of RMS In Multimeters?

Key Takeaway

RMS, or root-mean-square, is crucial in multimeters for measuring AC voltage and current. It calculates the effective or equivalent DC value of an AC waveform. This is important because AC signals often vary in shape, and RMS provides an accurate measure of their heating or power potential, regardless of the waveform.

A True RMS multimeter is essential for accurate readings of non-sinusoidal signals, like those from variable-frequency drives (VFDs), electronic ballasts, or modern HVAC systems. Without True RMS, measurements can be inaccurate for such complex signals. Standard RMS works only for pure sine waves, making True RMS multimeters the preferred choice in advanced electrical applications.

What Is RMS and How Does It Relate to AC Voltage?

RMS stands for Root Mean Square, a mathematical way of expressing the effective value of a fluctuating signal like AC voltage. Unlike direct current (DC), which flows steadily, AC voltage varies as a sinusoidal wave, alternating between positive and negative values.

Measuring the peak voltage (the highest point of the wave) doesn’t give a practical idea of the energy delivered over time. RMS solves this by calculating the equivalent DC value that would produce the same power in a resistive load.

For example, if an AC voltage has an RMS value of 230V, it delivers the same energy as 230V DC would over the same period. This makes RMS incredibly important for understanding the “real” power in electrical systems.

In multimeters, RMS measurements ensure that what you see on the display reflects the effective voltage or current, giving you an accurate picture of circuit performance.

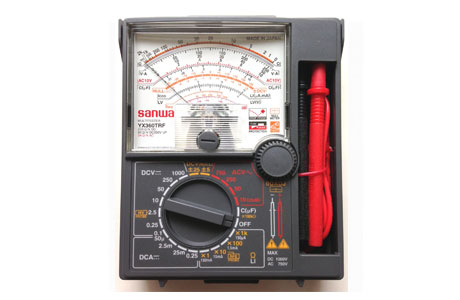

FAQ Image

Why RMS Measurements Are Critical in Electrical Work

RMS measurements are not just a technical detail—they are fundamental to the safe and efficient operation of electrical systems. Here’s why:

Accuracy in AC Circuits:
AC voltages and currents are rarely steady. By measuring RMS, you capture the true effective value, ensuring precise results, whether testing appliances or industrial machinery.

Power Calculations:
In electrical engineering, power is often calculated as
P=V×I. Without RMS values, these calculations would be misleading, especially for devices operating under AC power.

Safety Standards:
Electrical systems are designed based on RMS values. For instance, household sockets rated at 120V or 230V refer to RMS voltage. Using incorrect values could lead to improper designs and safety hazards.

Equipment Protection:
Electronic devices are sensitive to voltage levels. RMS measurements ensure you provide equipment with the right operating conditions, preventing damage caused by voltage surges or drops.

For engineers, especially those new to the field, adopting RMS measurements ensures you’re working with accurate data and adhering to industry standards.

RMS vs. Peak Voltage: Understanding the Difference

One of the most common questions about RMS is how it differs from peak voltage. Let’s clarify this with a comparison:

Peak Voltage:
This is the maximum value of the voltage wave, either positive or negative. While it’s important for understanding the limits of a system, it doesn’t reflect the effective energy delivered.

RMS Voltage:
This is the effective value that represents the equivalent DC voltage. It’s calculated as:
V RMS =V Peak × 1/√2

​For a sinusoidal wave, RMS voltage is approximately 70.7% of the peak voltage.

For example, if the peak voltage of a wave is 325V, the RMS value is roughly 230V.

Understanding this distinction is crucial because most electrical specifications are based on RMS values. When using a multimeter, knowing whether it’s measuring RMS or peak values can make the difference between accurate diagnostics and costly mistakes.

Understanding the Difference H2: How Multimeters Measure RMS Voltage and Current

Multimeters measure RMS values using advanced internal circuits, often employing one of two methods:

Averaging Method:
Basic multimeters estimate RMS by calculating the average rectified value of the AC waveform and scaling it to an approximate RMS value. While sufficient for pure sinusoidal waves, this method can be inaccurate for distorted or non-sinusoidal signals.

True RMS Method:
Advanced multimeters use True RMS calculations. These devices integrate the square of the waveform over time, calculate the mean, and take the square root to determine the RMS value. This method ensures precise measurements for any waveform, including square, triangular, and distorted waves.

True RMS multimeters are particularly useful in modern electrical systems where harmonics and non-linear loads can distort waveforms. For engineers working with variable frequency drives (VFDs) or power inverters, True RMS capability is indispensable.

When choosing a multimeter, understanding its RMS measurement method can guide you to the right tool for your needs.

How Multimeters Measure RMS Voltage and Current H2: Common Applications of RMS in Electrical and Electronics Testing

RMS measurements are vital across a range of applications. Here are a few scenarios where they play a critical role:

Household Electrical Testing:
Electricians rely on RMS values to test wall sockets, light fixtures, and appliance connections, ensuring they meet standard voltage ratings.

Industrial Equipment Maintenance:
In industries, machines powered by AC motors or generators depend on RMS voltage and current for optimal performance. Accurate RMS measurements prevent overloading and equipment failure.

Power Quality Analysis:
RMS values help in diagnosing issues like voltage sags, swells, or harmonics in power distribution systems.

Audio and Signal Processing:
In electronics, RMS values are used to measure signal strength, ensuring proper amplification and clarity in audio systems.

Renewable Energy Systems:
Solar inverters and wind turbines convert DC to AC power. RMS measurements validate the output, ensuring these systems supply consistent energy to the grid.

These applications highlight how RMS isn’t just a concept—it’s a practical tool for engineers, electricians, and technicians in diverse fields.

Conclusion

RMS measurements are the cornerstone of accurate electrical testing, providing the effective values needed to evaluate AC systems reliably. By understanding RMS, its role in multimeters, and its applications, you equip yourself with the knowledge to tackle real-world challenges with confidence.

For new engineers, mastering the significance of RMS ensures you can measure, analyze, and troubleshoot AC circuits effectively. Whether you’re working in residential settings, industrial maintenance, or advanced electronics, RMS is a concept you’ll rely on daily.
