What Is The Principle Used To Measure Temperature?

Key Takeaway

The principle used to measure temperature depends on the device. Most temperature gauges rely on thermal expansion, where materials expand or contract with temperature changes. For example, liquid-filled gauges measure pressure changes caused by liquid expansion.

Digital devices like thermocouples or RTDs measure temperature through electrical resistance changes. These principles ensure accurate and reliable temperature readings across various applications.

Overview of Measurement Principles

Temperature measurement involves converting changes in temperature into readable values using different principles. The primary measurement principles rely on physical properties that change with temperature. These include:

Thermal Expansion: Many temperature sensors rely on the expansion and contraction of materials as temperature increases or decreases. This principle is commonly seen in liquid-in-glass thermometers and bimetallic strip devices.

Heat Transfer: The movement of heat from one body to another is crucial in temperature measurement. As heat flows from a hot object to a cooler one, it causes changes in temperature that can be measured by thermocouples and infrared sensors.

Electrical Resistance: In modern temperature sensors, such as thermistors and RTDs, electrical resistance changes with temperature. These sensors convert resistance into an electrical signal, which can be used to calculate temperature.

Voltage Generation: Thermocouples generate a small voltage when subjected to temperature differences. This voltage is used to determine the temperature by comparing it with known calibration standards.

Each principle has its advantages and limitations, depending on the type of measurement and application. By understanding these principles, engineers and technicians can select the most suitable temperature measurement device for their needs.

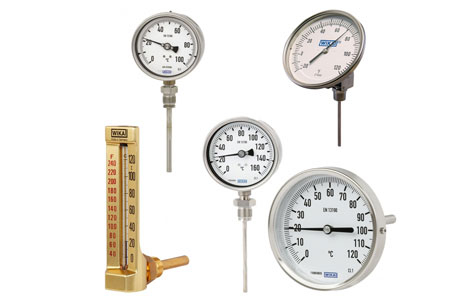

FAQ Image

Heat Transfer and Temperature Gauges

Heat transfer is one of the key principles used in temperature measurement. It refers to the process by which heat moves from a warmer object to a cooler one. In temperature measurement, heat transfer can be monitored using devices such as infrared sensors, thermocouples, and RTDs (Resistance Temperature Detectors). These devices detect the flow of heat and use it to determine the temperature of a substance or environment.

For instance, infrared temperature gauges detect the infrared radiation emitted by an object. The amount of infrared radiation corresponds to the object’s temperature. This principle is widely used in non-contact temperature measurement, especially in industrial applications where it is difficult or unsafe to directly measure the temperature of an object.

Thermocouples also rely on heat transfer but do so by measuring the voltage generated when two different metals are heated. This voltage is directly related to temperature and can be used to monitor high-temperature systems such as furnaces or engines.

In systems where temperature needs to be continuously monitored, RTDs measure the change in electrical resistance caused by heat transfer, providing precise and reliable temperature readings.

Mechanical vs. Electrical Measurement Methods

Temperature measurement methods can be broadly classified into mechanical and electrical categories. Both approaches rely on physical properties that change with temperature, but they differ in how the changes are detected and measured.

Mechanical temperature measurement uses principles like thermal expansion and bimetallic strips to measure temperature. These gauges rely on the physical expansion or movement of materials when heated. For example, liquid-in-glass thermometers use the expansion of liquid (mercury or alcohol) to measure temperature. The liquid expands when heated and rises along a graduated scale, providing a direct reading of the temperature.

On the other hand, electrical temperature measurement uses sensors like thermistors, RTDs, and thermocouples that detect changes in electrical properties (such as resistance or voltage) caused by temperature fluctuations. These sensors are often more precise than mechanical devices and can be easily integrated into automated systems. For instance, an RTD is made of pure platinum, and its resistance increases with temperature. By measuring this resistance, the temperature can be accurately determined.

While mechanical methods are simpler and more cost-effective, electrical measurement methods are often preferred in modern systems due to their high accuracy, repeatability, and ease of integration into control systems.

Principles Used in Modern Temperature Sensors

Modern temperature sensors rely on advanced principles such as electrical resistance, thermoelectric effects, and infrared radiation. These principles are used in RTDs, thermistors, thermocouples, and infrared sensors, offering highly accurate and reliable temperature measurements for a wide range of applications.

RTDs (Resistance Temperature Detectors) use the principle that the electrical resistance of certain metals (commonly platinum) increases with temperature. This change in resistance is directly proportional to temperature, allowing for precise measurement over a wide range.

Thermistors are similar to RTDs but typically use ceramic materials instead of metals. These devices are highly sensitive to temperature changes and provide quick responses, making them ideal for applications where rapid temperature measurements are necessary.

Thermocouples, on the other hand, work based on the Seebeck effect, where a voltage is generated when two different metals are heated. This voltage is then measured and converted into a temperature reading. Thermocouples are especially useful for high-temperature applications and are often found in industrial settings.

Infrared temperature sensors operate on the principle of detecting infrared radiation emitted by objects. The amount of radiation corresponds to the object’s temperature. These sensors are often used for non-contact temperature measurements in industries such as food processing, medical applications, and HVAC.

Each of these sensors relies on a specific principle to accurately measure temperature, and choosing the right sensor depends on the application’s requirements, such as the range of temperatures, precision, and the environment.

Factors Affecting Measurement Accuracy

Several factors can influence the accuracy of temperature measurements. Environmental conditions such as ambient temperature, pressure, and humidity can affect the performance of temperature sensors. For example, an increase in ambient temperature can cause certain sensors to produce inaccurate readings, especially if the sensor is not calibrated to account for these changes.

The type of sensor also plays a significant role in accuracy. Thermocouples, for instance, are highly reliable for extreme temperature measurements but may suffer from errors if the materials used are not of high quality. RTDs are typically more accurate than thermocouples at lower temperatures, but they may be affected by factors like sensor wear and environmental contaminants.

In industrial environments, electromagnetic interference (EMI) can also disrupt sensor signals, causing inaccurate readings. This is particularly common in digital temperature gauges. To mitigate such issues, temperature sensors are often shielded, and manufacturers design them to resist electrical interference.

Lastly, calibration is a critical factor in ensuring measurement accuracy. Without regular calibration, even the best temperature sensors can become unreliable. It is important to periodically calibrate sensors to maintain their accuracy, especially in precision applications such as medical devices or high-tech manufacturing.

Conclusion

In conclusion, the principle used to measure temperature is foundational to the development and application of temperature gauges. Temperature measurement is based on the predictable change in a physical property of a material or device, corresponding to its temperature. Common principles include the expansion of liquids in thermometers, the voltage changes in thermocouples, and the resistance variations in resistance temperature detectors (RTDs).

These principles allow for accurate and reliable temperature readings across a wide range of conditions, supporting diverse applications from industrial processes to household appliances. Understanding the underlying principles enables better selection and utilization of temperature measurement devices, ensuring precision and consistency in monitoring and control tasks critical to safety, quality, and efficiency.
