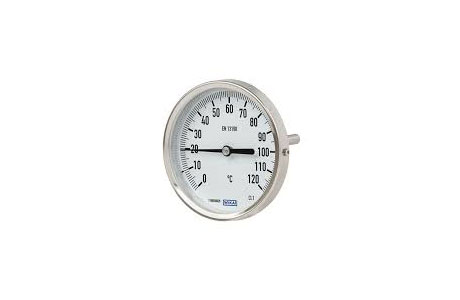

What Is The Principle Of Temperature Gauge?
Key Takeaway
A temperature gauge works on the principle of thermal expansion or resistance change. When the temperature of a system changes, materials like liquids, gases, or metals expand, contract, or alter their resistance. This change is then displayed as a temperature reading.
For example, bi-metallic strips bend with temperature variations, while liquid-filled gauges respond to pressure changes in the bulb or tube. Digital gauges use sensors like thermocouples or RTDs to measure temperature changes. This principle ensures reliable and accurate temperature monitoring across applications.
Overview of Temperature Gauge Principles
At the heart of every temperature gauge is a fundamental principle: the physical properties of materials change with temperature. These changes are measured and then translated into a readable output that provides the temperature of a system or object. Different types of temperature gauges use different methods to detect these changes, but they all rely on one or more of the same basic principles.
The most common principles include thermal expansion, changes in pressure, and changes in electrical properties. In thermal expansion, materials like metals expand when heated, and this expansion can be measured. In pressure-based gauges, heating a fluid causes it to expand, which is measured as pressure changes. Temperature gauges may also use sensors whose electrical resistance varies with temperature, such as thermocouples and resistance temperature detectors (RTDs). These principles help convert temperature changes into useful data that engineers can rely on.
Thermal Expansion and Its Role
Thermal expansion plays a significant role in many temperature gauges. As substances, especially metals, heat up, they expand. This is a simple yet effective principle used in mechanical temperature gauges, such as bimetallic strip gauges. These gauges rely on the fact that when the temperature changes, the bimetallic strip – made from two metals with different expansion rates – bends. The amount of bending is proportional to the temperature change, which moves a pointer on a dial to indicate the temperature.
Similarly, in liquid-in-glass thermometers, the liquid inside the glass expands as it heats up, rising along the calibrated scale. The principle of thermal expansion is also used in bimetallic temperature switches that can trigger mechanical actions, such as opening or closing a valve. Thermal expansion is a simple, direct, and reliable principle that has been employed in temperature measurement for centuries.
Pressure Mechanisms in Gauges
Another key principle used in temperature gauges involves pressure. Some temperature gauges, particularly filled system gauges, operate based on changes in the pressure of a gas or liquid when it is heated. As the temperature increases, the fluid or gas inside the sensor expands, leading to a rise in pressure. This pressure change is then transmitted to a pointer or digital readout, providing a direct reading of the temperature.
The mechanism behind this is based on Boyle’s Law and Charles’s Law, which describe the behavior of gases under different temperature and pressure conditions. These laws state that as temperature increases, the pressure of a gas in a closed system also increases, provided the volume remains constant. This principle is used in pressure-based temperature gauges to give accurate readings even in extreme environments.
Types of Sensors Used in Gauges
Temperature gauges use various types of sensors, each relying on different principles to measure temperature. The most common sensors include:
1. Thermocouples – These sensors consist of two different metal wires joined at one end. When heated, they generate a small electrical voltage that can be measured and converted into a temperature reading. Thermocouples are widely used in industrial applications because they can measure a broad range of temperatures.
2. Resistance Temperature Detectors (RTDs) – RTDs measure temperature by detecting changes in electrical resistance. When temperature increases, the resistance of a material (usually platinum) changes predictably. This allows for precise and stable temperature measurements.
3. Thermistors – Similar to RTDs, thermistors change their resistance with temperature, but they are made from ceramic materials and are more sensitive to temperature changes over a smaller range.
4. Infrared Sensors – Infrared sensors detect the infrared radiation emitted by objects. This principle is used in non-contact temperature gauges, allowing them to measure the temperature of an object from a distance without touching it.
Each sensor type has its strengths and is chosen based on the specific temperature range, accuracy, and environment in which the gauge is used.
Key Factors Affecting Accuracy
Several factors can affect the accuracy of temperature gauges. One key factor is calibration. Over time, temperature gauges can drift from their calibrated settings due to wear and tear, environmental conditions, or prolonged use. Regular calibration is essential to ensure that the gauge continues to provide accurate readings.
Another factor affecting accuracy is sensor quality. Low-quality or poorly maintained sensors can lead to inaccurate measurements, which could compromise safety or performance. For instance, corrosion, wear, or contamination can degrade a sensor’s response to temperature changes.
Environmental factors such as extreme temperatures, humidity, and vibration can also impact accuracy. Some temperature gauges may not function well in harsh conditions or may require special housings to protect the sensor and ensure accurate readings.
Finally, installation plays a crucial role in the accuracy of temperature gauges. Improper placement of sensors or gauges can result in skewed readings. For example, placing a sensor too close to a heat source or in a drafty area may cause it to read inaccurately.
Conclusion
In conclusion, the principle of a temperature gauge revolves around its ability to accurately measure and display temperature readings. This is achieved through a combination of mechanical, electronic, or digital components, which convert temperature changes into readable data. Temperature gauges are crucial in various industries, including automotive, HVAC, and manufacturing, to ensure processes run efficiently and safely.
Temperature gauges are designed to provide reliable and precise measurements. Their effectiveness depends on proper calibration and regular maintenance. Understanding the principle of operation helps in selecting the appropriate gauge for specific applications. By ensuring accurate temperature readings, these devices contribute significantly to operational efficiency, safety, and quality control across different sectors.
