What Is The Principle Of A Voltmeter?

Key Takeaway

A voltmeter works on Ohm’s Law, which states that voltage (V) is directly proportional to current (I) and resistance (R). It measures the voltage difference between two points in a circuit. To do this, it has high internal resistance, allowing only a small current to flow through, preventing interference with the circuit. The reading is based on the V=IR formula, where the voltage is calculated from the tiny current passing through the internal resistance.

Voltmeter connections are always in parallel with the circuit to measure the potential difference accurately. For DC voltmeters, the positive terminal connects to the higher potential point, while the negative connects to the lower. For AC voltmeters, polarity doesn’t matter. The voltage is displayed using an analog needle or a digital screen. This principle ensures accurate, minimal-impact measurements in any circuit.

The Basics of Voltage Measurement: What Is a Voltmeter?

At its core, a voltmeter measures electric potential difference, commonly referred to as voltage. Voltage is the driving force behind the flow of current in a circuit, making it a key parameter in electrical systems.

A voltmeter is connected in parallel to the component or section of the circuit where the voltage needs to be measured. This parallel connection ensures the voltmeter doesn’t alter the circuit’s functionality.

There are two main types of voltmeters: analog and digital. Analog voltmeters use a moving needle to indicate voltage, while digital voltmeters (DVMs) provide a precise numerical display.

Voltage measurements are crucial for diagnosing issues, verifying power supply levels, and testing components. For engineers, a voltmeter is not just a tool; it’s a window into the behavior of electrical systems.

FAQ Image

What Is a Voltmeter? H2: Construction and Key Components of a Voltmeter

The construction of a voltmeter is a brilliant combination of simplicity and precision. Here are its key components:

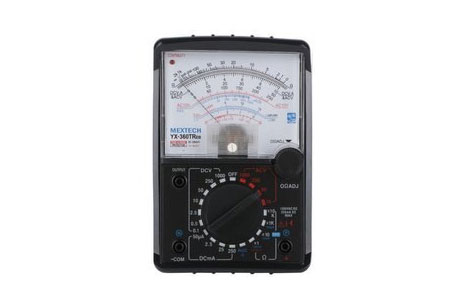

Moving Coil Meter (for analog voltmeters): A coil wound on a metallic core rotates in the presence of a magnetic field, causing the needle to deflect and indicate voltage.

Resistor: A high-resistance element is included to ensure the voltmeter draws minimal current from the circuit. This prevents the voltmeter from influencing the circuit’s operation.

Digital Display (for DVMs): Modern voltmeters feature an LCD or LED screen for displaying voltage readings in real time.

Input Terminals: These allow the connection of probes to measure voltage at specific points in the circuit.

Power Source: Digital voltmeters require batteries or external power to operate, while analog models are self-sufficient.

The primary design goal of a voltmeter is to minimize its impact on the circuit. High internal resistance ensures accurate voltage readings without drawing significant current.

Understanding these components helps new engineers appreciate the tool’s functionality and troubleshoot issues like incorrect readings or probe malfunctions.

Construction and Key Components of a Voltmeter H2: Working Principle: How Voltage Is Measured Across a Circuit

The principle behind a voltmeter is straightforward—it measures the potential difference between two points in a circuit. Let’s break it down:

When you connect a voltmeter in parallel, its high internal resistance ensures minimal current flows through it. This design isolates the voltmeter from the circuit’s current path, preserving its integrity.

For analog voltmeters, the moving coil mechanism converts the voltage into mechanical motion, causing the needle to deflect. The deflection is proportional to the voltage applied, giving a visual representation of the value.

Digital voltmeters, on the other hand, use an Analog-to-Digital Converter (ADC) to transform the analog voltage into a digital signal. The microcontroller processes this signal and displays the voltage as a number.

The accuracy of a voltmeter depends on its resolution, internal resistance, and calibration. For new engineers, practicing voltage measurement on simple circuits is an excellent way to master the working principle. Always remember: proper connection is key to obtaining accurate readings.

Working Principle: How Voltage Is Measured Across a Circuit H2: Types of Voltmeters and Their Applications

Types of Voltmeters and Their Applications
Voltmeters come in different types, each suited for specific applications:

Analog Voltmeters: These are ideal for observing gradual voltage changes and are commonly used in educational settings. While less precise than digital models, they’re great for visualizing trends.

Digital Voltmeters (DVMs): With high accuracy and clear numerical displays, DVMs are the go-to choice for professionals. They’re used in everything from circuit troubleshooting to industrial diagnostics.

AC Voltmeters: Designed to measure alternating current voltages, they’re often used in power systems and electronics.

DC Voltmeters: These are used to measure direct current voltages, making them suitable for batteries and solar systems.

Peak Reading Voltmeters: These specialized tools measure the peak value of AC signals, often used in audio equipment and waveform analysis.

Each type has its strengths and limitations. For instance, analog voltmeters are more rugged but less precise, while digital ones are accurate but can be affected by electromagnetic interference.

Choosing the right voltmeter depends on the task. For a new engineer, starting with a versatile digital multimeter is a smart choice, as it can measure both voltage and other parameters like resistance and current.

How Voltage Is Measured Across a Circuit H2: Types of Voltmeters and Their Applications H2: Common Errors in Voltage Measurement and How to Avoid Them

Voltage measurement may seem simple, but even small mistakes can lead to inaccurate readings or damage to equipment. Here are some common errors and tips to avoid them:

Improper Connection: Connecting the voltmeter in series instead of parallel can result in incorrect readings and disrupt the circuit. Always ensure the probes are connected across the component being measured.

Using the Wrong Range: Selecting a range lower than the voltage being measured can overload the voltmeter. Modern digital voltmeters often have an auto-range feature, but manual models require careful range selection.

Neglecting Calibration: An uncalibrated voltmeter may provide erroneous readings. Regular calibration ensures accuracy, especially in industrial applications.

Damaged Probes or Leads: Faulty probes can lead to inconsistent measurements or no readings at all. Inspect and replace them as needed.

Ignoring Safety Precautions: Measuring high voltages without proper insulation or safety gear can be dangerous. Always use a voltmeter with a sufficient voltage rating and follow safety protocols.

By being mindful of these pitfalls, you can ensure accurate and reliable voltage measurements. As an engineer, developing good measurement habits early in your career will save time and prevent costly mistakes.

Conclusion

The principle of a voltmeter lies in its ability to measure potential difference accurately and efficiently. By connecting in parallel and leveraging high internal resistance, voltmeters minimize their impact on the circuit, ensuring precise readings.

From understanding its construction and working to recognizing common errors, mastering the voltmeter is an essential skill for any engineer. Whether you’re using an analog model for educational purposes or a digital one for professional diagnostics, the voltmeter is your trusted companion in the field of electrical engineering.

Make it a habit to practice using a voltmeter regularly, respect its limitations, and prioritize safety. With these principles in mind, you’ll be well-equipped to handle voltage measurements confidently and accurately.
