What Is The Principle Of A Multimeter?
Key Takeaway
The principle of a multimeter is based on measuring electrical properties like voltage, current, and resistance using specific internal mechanisms. For a digital multimeter, it converts electrical signals into voltage, processes it through digital circuits, and displays the result on a screen. When measuring resistance, it applies a small current to the circuit and calculates resistance using Ohm’s Law.
An analog multimeter works on the principle of a d’Arsonval galvanometer. It uses a Permanent Magnet Moving Coil (PMMC) mechanism where the needle moves proportionally to the current, indicating the value on a scale. Multimeters, whether digital or analog, can also measure other properties like frequency and capacitance, making them versatile tools for electrical testing and troubleshooting.
Basic Working Principle: Measuring Voltage, Current, and Resistance
At its core, a multimeter measures voltage, current, and resistance using fundamental electrical principles. Voltage is measured by connecting the multimeter in parallel with the circuit, allowing it to detect the potential difference across two points. This is achieved without altering the circuit’s overall operation.
To measure current, the multimeter is connected in series with the circuit. This configuration ensures all the current flows through the multimeter, allowing it to measure the flow rate of electrons accurately. Resistance, on the other hand, is measured by sending a small known current through a resistor and observing the voltage drop, applying Ohm’s Law to calculate the resistance value.
Modern multimeters often feature auto-ranging, which adjusts the measurement range automatically based on the input signal. This enhances usability, particularly for beginners. By following these basic principles, multimeters deliver precise readings for essential electrical parameters.
Measuring Voltage, Current, and Resistance H2: How Analog Multimeters Operate: Deflection Mechanism Explained
Analog multimeters operate using a moving coil galvanometer, a device that relies on electromagnetic deflection to measure current. When current passes through the coil, it generates a magnetic field that interacts with a fixed magnet. This interaction causes the coil—and the attached needle—to deflect, indicating the measurement on a calibrated scale.
Voltage measurements in analog multimeters are achieved by introducing a high-resistance series resistor to limit current flow, ensuring the device measures the potential difference without disrupting the circuit. Resistance measurements, on the other hand, involve an internal battery. The battery sends current through the resistor, and the needle’s deflection corresponds to the resistance value.
One of the key strengths of analog multimeters is their ability to provide a continuous reading, making them ideal for monitoring fluctuating signals. However, they require manual range selection and careful interpretation of the needle’s position, demanding precision and experience from the user. Despite being overshadowed by digital multimeters, their simplicity and reliability make analog multimeters a classic choice for specific applications.
How Analog Multimeters Operate: Deflection Mechanism Explained H2: Digital Multimeter Principles: Analog-to-Digital Conversion in Action

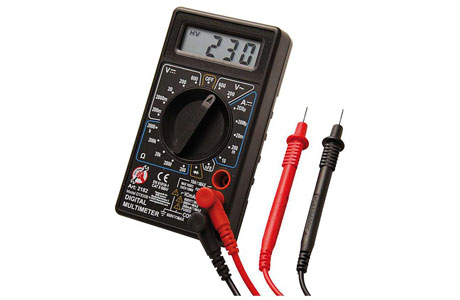

Digital multimeters (DMMs) revolutionized the field with their precision and ease of use. At the heart of a DMM lies an analog-to-digital converter (ADC), a component that transforms the analog electrical signals into digital data.
When measuring voltage, current, or resistance, the multimeter first converts the signal into a proportional voltage (if it’s not already). This voltage is then processed by the ADC, which converts it into a digital format that can be displayed on the LCD screen. The precision of this conversion process is a key factor in the multimeter’s accuracy.
Digital multimeters often include advanced features like auto-ranging, which automatically selects the optimal range for the measurement, and data hold, which freezes the displayed reading for convenience. These features make DMMs particularly user-friendly and suitable for a wide range of tasks.
By relying on solid-state electronics and digital processing, digital multimeters eliminate many of the errors associated with analog devices, such as parallax errors when reading scales. Their versatility and accuracy make them indispensable tools for modern electrical diagnostics.
Deflection Mechanism Explained H2: Digital Multimeter Principles: Analog-to-Digital Conversion in Action H2: Understanding Shunt and Series Resistance in Measurement
Shunt and series resistances play a crucial role in a multimeter’s ability to measure current and voltage accurately. For current measurement, a shunt resistor is placed parallel to the circuit being tested. This low-resistance component allows most of the current to bypass the sensitive measuring elements of the multimeter while still providing a small, proportional voltage drop for measurement.
In voltage measurements, a high-value series resistor is used. This resistor limits the current flowing into the multimeter, protecting its internal components while allowing accurate measurement of the potential difference.
For resistance measurement, the multimeter sends a small current through the resistor under test, measuring the resulting voltage drop. Based on Ohm’s Law (R=V/I), the device calculates the resistance.
Understanding the role of shunt and series resistors helps users appreciate the internal design of multimeters, which is focused on balancing accuracy, protection, and functionality. Proper use of these principles ensures reliable and repeatable measurements.
Digital Multimeter Principles: Analog-to-Digital Conversion in Action H2: Understanding Shunt and Series Resistance in Measurement H2: The Role of Internal Battery and Circuitry in Multimeter Functionality
The internal battery is an essential component of a multimeter, particularly for resistance and continuity testing. When measuring resistance, the battery provides the small current needed to pass through the resistor. The resulting voltage drop is then used to calculate the resistance value. Without a functional battery, these measurements would be impossible.
The circuitry inside a multimeter also includes voltage regulators, amplifiers, and protection mechanisms. Voltage regulators ensure consistent operation regardless of input fluctuations, while amplifiers boost weak signals for accurate measurement. Protection circuits, such as fuses and diodes, safeguard the device from overvoltage and incorrect connections, extending its lifespan.
In digital multimeters, microprocessors play a vital role in processing data and driving additional features like auto-ranging, continuity beeping, and real-time data logging. This integration of internal battery and sophisticated circuitry makes modern multimeters both versatile and reliable, enabling them to handle a variety of electrical diagnostics with ease.
Conclusion
Understanding the principles behind a multimeter isn’t just about appreciating its design—it’s about using it safely and effectively. From the electromagnetic deflection of analog multimeters to the precision of digital devices and the importance of shunt and series resistors, every aspect of its operation has been meticulously engineered.
By grasping these underlying concepts, engineers and technicians can make the most of their multimeters, ensuring accurate measurements and optimal performance in any task. A multimeter isn’t just a tool—it’s a bridge between theory and practice, empowering users to navigate the complexities of electrical systems confidently.
