What Is The Pressure For Pneumatic Actuators?

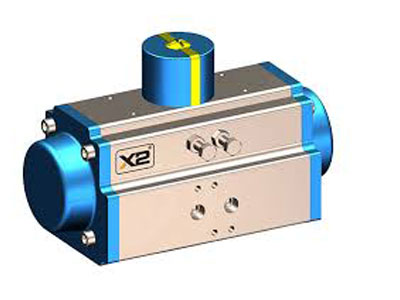

Key Takeaway
Pneumatic actuators typically operate at air pressures ranging from 30 to 120 pounds per square inch (psi), depending on the type of actuator. For spring return actuators, the pressure is between 40 to 120 psi. Double-acting actuators usually work with pressures between 30 to 120 psi. In industrial applications, the most common pressure is between 80 and 100 psi.
When selecting a pneumatic actuator, it’s crucial to consider the specific pressure requirements for the application. The load orientation and any moment loads (torque) applied to the cylinder also play an important role in determining the appropriate pressure. These factors ensure the actuator performs optimally within the given system.
Understanding the Role of Pressure in Pneumatic Actuators
At the heart of every pneumatic actuator is compressed air, a powerful energy source used to create mechanical motion. Pressure, measured in pounds per square inch (PSI) or bar, determines how effectively this energy is transmitted to the actuator.
When compressed air enters the actuator, it applies force to a piston or diaphragm, converting pressure energy into motion. The magnitude of this force is directly proportional to the applied pressure, making pressure control a critical factor.
Key Points About Pressure in Pneumatic Actuators:
Higher pressure results in greater force, enabling the actuator to move heavier loads.
Insufficient pressure can lead to performance issues, including slower response times and weaker output.
Maintaining steady pressure ensures consistent and predictable actuator performance.
Proper pressure management not only optimizes efficiency but also prolongs the lifespan of the actuator by reducing strain on internal components.
Typical Pressure Ranges for Pneumatic Actuators
Most pneumatic actuators operate within a pressure range of 60 to 120 PSI (4 to 8 bar). These values are well-suited for industrial environments where compressed air systems are commonly used.
Why This Range?
Safety and Compatibility: The pressure range aligns with standard air compressor outputs.
Efficiency: Higher pressures enable compact actuators to generate significant force.
Versatility: This range accommodates various applications, from precision tasks to heavy-duty operations.
Some specialized actuators may require higher pressures, up to 200 PSI, to meet specific force demands. Conversely, lightweight applications may use lower pressures, such as 20 to 40 PSI, to conserve energy.
Selecting the right pressure range is crucial for balancing performance and energy consumption. Operating outside recommended ranges can damage components or compromise safety.
How Pressure Affects Force and Motion
The relationship between pressure, force, and motion is fundamental in pneumatic systems. The force generated by a pneumatic actuator depends on the air pressure and the surface area of the actuator’s piston or diaphragm.
Force Calculation Formula: = ×
Where:
= Force (in Newtons or pounds-force)
= Pressure (in PSI or bar)
= Surface area of the piston (in square inches or square centimeters)
For example, doubling the pressure doubles the force output, assuming the piston size remains constant. This principle allows precise control of motion in applications ranging from robotic arms to conveyor systems.
Effects on Motion:
High Pressure: Enables rapid acceleration and handling of heavy loads.
Low Pressure: Suitable for delicate or precise movements, such as in electronics assembly.
Understanding this dynamic ensures the actuator operates efficiently while meeting application-specific force requirements.
Regulating Pressure for Optimal Performance
Pressure regulation is essential for achieving consistent and reliable actuator performance. This involves controlling airflow and pressure levels using devices like regulators, valves, and pressure switches.
Regulation Techniques:
Pressure Regulators: Maintain constant pressure despite fluctuations in supply.
Flow Control Valves: Adjust the speed and smoothness of actuator movement.
Pressure Switches: Automatically monitor and maintain preset pressure levels.
Improper regulation can lead to inefficiencies such as air wastage, erratic motion, or damage to the actuator. Regularly inspecting and calibrating pressure control devices ensures optimal operation.
By fine-tuning pressure settings, operators can tailor actuator performance to meet specific application needs, enhancing precision and productivity.
Safety Considerations for Operating at High Pressure
While higher pressures can improve actuator performance, they also introduce safety risks if not managed properly. Overpressure can cause seals to rupture or components to fail, posing a hazard to personnel and equipment.
Safety Measures:
Relief Valves: Prevent pressure from exceeding safe limits by venting excess air.
Durable Materials: Use actuators made from materials designed to withstand high pressures.
Routine Inspections: Regularly check for leaks, wear, and damage to ensure system integrity.
Training: Ensure operators are trained to handle high-pressure systems safely.
Adhering to safety standards, such as those outlined by OSHA or ISO, minimizes risks while maintaining performance. Remember, safety should never be compromised, even when striving for maximum efficiency.
Conclusion
Pressure is the driving force behind pneumatic actuators, dictating their performance, efficiency, and safety. Understanding typical pressure ranges, the relationship between pressure and force, and proper regulation techniques ensures optimal functionality across various industrial applications.
By maintaining appropriate pressure levels and adhering to safety protocols, pneumatic actuators can deliver reliable and efficient performance, enabling automation and precision in demanding environments.
