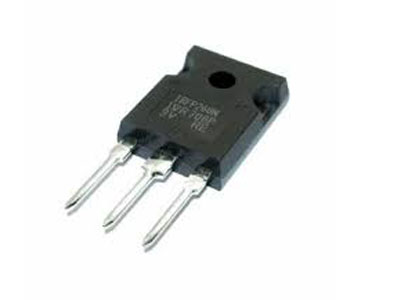

What is the full form of MOSFET?
Key Takeaway
The full form of MOSFET is “Metal-Oxide-Semiconductor Field-Effect Transistor.” It is a type of transistor widely used in electronic devices for switching and amplifying signals. Its structure consists of a metal gate, an oxide layer, and a semiconductor body, allowing it to control electrical current with high efficiency and speed.
MOSFETs are preferred in high-frequency applications like power supplies, audio systems, and RF amplifiers due to their fast switching capabilities. They are also more efficient than traditional transistors in many cases. However, they can be sensitive to voltage spikes and require proper handling to avoid damage. Despite some drawbacks, MOSFETs are a cornerstone of modern electronic advancements.
Explanation of Metal-Oxide-Semiconductor Field-Effect Transistor
The full form of MOSFET is Metal-Oxide-Semiconductor Field-Effect Transistor. It is one of the most important semiconductor devices used in modern electronics. MOSFETs are the building blocks of integrated circuits, enabling everything from basic switching to complex signal processing. Their widespread use stems from their efficiency, scalability, and ability to operate at high speeds.
A MOSFET operates by controlling the flow of current through a channel between two terminals, the source and the drain, using voltage applied to a third terminal called the gate. The “metal-oxide-semiconductor” in its name refers to the structure of its gate, which is insulated from the channel by a thin layer of oxide material. This insulated gate allows the MOSFET to control large currents with very low input power, making it highly efficient.
MOSFETs are widely used in applications ranging from microprocessors and memory chips to power converters and motor controllers. Their ability to switch rapidly and handle high frequencies makes them indispensable in both digital and analog circuits. Understanding MOSFETs is essential for anyone involved in electronics, as they play a crucial role in modern technology.
Structure and Working Principle of MOSFET
The structure of a MOSFET is deceptively simple but engineered for precision. It consists of three main layers: a semiconductor substrate, a gate terminal, and an insulating oxide layer. The substrate can be P-type or N-type, depending on whether the MOSFET is N-channel or P-channel.
1. Gate, Source, and Drain:
The source is where current enters, the drain is where it exits, and the gate controls the flow. The gate is insulated from the substrate by a thin oxide layer, ensuring minimal power loss.
2. Channel Formation:
When a voltage is applied to the gate, it creates an electric field that forms a channel between the source and drain. For an N-channel MOSFET, applying a positive gate voltage attracts electrons, allowing current to flow. For a P-channel MOSFET, a negative gate voltage allows the flow of holes.
3. Enhancement vs. Depletion Modes:
MOSFETs can operate in enhancement mode (normally off, requiring a gate voltage to conduct) or depletion mode (normally on, requiring a gate voltage to stop conduction).
This structure gives the MOSFET its unique ability to act as a voltage-controlled switch or amplifier. Its low power requirements and high switching speeds make it ideal for high-frequency applications like signal processing and power management.
Differences Between MOSFET and IGBT in Power Electronics
MOSFETs and IGBTs (Insulated Gate Bipolar Transistors) are both widely used in power electronics, but they serve different purposes due to their unique characteristics. Understanding their differences is essential for choosing the right device for a specific application.
1. Switching Speed:
MOSFETs excel in high-frequency applications due to their rapid switching capabilities. They are ideal for tasks like signal modulation and RF amplification. IGBTs, on the other hand, are slower but handle higher currents and voltages, making them better suited for industrial power systems.
2. Efficiency at Low Voltages:
At low voltages, MOSFETs are more efficient because of their lower conduction losses. IGBTs are more efficient at higher voltages, where their lower switching losses outweigh their higher conduction losses.
3. Current Handling:
IGBTs can manage larger currents, making them suitable for applications like motor drives and renewable energy inverters. MOSFETs are preferred for low-power devices such as microcontrollers and small power supplies.
4. Thermal Performance:
MOSFETs are better at dissipating heat in high-frequency applications, while IGBTs require additional cooling solutions due to their higher thermal resistance.
In summary, MOSFETs are best for high-speed, low-power applications, while IGBTs dominate in high-power systems. Both devices complement each other, with their roles determined by specific operational needs.
Applications of MOSFET in High-Frequency Circuits
MOSFETs are indispensable in high-frequency circuits due to their rapid switching capabilities and low power consumption. Their ability to operate efficiently at high speeds makes them a go-to choice in various applications.
1. Switching Power Supplies:
In DC-DC converters and AC-DC power supplies, MOSFETs control the voltage and current by switching at high frequencies. This ensures minimal energy loss and compact designs, which are critical for portable devices like laptops and smartphones.
2. RF Amplification:
MOSFETs are widely used in radio frequency (RF) applications, including wireless communication and broadcasting. Their ability to amplify high-frequency signals without distortion ensures clear and reliable communication.
3. Motor Control:
In devices like drones and electric vehicles, MOSFETs manage motor speed by rapidly switching the power supply. This precise control enhances performance and energy efficiency.
4. Signal Processing:
Audio and video signal processors use MOSFETs to amplify and filter signals. Their linearity and speed ensure high-quality output in consumer electronics like home theater systems.
5. Inverters:
Solar inverters rely on MOSFETs to convert DC power from panels into AC power for use in homes and industries. Their high efficiency minimizes energy losses, maximizing the output from renewable energy sources.
These applications highlight the versatility of MOSFETs in managing high-frequency operations with precision and reliability. Their role in modern electronics is unparalleled, driving innovation across industries.
Benefits and Drawbacks of MOSFET in Modern Designs
While MOSFETs offer numerous advantages, they also come with certain limitations. Understanding these factors is crucial for effective circuit design.
Benefits:
1. High Switching Speed:
MOSFETs can switch on and off in nanoseconds, making them ideal for high-frequency applications where speed is critical.
2. Low Power Consumption:
The insulated gate design requires minimal current, reducing power loss and improving efficiency in both analog and digital circuits.
3. Compact Size:
MOSFETs are available in incredibly small packages, allowing for miniaturization of electronic devices without sacrificing performance.
4. Wide Voltage Range:
They operate efficiently across a broad voltage range, from low-power devices to high-voltage systems, offering versatility in circuit design.
5. Thermal Efficiency:
MOSFETs generate less heat during operation, reducing the need for bulky cooling systems and enhancing reliability.
Drawbacks:
1. Higher Cost:
Compared to BJTs, MOSFETs are more expensive, which can be a limitation in cost-sensitive projects.
2. Susceptibility to Overvoltage:
MOSFETs are sensitive to voltage spikes, which can damage the thin oxide layer in the gate. Proper protection circuits are required to prevent failure.
3. Parasitic Capacitance:
At high frequencies, the parasitic capacitance in MOSFETs can affect performance, requiring careful design considerations.
Despite these drawbacks, the advantages of MOSFETs far outweigh their limitations. With proper circuit design and protection, they deliver exceptional performance in a wide range of applications.
Conclusion
The Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a cornerstone of modern electronics. Its unparalleled efficiency, speed, and versatility make it essential in applications ranging from microprocessors and power supplies to motor controllers and renewable energy systems. While it has limitations, proper design and application maximize its potential, ensuring reliable and efficient performance. Understanding MOSFETs is key to harnessing their power to drive innovation in technology, cementing their role as a pivotal component in electronic advancements.
