What Is The Difference Between Through Beam And Retroreflective Sensors?
Key Takeaway

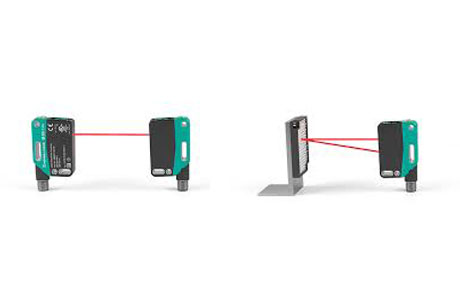

The main difference between through-beam and retroreflective sensors lies in their design and operation.
Through-beam sensors have a separate transmitter and receiver. These components are mounted opposite each other. The transmitter emits an infrared beam that travels directly to the receiver. When an object interrupts this beam, the sensor detects its presence or absence. This type of sensor is highly reliable for long-distance detection and in environments with dust or mist.
Retroreflective sensors combine the transmitter and receiver into one unit. They work with a reflector placed opposite the sensor. The transmitter sends out a light beam, which the reflector bounces back to the receiver. When an object blocks the light, the sensor detects it. This setup is simpler to install but may be less effective in detecting transparent or shiny objects.
Introduction to Sensor Types
Photoelectric sensors are essential tools in various industries for detecting the presence or absence of objects. Among the most commonly used types are through beam and retro-reflective sensors. Through beam sensors consist of a separate transmitter and receiver placed opposite each other. When an object interrupts the beam of light between the two, the sensor detects its presence. Retro-reflective sensors, on the other hand, integrate the transmitter and receiver into a single unit, working with a reflector to bounce the light back. This type is more compact and easier to align. Each sensor type has distinct advantages: through beam sensors offer high accuracy and long-range detection, while retro-reflective sensors are simpler to install and maintain.
Working Principle of Through Beam Sensors
Through beam sensors operate by emitting a light beam from the transmitter to the receiver. These two components are placed opposite each other, creating a direct path for the light beam. When an object interrupts this beam, the receiver detects the absence of light and triggers a response. This interruption can be used to signal various actions, such as stopping a conveyor belt or counting items. Through beam sensors are known for their high accuracy and long detection range, making them ideal for applications that require precise object detection over large distances.
These sensors are often used in environments where high reliability is crucial, such as in counting, positioning, and safety systems on production lines. For instance, in automotive manufacturing, through beam sensors ensure that parts are correctly positioned before welding or assembly, reducing errors and improving quality control. Their robust design allows them to operate effectively even in harsh industrial conditions, providing consistent performance with minimal maintenance.
Working Principle of Retro-Reflective Sensors
Retro-reflective sensors, on the other hand, integrate both the transmitter and receiver into a single unit. These sensors use a reflector to bounce the emitted light beam back to the receiver. When an object interrupts the light beam, the sensor detects the change and triggers a response. This design simplifies installation and alignment, as only the reflector needs to be positioned accurately, making it easier to set up compared to through beam sensors.
Retro-reflective sensors are versatile and can be used in applications where space is limited or where it is difficult to mount separate transmitter and receiver units. They are commonly used for detecting objects on conveyor belts and in packaging systems. For example, in the packaging industry, these sensors can detect the presence and position of boxes on a conveyor belt, ensuring that each box is correctly oriented and filled. Their ability to detect a wide range of objects, including transparent and shiny surfaces, adds to their flexibility and utility in various industrial settings.
These sensors are also preferred in environments where frequent changes to the detection area are needed, as they can be easily adjusted without needing to realign separate components. This ease of use, combined with their reliable performance, makes retro-reflective sensors a popular choice in many automated systems.
Comparative Analysis
When comparing through beam and retro-reflective sensors, several factors must be considered to determine the most suitable option for specific applications. Through beam sensors excel in offering higher accuracy and longer detection ranges. This makes them particularly effective in applications requiring precise and reliable detection over significant distances. However, these sensors require careful alignment of the transmitter and receiver, which can pose challenges in certain environments. Misalignment can lead to reduced accuracy or even operational failure, necessitating meticulous setup and frequent maintenance to ensure optimal performance.
On the other hand, retro-reflective sensors simplify installation and alignment due to their integrated design, needing only a reflector. Their compactness is advantageous in applications with limited space, making them versatile and easier to implement. However, they generally do not match the detection range or accuracy of through beam sensors. Additionally, highly reflective objects can sometimes cause false triggers in retro-reflective sensors, which may require adjustments or additional filtering techniques to mitigate these issues. Therefore, while retro-reflective sensors offer ease of use and flexibility, they may not always be suitable for high-precision or long-distance detection needs.
Use Case Scenarios
Through beam sensors are particularly well-suited for applications demanding high precision and long-distance detection. For instance, in automotive assembly lines, these sensors can accurately detect the presence of car parts to ensure correct positioning before assembly. This helps in reducing errors and improving overall product quality. Additionally, through beam sensors are commonly used in safety light curtains to protect operators from hazardous machinery. Their ability to provide reliable and accurate detection over large areas makes them indispensable for ensuring worker safety in industrial environments.
Retro-reflective sensors, meanwhile, are ideal for scenarios where space constraints and ease of installation are critical. In packaging systems, they effectively detect the presence of items on conveyor belts, ensuring that products are properly packed and labeled. Their compact design allows for easy integration into existing systems without requiring significant modifications. Furthermore, retro-reflective sensors are used in access control systems to detect the presence of individuals or objects at entry points. This application is particularly valuable in enhancing security and managing access in commercial and industrial facilities. The simplicity and versatility of retro-reflective sensors make them a practical choice for a wide range of applications where ease of installation and moderate detection ranges are sufficient.
Conclusion
In conclusion, the choice between through beam and retro-reflective sensors depends on the specific requirements of the application. Through beam sensors offer high accuracy and long-range detection, making them ideal for precise and reliable applications over large distances. However, they require careful alignment and are better suited for environments where this is feasible. Retro-reflective sensors are easier to install and align, making them suitable for applications with limited space or where ease of installation is essential. By understanding the differences and advantages of each sensor type, engineers can select the most appropriate solution for their specific needs, ensuring optimal performance and efficiency in their systems.
