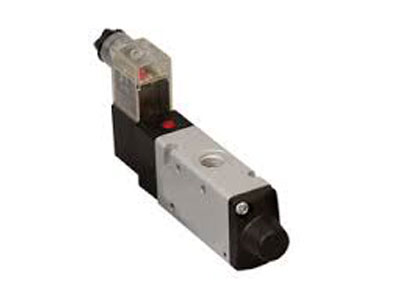

What Is The Difference Between Directional Valve And Solenoid Valve?
Key Takeaway
A directional valve is designed to control the direction, start, and stop of the flow of fluids within hydraulic or pneumatic systems. It directs the flow to different outlets, making it essential for complex operations in machinery, construction equipment, and industrial systems. Directional valves can come in various configurations, such as 2-way, 3-way, or 4-way, and are used to manage multiple flow paths to direct fluid effectively.
On the other hand, a solenoid valve operates as an on/off switch to control the flow of fluids by using an electrical coil to move the valve mechanism. It doesn’t control the direction of the flow but simply opens or closes a path, making it ideal for simpler applications where fluid flow needs to be regulated with minimal complexity. Solenoid valves are commonly found in household appliances, HVAC systems, and other automated systems for straightforward flow control.
Defining Directional Control Valves vs. Solenoid Valves
A directional control valve (DCV) is a valve designed to control the direction of fluid or air flow within a system. These valves can have multiple ports and positions (e.g., 3/2, 4/2, or 5/2 valves) to direct flow in specific ways, such as allowing fluid to flow to an actuator or stopping it entirely. DCVs are commonly used in pneumatic and hydraulic systems for controlling actuators, like cylinders or motors, in a precise and controlled manner.
A solenoid valve, on the other hand, is a type of valve that uses an electromagnet (the solenoid) to control its operation. Solenoid valves are typically electrically operated and used to automate the opening and closing of a valve in response to electrical signals. They can be used for controlling fluid or gas flow in systems requiring automation and precision, such as in HVAC systems, irrigation, or industrial automation.
While directional control valves can include solenoids as actuators, the term “solenoid valve” specifically refers to a valve where the movement is powered by an electrical coil.
Key Differences in Operation and Application
The main difference in operation between directional control valves and solenoid valves lies in their actuation methods:
Directional Control Valves: DCVs can be manually operated (by a lever or button) or electrically controlled (using solenoids or pilot air). They direct the flow of fluid or air by moving a valve spool or poppet between different positions to connect or disconnect different ports. These valves are used when you need to control the direction of flow in a system, such as in hydraulic or pneumatic actuators.
Solenoid Valves: These valves are specifically actuated by an electromagnetic coil (the solenoid), which moves a plunger inside the valve to open or close the flow path. Solenoid valves are ideal for systems requiring automated control or when a quick response to electrical signals is necessary. They are commonly used in fluid handling systems, such as in fluid dispensing or controlling compressed air in automated machinery.
In terms of application, directional control valves are ideal for situations where you need precise control over the direction of flow, such as in hydraulic presses, pneumatic actuators, and robotics. Solenoid valves are more commonly found in systems that require automatic operation, like irrigation systems, air conditioning systems, and automated production lines.
Pros and Cons of Each Valve Type
Both directional control valves and solenoid valves offer unique benefits, but they also come with limitations.
Directional Control Valves
Pros:
1. Versatile with multiple configurations (e.g., 3/2, 4/2, 5/2) for different flow needs.
2. Can be manually or electrically operated, offering flexibility in control.
3. Reliable and durable in high-flow and high-pressure applications.
Cons:
1. Manual operation may require additional effort or user intervention.
2. Can be more complex to design and integrate, especially when controlling multiple functions.
3. Mechanical failure may occur with manual or mechanically actuated valves.
Solenoid Valves
Pros:
1. Electrically operated for automated and precise control.
2. Quick response times, ideal for high-speed applications.
3. Available in compact sizes for easy integration into systems with space constraints.
Cons:
1. Limited to on/off control, making them less suitable for directional control in complex systems.
2. Can be susceptible to electrical issues or coil failure.
3. May not be ideal for systems that require high flow rates or pressures.
How to Choose Between a Directional Valve and a Solenoid Valve
Choosing between a directional control valve and a solenoid valve largely depends on the specific needs of your system. Here are some key factors to consider when making your choice:
1. Control Type: If you need to control the direction of fluid flow or air in a system (such as extending or retracting a cylinder), a directional control valve is the best choice. If you simply need to start or stop flow automatically, a solenoid valve would be ideal.
2. Automation: For systems that require automation and fast response times, a solenoid valve is the right choice due to its electrical actuation. If you need more nuanced control (such as switching between multiple positions or controlling pressure), a directional control valve is more suitable.
3. System Complexity: For simple on/off control in a relatively straightforward system, a solenoid valve is efficient. However, if your system involves complex actuation or multiple flow paths, directional control valves provide better flexibility and control.
4. Size and Flow Requirements: For applications requiring high flow rates or pressure handling, directional control valves may be better suited. Solenoid valves are typically more compact but may not handle larger flows or pressures as effectively.
Common Misconceptions About These Valves
There are several misconceptions that can cause confusion when distinguishing between directional control valves and solenoid valves.
1. All Solenoid Valves Are Directional: Some people believe that all solenoid valves control the direction of flow. In reality, solenoid valves typically control flow in a binary on/off manner and do not offer the directional control flexibility that directional valves do.
2. Directional Control Valves Are Always Electric: While many directional control valves are electrically operated using solenoids, there are also manually operated versions. This is an important distinction when selecting the appropriate valve for a given application.
3. Solenoid Valves Are Suitable for All Applications: Although solenoid valves are great for automated systems, they may not be suitable for all applications, especially those requiring high pressure or flow rates, where directional control valves would perform better.
Conclusion
In conclusion, the choice between a directional control valve and a solenoid valve depends on your specific system requirements. If you need to control the direction of flow or need multiple positions in your control system, a directional control valve is your best option. On the other hand, if your system requires simple, automated on/off control, a solenoid valve may be the more efficient choice. By understanding the differences in operation, advantages, and limitations of each valve type, you can make an informed decision to optimize your system’s performance.
