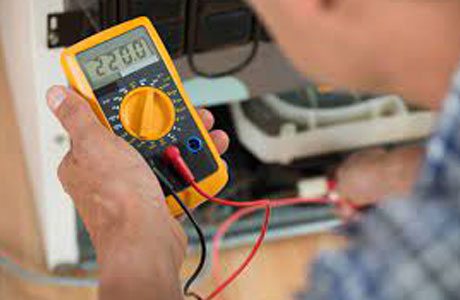

What Is The Difference Between DCV And ACV On A Multimeter?
Key Takeaway
The difference between DCV and ACV on a multimeter lies in the type of voltage they measure. DCV (Direct Current Voltage) is used to measure voltage from sources like batteries, solar panels, and other devices that provide constant, unidirectional current. On a multimeter, DCV is represented by a V with a solid and dashed line (⎓) above it.
ACV (Alternating Current Voltage) is used to measure voltage from sources like electrical outlets, appliances, and power grids, which operate with current that alternates direction. On a multimeter, ACV is symbolized by a V with a wavy line (~) above it.
Always ensure the correct setting is selected on the multimeter dial before measuring. DCV is ideal for testing electronics, while ACV is commonly used for household or industrial electrical systems.
Understanding DC Voltage (DCV): Basics and Applications
DC Voltage (DCV) refers to the constant flow of electrical energy in a single direction, often used in low-voltage systems.
1. What Is DC Voltage?
Direct Current (DC) voltage is steady and unchanging over time. It is commonly produced by sources like batteries, solar panels, and DC power supplies. Unlike Alternating Current (AC), which fluctuates, DC maintains a consistent polarity.
2. Applications of DCV:
DCV is widely used in electronic devices, automotive systems, and renewable energy setups. For example:
Batteries: Testing a 12V car battery ensures it delivers sufficient power.
Electronic Circuits: Verifying voltage levels across components helps identify faulty resistors, diodes, or capacitors.
Solar Panels: Measuring the DC output ensures proper energy generation and storage.
3. Multimeter Use:
When measuring DCV, select the DCV mode (V—), indicated by a straight line above dots. Polarity matters; reversing probes will show a negative reading.
DC voltage measurements are essential in applications requiring steady power and precise diagnostics.
Basics and Applications H2: Understanding AC Voltage (ACV): Basics and Applications
AC Voltage (ACV) represents the type of electricity most commonly found in households and industrial systems.
1. What Is AC Voltage?
Alternating Current (AC) voltage alternates in direction and amplitude over time, creating a sinusoidal waveform. This fluctuation makes AC ideal for transmitting power efficiently over long distances.
2. Applications of ACV:
ACV is the backbone of power distribution and industrial machinery. Common applications include:
Household Outlets: Wall sockets typically deliver ACV at 120V or 230V, depending on the region.
Industrial Equipment: Three-phase AC systems power heavy machinery and motors.
Generators: Portable generators output AC voltage to run appliances during outages.
3. Multimeter Use:
When measuring AC voltage, select the ACV mode (V~), represented by a wavy line. Polarity is irrelevant because AC alternates, but proper probe contact ensures accuracy.
AC voltage testing is critical for verifying the safety and functionality of power systems.
Understanding AC Voltage (ACV): Basics and Applications H2: How Multimeters Measure DCV and ACV
Multimeters operate differently when measuring DCV and ACV due to the distinct nature of these voltages.
1. Measuring DCV:
Steady Voltage: DCV is measured as a constant value, with the multimeter detecting the potential difference between two points in a circuit.
Probe Placement: Place the black probe on the lower potential (negative) and the red probe on the higher potential (positive).
Polarity Indication: If the probes are reversed, the multimeter displays a negative value.
2. Measuring ACV:
Fluctuating Voltage: ACV is measured as an average value called Root Mean Square (RMS), which represents the effective voltage.
No Polarity Concerns: Probes can be placed on either terminal since AC alternates direction.
True RMS Multimeters: For accurate measurements of non-sinusoidal waveforms, True RMS multimeters are required.
3. Shared Characteristics:
Both DCV and ACV measurements require good probe contact and range selection. Auto-ranging multimeters simplify this process, but manual models require setting a range slightly higher than the expected voltage.
Understanding how multimeters process these signals ensures more accurate measurements and better diagnostics.
Basics and Applications H2: How Multimeters Measure DCV and ACV Key Functional Differences Between DCV and ACV Modes
Although DCV and ACV measure voltage, their measurement methods and functionalities differ significantly.
1. Nature of Voltage:
DCV: Measures a constant voltage. Ideal for systems requiring steady power, such as batteries and electronic circuits.
ACV: Measures a fluctuating voltage. Suitable for power distribution systems and industrial equipment.
2. Probe Placement:
DCV: Polarity matters. Incorrect probe placement results in a negative reading.
ACV: Polarity doesn’t matter due to alternating current.
3. Range and Sensitivity:
DCV: Often involves lower voltage ranges, as seen in electronics or automotive applications.
ACV: Typically involves higher voltages, especially in industrial or household systems.
4. Measurement Challenges:
DCV: Sensitive to noise and interference in high-precision applications.
ACV: Requires True RMS multimeters for accurate readings of non-sinusoidal waveforms.
These differences highlight the importance of selecting the correct mode for each type of voltage measurement.
How Multimeters Measure DCV and ACV Key Functional Differences Between DCV and ACV Modes H2: Tips for Accurate DCV and ACV Measurements
Accurate measurements depend on following best practices and understanding multimeter functions.
1. Confirm the Mode:
Before testing, verify whether the multimeter is set to DCV or ACV. Using the wrong mode can result in inaccurate readings.
2. Choose the Right Range:
For manual multimeters, select a range higher than the expected voltage.
Auto-ranging models adjust automatically, simplifying the process.
3. Inspect Probes and Connections:
Ensure the probes are in good condition and securely connected to the multimeter and test points. Loose connections can lead to erratic readings.
4. Test Known Sources:
Check the multimeter’s accuracy by testing a known voltage source, such as a 1.5V battery (DCV) or a wall socket (ACV).
5. Avoid Interference:
For DCV, shield the circuit from external noise. For ACV, minimize the influence of nearby electromagnetic fields to ensure accuracy.
6. Follow Safety Protocols:
When working with high voltages, wear insulated gloves and use a multimeter rated for the application (e.g., CAT III or CAT IV).
By following these tips, you’ll ensure reliable and precise measurements for both DC and AC voltages.
Conclusion
The distinction between DCV and ACV on a multimeter is fundamental for accurate electrical testing. DCV measures steady, unchanging voltages in applications like batteries and electronics, while ACV captures fluctuating voltages common in household and industrial power systems. Understanding how multimeters process these signals, recognizing their functional differences, and following best practices ensures precise and reliable measurements. For engineers and technicians, mastering these basics is crucial for effective diagnostics and troubleshooting in a variety of electrical applications.
