What Is The Difference Between Analog And Digital Multimeters?
Key Takeaway
The main difference between analog and digital multimeters lies in how they display measurements. Analog multimeters use a needle that moves across a scale to indicate the value. They are ideal for monitoring gradual changes in readings but require more skill to interpret accurately. Analog models are usually more durable and less expensive.
Digital multimeters, on the other hand, display measurements as exact numbers on a screen, making them easier to read and more accurate. They often include advanced features like auto-ranging, temperature measurement, and frequency testing. While analog multimeters are better for certain specialized tasks, digital multimeters are the preferred choice for most users due to their precision and convenience.
Overview of Analog and Digital Multimeters
Analog and digital multimeters share the same primary purpose—measuring voltage, current, and resistance—but their design and operation differ significantly.
Analog Multimeters: These devices use a moving needle on a calibrated scale to display measurements. Introduced decades ago, analog multimeters are known for their simplicity and reliability. Their smooth needle movement makes them ideal for observing fluctuations in readings.

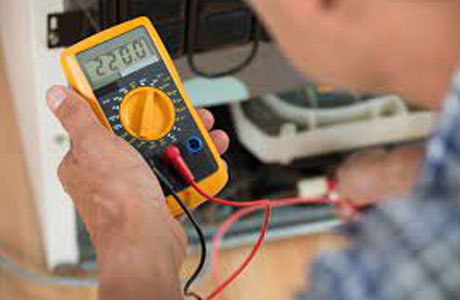

Digital Multimeters (DMMs): Digital multimeters have become the industry standard due to their precision and ease of use. They feature a digital display, often an LCD or LED screen, that shows exact numerical readings. Many DMMs also include advanced features like auto-ranging, data logging, and connectivity options.
While both types serve the same core purpose, their functionality, accuracy, and applications vary widely. Understanding these distinctions is crucial for selecting the right tool for your work.
Key Differences in Functionality and Design
The differences between analog and digital multimeters start with their functionality and design.
Display: Analog multimeters rely on a needle and scale, which can be challenging to read, especially for beginners. In contrast, digital multimeters show precise numerical values on a clear screen, making them easier to use.
Power Source: Analog multimeters don’t require a battery for basic functions like resistance measurement, whereas digital multimeters need a power source for their display and features.
Durability: Analog multimeters are mechanically robust, with fewer components that can fail. Digital multimeters, while generally durable, are more sensitive to drops or extreme conditions.
Features: Digital multimeters often include auto-ranging, which automatically selects the correct measurement range. They also offer additional functions like frequency, temperature, and capacitance measurements—features not typically found in analog models.
The choice between analog and digital multimeters often comes down to the complexity of the task at hand. While analog models excel in simple, real-time observations, digital ones are more versatile and user-friendly.
Accuracy and Precision: Which One Is Better?
When it comes to accuracy and precision, digital multimeters outperform their analog counterparts.
Analog Multimeters: While reliable for basic measurements, analog multimeters are less precise due to factors like parallax errors. For instance, slight misalignment when reading the needle can lead to inaccuracies. They also lack the fine resolution needed for measuring small voltages or resistances.
Digital Multimeters: These devices provide exact numerical readings with high resolution, often up to four decimal places. For applications requiring precise measurements—such as testing sensitive electronic components or calibrating circuits—DMMs are the clear choice.
However, analog multimeters have a unique advantage in displaying trends or fluctuations. For example, when monitoring a varying current, the smooth motion of the needle can offer better real-time feedback than a digital readout.
In most cases, though, the superior accuracy and ease of use of digital multimeters make them the preferred option for both professionals and beginners.
Which One Is Better? H2: Usability and Readability: Analog Scales vs. Digital Displays
The usability of a multimeter depends largely on how its readings are presented and interpreted.
Analog Scales: Analog multimeters require users to read and interpret measurements from a scale. This demands some skill, as even a slight misreading can result in errors. Despite this, analog scales are excellent for visualizing trends or observing changes in real time, such as monitoring a gradually increasing voltage.
Digital Displays: Digital multimeters simplify the user experience with easy-to-read numerical displays. Features like backlit screens and large fonts make them ideal for working in low-light conditions or reading complex data quickly. Some models even include bar graphs to mimic the functionality of analog needles, combining precision with trend analysis.
Ease of Use: Digital multimeters are generally more user-friendly, with features like auto-ranging and intuitive buttons. Analog multimeters, while straightforward, require a basic understanding of scales and ranges, which can be daunting for beginners.
For engineers who value clarity and convenience, digital displays offer a clear advantage. However, analog scales remain relevant for specific tasks requiring real-time visual feedback.
Usability and Readability: Analog Scales vs. Digital Displays H2: Applications Best Suited for Analog and Digital Multimeters
The choice between analog and digital multimeters often comes down to the application.
Analog Multimeters: These are best suited for tasks requiring real-time monitoring of fluctuating signals. For example, in automotive diagnostics or certain industrial applications, observing the needle’s motion can provide valuable insights. Analog multimeters are also ideal for environments where durability and simplicity are key, such as fieldwork in rugged conditions.
Digital Multimeters: These are the go-to tools for precision tasks. In electronics, where exact measurements are critical, a DMM ensures accurate results. They’re also preferred in advanced diagnostics, such as testing complex circuits, analyzing frequency, or measuring capacitance. With features like data logging and connectivity, digital multimeters excel in applications requiring detailed analysis and reporting.
Hybrid Use: Some professionals keep both types on hand, using analog multimeters for trend visualization and digital ones for precision work.
Understanding the strengths of each type ensures you choose the right multimeter for your specific needs, whether it’s basic troubleshooting or advanced diagnostics.
Conclusion
Analog and digital multimeters serve the same purpose but cater to different needs. Analog models offer simplicity, durability, and excellent trend visualization, making them ideal for certain field applications. Digital multimeters, on the other hand, provide superior accuracy, advanced features, and user-friendly interfaces, making them the preferred choice for most professionals. By understanding these differences, you can select the right multimeter to match your requirements and excel in your work.
