What Is PV, SV, And MV?

Key Takeaway

PV, SV, and MV are crucial terms in process control systems. PV stands for Process Variable, which is the current value of the parameter being measured and controlled, like temperature, pressure, or humidity. SV, or Set Value, is the desired value you want the process variable to reach and maintain. MV stands for Manipulated Variable, which is the input that the controller adjusts to influence the PV.

For example, in a temperature control system, the PV is the current temperature, the SV is the target temperature, and the MV is the power supplied to the heater. The controller continuously adjusts the MV to minimize the difference between the PV and SV, ensuring accurate and stable control. Understanding these terms helps effectively manage and optimize various control processes.

Definition of Process Variable (PV)

As a newly joined engineer in the industry, one of the first things you need to understand are the key components of control systems: PV, SV, and MV. These abbreviations stand for Process Variable, Set Value, and Manipulated Variable, respectively. Each plays a critical role in ensuring that industrial processes run smoothly and efficiently. By understanding these terms and how they interact, you’ll be better equipped to work with control systems and troubleshoot any issues that arise.

The Process Variable (PV) is a key concept in any control system. It represents the actual value of the parameter being monitored and controlled. For instance, in a temperature control system, the PV would be the current temperature as measured by a sensor. This real-time data is crucial because it provides the information needed to make adjustments and maintain the desired conditions. An accurate and reliable PV is essential for effective process control, as it directly influences the decisions made by the control system.

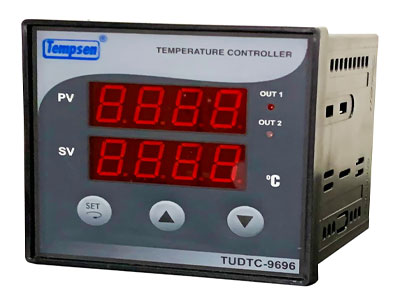

FAQ Image

Definition of Set Value (SV)

The Set Value (SV), also known as the set point, is the target value that the system aims to maintain. In our temperature control example, the SV would be the desired temperature you want to achieve. This value is set by the operator or the control system itself, depending on the application. The SV serves as a benchmark for the control system, guiding its actions to ensure that the process variable matches this target as closely as possible. Setting an appropriate SV is crucial for optimal system performance and efficiency.

Determining the correct SV involves understanding the process requirements and desired outcomes. It might require some experimentation and adjustments to find the ideal SV that balances performance, efficiency, and safety. The SV can be dynamic, changing based on different operating conditions or external factors. Advanced control systems can adjust the SV in real-time to optimize performance continuously.

Definition of Manipulated Variable (MV)

The Manipulated Variable (MV) is the variable that the control system adjusts to influence the process variable. In the context of temperature control, the MV could be the power supplied to a heater or cooler. By manipulating this variable, the control system can bring the process variable closer to the set value. The MV is the tool through which the control system exerts its influence, making it a vital component in achieving and maintaining the desired process conditions. Understanding how to effectively adjust the MV is key to mastering process control.

The MV must be adjusted carefully to avoid oscillations or overshooting the desired set point. Fine-tuning the MV often involves understanding the process dynamics and how quickly or slowly the system responds to changes. Engineers use control algorithms, such as PID (Proportional-Integral-Derivative) controllers, to calculate the optimal adjustments needed for the MV. These algorithms continuously evaluate the difference between the PV and SV and determine the necessary corrections.

Role of PV, SV, and MV in Temperature Control

In temperature control, the interaction between PV, SV, and MV is critical. The PV provides the current temperature reading, the SV is the desired temperature, and the MV is the mechanism (like a heater or cooler) that the system adjusts to reach the SV. For example, if the PV indicates that the temperature is lower than the SV, the control system will increase the MV (e.g., turning up the heater) to raise the temperature. Conversely, if the PV is higher than the SV, the system will decrease the MV (e.g., reducing the heater’s power) to lower the temperature. This feedback loop ensures that the temperature remains within the desired range, providing a stable and controlled environment.

In industrial applications, maintaining precise temperature control is crucial for product quality and safety. For instance, in chemical manufacturing, specific reactions require precise temperature conditions to proceed correctly. Any deviation from the set point can lead to incomplete reactions or dangerous situations. Therefore, the control system must be reliable and responsive, ensuring that the PV stays as close to the SV as possible.

How PV, SV, and MV Interact

The interaction between PV, SV, and MV forms the core of any control system. The control system continuously monitors the PV, comparing it to the SV. When there is a discrepancy between the PV and the SV, the system adjusts the MV to correct the difference. This process, known as feedback control, is dynamic and ongoing. The speed and accuracy of these adjustments depend on the design and tuning of the control system. Proper tuning ensures that the system responds quickly and effectively without overshooting or causing instability. Understanding these interactions and how to fine-tune them is essential for effective process control.

For a robust control system, it’s important to have well-tuned control parameters. Engineers often use a trial-and-error approach to find the optimal settings for PID controllers. This involves adjusting the proportional, integral, and derivative gains to achieve the desired response. Too high or too low gains can lead to instability or sluggish performance. By understanding the process dynamics and the control system’s behavior, engineers can optimize these parameters to ensure smooth and efficient operation.

Conclusion

Grasping the concepts of PV, SV, and MV is fundamental for working with control systems in any industrial setting. These elements form the basis of control systems, ensuring processes run smoothly and efficiently. Understanding how the process variable (PV), set value (SV), and manipulated variable (MV) interact equips you to troubleshoot, design, and optimize control systems. This knowledge is crucial for maintaining stability and efficiency in industrial processes.

In summary, the PV provides real-time feedback, the SV sets the target, and the MV makes adjustments to align the PV with the SV. Mastering these concepts enhances your ability to manage effective control systems, contributing to the success and safety of industrial operations.
