What Is PID Control Of Temperature?

Key Takeaway

PID control of temperature uses a PID controller to regulate and maintain a desired temperature. PID stands for Proportional, Integral, and Derivative, which are three control actions used to adjust the system.

The Proportional part responds to the current temperature difference, the Integral part addresses past temperature errors, and the Derivative part predicts future temperature changes. Together, they work to minimize temperature fluctuations and keep it stable at the set point. This method is widely used in industrial applications for its precision and efficiency in controlling temperature and other process variables.

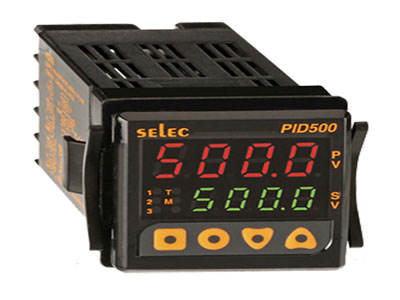

Overview of PID Control

Understanding PID control of temperature is essential for anyone involved in process automation and control. PID, which stands for Proportional-Integral-Derivative, is a type of feedback control system used to maintain a desired set point by adjusting the process inputs. Let’s delve into the key aspects of PID control, including its working principles, applications, advantages, disadvantages, and real-world examples.

PID control is a widely used method in industrial control systems due to its robustness and effectiveness. It combines three control actions—proportional, integral, and derivative—to maintain the process variable (PV) close to the set value (SV). Proportional control deals with the present error, integral control addresses past errors, and derivative control anticipates future errors. By integrating these three actions, PID controllers provide precise and stable control, making them ideal for various applications, especially in temperature regulation.

FAQ Image

How PID Controllers Work

PID controllers operate by continuously calculating an error value, which is the difference between the desired set point (SV) and the measured process variable (PV). This error value is crucial as it informs the controller how much adjustment is needed to bring the PV in line with the SV. The controller then applies corrections based on three control terms: proportional, integral, and derivative.

Proportional (P) Control: This component adjusts the control output proportionally to the current error. If the error is large, the proportional term applies a larger correction. The proportional control is straightforward and helps quickly bring the PV closer to the SV. However, relying solely on proportional control can result in a steady-state error, where the PV stabilizes but not exactly at the SV.

Integral (I) Control: This term accounts for past errors by integrating the error over time. By doing so, it accumulates the total error and corrects any residual offset that the proportional control alone cannot eliminate. The integral action ensures that the PV eventually matches the SV precisely. However, excessive integral action can lead to slow response and potential overshoot.

Derivative (D) Control: This term predicts future errors based on the rate of change of the error. It provides a damping effect to reduce overshoot and oscillations by reacting to the trend of the error. Derivative control is beneficial for stabilizing the system and making the control response smoother. However, it can amplify noise in the system, so it must be used judiciously.

By combining these three controls, PID controllers achieve a balanced and accurate response to changes in the process variable. The continuous adjustments ensure that the PV remains stable and close to the SV, providing precise and reliable temperature control.

Applications of PID Control in Temperature Regulation

PID control is extensively used in temperature regulation across various industries due to its flexibility and precision. In manufacturing, PID controllers maintain consistent temperatures during processes like metal treatment, plastic molding, and food processing. For instance, in metal treatment, precise temperature control is essential to achieve the desired material properties, such as hardness and strength. PID controllers ensure the furnace temperature remains stable, preventing defects and ensuring high-quality output.

In the HVAC industry, PID control is critical for creating comfortable indoor environments by regulating heating and cooling systems. For example, in commercial buildings, PID controllers adjust the HVAC systems to maintain a constant and comfortable temperature despite varying external conditions. This not only enhances comfort but also improves energy efficiency by avoiding unnecessary heating or cooling.

Laboratories also rely heavily on PID controllers to maintain precise temperatures in incubators, ovens, and other equipment. For instance, in a biology lab, maintaining a stable temperature in an incubator is crucial for the growth and development of cultures. PID controllers provide the necessary precision to ensure the incubator’s temperature remains within the narrow range required for optimal conditions.

The flexibility of PID control makes it suitable for any application requiring stable temperature management. Whether it’s ensuring the consistency of manufacturing processes, enhancing comfort in buildings, or supporting precise laboratory experiments, PID controllers play a vital role in maintaining optimal temperature conditions. Their ability to continuously adjust and fine-tune the control output ensures reliable and efficient temperature regulation across diverse applications.

Advantages and Disadvantages

PID controllers offer several advantages that make them a preferred choice for many industrial applications.

High Accuracy: One of the primary benefits of PID controllers is their ability to provide precise control. By continuously adjusting the control variables based on the proportional, integral, and derivative terms, PID controllers minimize errors and maintain the process variable (PV) close to the set value (SV). This high level of accuracy is crucial in applications where even minor deviations from the set point can affect product quality or safety.

Stability: The combination of proportional, integral, and derivative controls ensures stable system performance. The proportional control addresses the present error, the integral control corrects past errors, and the derivative control anticipates future errors. This integrated approach helps in achieving a smooth and stable response, reducing overshoot and oscillations, and ensuring the system operates consistently within the desired parameters.

Versatility: PID controllers are highly adaptable and can handle various types of processes across different industries. Whether it’s temperature regulation in manufacturing, maintaining comfortable environments in HVAC systems, or precise control in laboratory equipment, PID controllers can be configured to meet specific requirements. Their flexibility allows them to be used in a wide range of applications, providing reliable and efficient control.

However, there are also disadvantages to consider:

Complex Tuning: Setting the correct proportional, integral, and derivative values can be complex and requires expertise. Incorrect tuning can lead to suboptimal performance, including instability and excessive correction. Finding the right balance between the control terms often involves trial and error and can be time-consuming.

Sensitivity to Noise: PID controllers can be sensitive to measurement noise, which can affect their performance. Noise in the sensor data can lead to incorrect adjustments and cause the system to respond inappropriately. This sensitivity necessitates careful sensor placement and noise filtering to ensure accurate measurements.

Overfitting: Incorrect tuning can lead to overfitting, where the controller becomes too responsive to minor changes in the process variable. This can cause excessive correction and instability, making the system less reliable. Proper tuning is essential to avoid overfitting and ensure the controller provides a balanced response.

Real-World Examples

To illustrate the use of PID control in real-world scenarios, consider a chemical processing plant. In this environment, maintaining precise temperatures during reactions is crucial for product quality and safety. A PID controller continuously monitors the temperature and adjusts the heating elements to keep the process within the desired range. This ensures that the chemical reactions occur under optimal conditions, producing consistent and high-quality products. The precise control provided by the PID controller helps prevent deviations that could lead to unsafe conditions or product defects.

Another example is a brewery, where PID control is used to maintain fermentation temperatures. Accurate temperature control is vital for ensuring the desired flavor and quality of the beer. Fermentation is a sensitive process, and even slight temperature variations can significantly impact the final product. The PID controller adjusts the cooling and heating systems based on real-time temperature data, ensuring the fermentation process remains stable and predictable. This precise control helps brewers produce beer with consistent quality and taste.

In the semiconductor industry, PID controllers are used in the manufacturing of integrated circuits. Precise temperature control is essential to maintain the integrity of the manufacturing process. Semiconductor fabrication involves processes that require extremely tight temperature tolerances. PID controllers ensure that the temperature of the production environment remains within the strict limits required for producing high-quality semiconductor components. This precise control helps prevent defects and ensures the reliability of the final products.

These real-world examples highlight the critical role of PID controllers in maintaining precise and stable temperature control across various industries. Their ability to provide accurate and reliable control makes them indispensable in applications where maintaining exact conditions is essential for quality and safety.

Conclusion

Mastering PID control of temperature is essential for anyone involved in process automation and control. It requires a deep understanding of its components—proportional, integral, and derivative controls—and their integration to achieve precise and stable temperature regulation. This mastery is crucial for various industrial processes, including manufacturing, chemical processing, and HVAC systems. While tuning PID controllers can be complex and requires expertise, the benefits of achieving accurate and reliable temperature control make it a valuable endeavor. By ensuring optimal process performance, product quality, and operational efficiency, mastering PID control significantly contributes to the success of numerous applications. Understanding and effectively implementing PID control translates to improved stability, efficiency, and overall system reliability across diverse industries.
