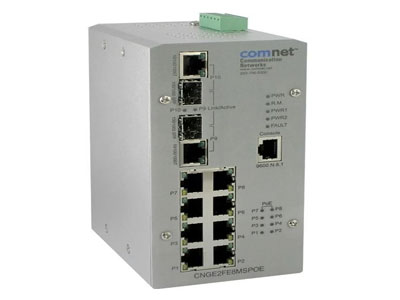

What Is Ethernet In PLC?
Key Takeaway
Ethernet in PLC (Programmable Logic Controller) systems is used for communication within industrial networks. It enables PLCs to connect with other devices like PCs, Human-Machine Interfaces (HMIs), and other controllers in a plant. By using Ethernet, you can access PLC programming, control network functions, and monitor equipment remotely, all through a reliable and high-speed network connection.
The integration of Ethernet in PLC systems improves data exchange, enhances real-time communication, and increases the overall efficiency of industrial automation processes. It also simplifies the network setup, making it easier to scale and integrate with other systems.
Introduction to PLCs (Programmable Logic Controllers)
Programmable Logic Controllers (PLCs) are specialized industrial computers designed to control machinery and processes in industrial environments. Developed in the late 1960s to replace hard-wired relay systems, PLCs have become essential for managing everything from simple tasks, like turning machines on and off, to complex processes involving multiple sensors and actuators.
Built to withstand harsh industrial conditions, PLCs control various input and output (I/O) devices. They are programmable, allowing engineers to create and modify software (often ladder logic) that dictates their operation. This flexibility makes PLCs crucial in industries such as automotive, food and beverage, chemical processing, and energy.
Modern PLCs have expanded their functionality to include data collection, real-time monitoring, and integration with higher-level systems. The introduction of Ethernet has further enhanced PLC capabilities, enabling more reliable and sophisticated communication across industrial networks.
Role of Ethernet in PLC Communication
Ethernet has become a standard communication protocol in many industrial environments, and its integration with PLCs has brought significant improvements in how these systems communicate. Traditionally, PLCs communicated with other devices using serial protocols like RS-232 or RS-485, which were adequate for basic control tasks but limited in terms of speed, scalability, and network complexity.
Ethernet, however, offers a much faster and more robust communication method. By connecting PLCs via Ethernet, engineers can create a networked system where data is exchanged quickly and efficiently between various devices, such as sensors, actuators, Human-Machine Interfaces (HMIs), and supervisory control systems. This networking capability is essential in modern industrial environments, where timely data exchange and coordination between different system components are crucial for maintaining efficiency and productivity.
Ethernet’s ability to support large networks means that multiple PLCs can be connected across a wide area, facilitating centralized control and monitoring. This is particularly beneficial in large facilities or distributed systems, where different parts of the process need to be closely coordinated. Furthermore, Ethernet enables seamless integration with enterprise-level systems, allowing data from the shop floor to be used in higher-level analytics and decision-making processes.
Advantages of Using Ethernet with PLCs
The use of Ethernet in PLC systems brings several significant advantages that enhance both the functionality and reliability of industrial processes. One of the most notable benefits is speed. Ethernet networks can transmit data at speeds far greater than traditional serial communication methods, which is crucial for real-time monitoring and control. This high-speed communication reduces latency, ensuring that commands and data are transmitted quickly and accurately, which is vital in time-sensitive applications.
Another key advantage is scalability. Ethernet networks can support a large number of devices, making it easier to expand the system as the needs of the operation grow. This scalability is particularly important in industries where processes are continuously evolving, and new devices need to be added without disrupting existing operations.
Reliability and robustness are also enhanced by using Ethernet. Ethernet networks can be configured with redundancy, meaning that if one communication path fails, data can be rerouted through another path, ensuring continuous operation. This is a critical feature in industrial environments where downtime can lead to significant financial losses.
Ethernet also enables greater flexibility in network design. Unlike traditional serial networks, which often require point-to-point connections, Ethernet allows for various network topologies, such as star, ring, or mesh, depending on the specific needs of the operation. This flexibility makes it easier to design networks that are optimized for both performance and reliability.
Finally, integration with other systems is simplified when using Ethernet. Many modern industrial systems, such as SCADA (Supervisory Control and Data Acquisition) and MES (Manufacturing Execution Systems), are designed to operate over Ethernet. By using Ethernet-enabled PLCs, engineers can easily integrate these systems, allowing for better data sharing, more comprehensive monitoring, and improved overall system performance.
Common PLC Ethernet Protocols
Several Ethernet-based communication protocols are commonly used in PLC systems, each designed to meet specific industrial needs. Some of the most widely used PLC Ethernet protocols include:
EtherNet/IP: This protocol is one of the most popular in industrial automation, especially in North America. It uses standard Ethernet for communication but adds specific features for industrial applications, such as real-time control and deterministic communication. EtherNet/IP is widely supported by many PLC manufacturers and is known for its robustness and scalability.
PROFINET: Developed by Siemens, PROFINET is another leading industrial Ethernet protocol, particularly in Europe. It is designed to provide real-time data exchange and supports both standard Ethernet and specialized functions like motion control and safety systems. PROFINET’s versatility and performance make it a preferred choice in many industries.
Modbus TCP: Modbus TCP is an Ethernet-based version of the traditional Modbus protocol. It is simple to implement and widely used for connecting PLCs with other devices like HMIs, sensors, and actuators. Modbus TCP is known for its ease of use and compatibility with a wide range of industrial devices.
EtherCAT: This protocol is designed for high-speed, real-time communication and is often used in applications requiring precise control, such as robotics and motion control systems. EtherCAT is known for its efficiency, as it processes data “on the fly,” reducing communication delays.
Each of these protocols offers different strengths, and the choice of protocol often depends on the specific requirements of the application, such as the need for real-time communication, network size, and compatibility with existing systems.
How Ethernet Enhances PLC Performance
Integrating Ethernet with PLCs significantly enhances their performance by improving communication speed, reliability, and scalability. One of the primary ways Ethernet enhances PLC performance is through real-time data exchange. In applications where precise timing is critical, such as in motion control or synchronized multi-axis machines, Ethernet ensures that data is transmitted with minimal latency, allowing for more accurate and coordinated control.
Remote monitoring and control are also greatly improved with Ethernet-enabled PLCs. Engineers can access PLCs from remote locations, allowing them to monitor system performance, troubleshoot issues, and even update programs without needing to be physically present. This capability is invaluable in large facilities or distributed systems, where sending personnel to each location would be impractical and time-consuming.
Data integration is another area where Ethernet shines. Ethernet networks facilitate seamless data exchange between PLCs and higher-level systems, such as SCADA or MES. This integration enables more comprehensive monitoring and analysis, helping organizations optimize their operations by providing real-time insights into process performance, energy usage, and other critical metrics.
Enhanced security is another benefit of using Ethernet with PLCs. Modern Ethernet protocols often include advanced security features, such as encryption and authentication, to protect against unauthorized access and cyber threats. This is increasingly important as industrial networks become more connected and exposed to potential cybersecurity risks.
Finally, Ethernet allows for future-proofing of PLC systems. As industrial processes become more complex and data-intensive, the ability to upgrade and expand networks without replacing the entire infrastructure becomes crucial. Ethernet’s scalability and compatibility with emerging technologies make it an ideal choice for systems that need to evolve over time.
Conclusion
The integration of Ethernet with PLC systems has had a profound impact on industrial automation, offering significant improvements in speed, reliability, scalability, and flexibility. For newly joined engineers, understanding the role of Ethernet in PLC communication is essential, as it is a key factor in designing and managing modern industrial networks.
Ethernet not only enhances the performance of PLCs but also enables seamless integration with other systems, supports remote monitoring and control, and provides a robust platform for real-time data exchange. As industrial processes continue to advance, the use of Ethernet in PLC systems will remain a critical component in achieving efficient, reliable, and future-ready automation solutions.
