What Is A Roller Limit Switch?
Key Takeaway

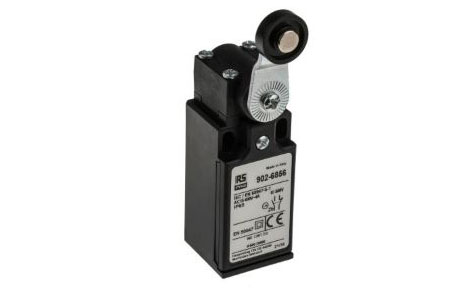

A roller limit switch is a mechanical device used to detect the position or movement of objects in industrial applications. It features a roller-shaped actuator mounted on a lever or arm. When an object makes contact with the roller, it moves the lever, triggering the switch. This simple mechanism allows the switch to send signals for specific actions, such as starting or stopping a machine.
Roller limit switches are commonly used on conveyor belts, packaging machines, and automated systems. They are valued for their durability and precision in detecting fast-moving objects. Their key benefits include ensuring smooth operations, preventing equipment damage, and enhancing safety. By providing reliable feedback, roller limit switches play a critical role in controlling machinery, counting objects, and serving as safety interlocks in industrial settings
Function and Working Principle of Roller Limit Switches
Roller limit switches play a vital role in industrial automation by detecting the position or presence of objects. These devices use a mechanical actuator, often shaped like a roller, which triggers the switch when an object makes contact. This action signals a machine to start, stop, or change operation. Essentially, the limit switch converts mechanical movement into an electrical signal.
When an object pushes the roller, the internal spring-loaded mechanism shifts. This movement closes or opens an electrical circuit depending on the switch’s design. Roller limit switches are commonly used in conveyor belts, robotic arms, and automated manufacturing processes. They ensure precision, safety, and efficiency by controlling movement and preventing over-travel of machine parts.
A key feature of roller limit switches is their ability to operate reliably in harsh environments. Their robust construction allows them to withstand vibration, dust, and temperature extremes. Understanding their function is critical for ensuring smooth industrial operations and avoiding costly downtime.
Key Components of a Roller Limit Switch
A roller limit switch comprises several essential parts, each contributing to its reliable functionality. The actuator or roller lever is the external component that comes into contact with moving objects. It is spring-loaded to ensure smooth actuation and reset after operation. Inside the housing, the spring mechanism ensures the lever returns to its default position, enabling repeated cycles.
The housing is a protective shell made of industrial-grade materials like metal or reinforced plastic, shielding internal components from dust, moisture, or physical damage. Next, the contacts inside the switch are the core of the electrical system, controlling the flow of current based on the roller’s movement. These can be configured as normally open (NO) or normally closed (NC) contacts.
Lastly, terminal connections allow integration with external systems. This part ensures the electrical signals generated by the switch can communicate with other devices seamlessly. Regular maintenance of these components is essential to ensure longevity and reliable performance.
Common Applications of Roller Limit Switches
Roller Limit Switches are incredibly versatile and widely used in industrial applications. One of their primary uses is in conveyor systems, where they detect the position of items and ensure proper spacing and alignment. This is essential for automated processes that require precision, such as sorting or packaging.
In robotics, these switches help control the range of motion of robotic arms, ensuring they operate within safe limits. This prevents damage to the machinery and ensures accuracy during repetitive tasks. Packaging machines also rely heavily on roller limit switches to detect materials and trigger operations like wrapping or sealing.
Another significant application is in elevators and hoists, where these switches act as safety devices, preventing over-travel or misalignment of moving components. Similarly, in heavy machinery, roller limit switches are used to safeguard parts by controlling their movement, reducing wear and tear.
Their robustness and ability to function in challenging environments make them indispensable in industries like automotive, manufacturing, and logistics. By ensuring safety and operational efficiency, roller limit switches continue to play a critical role in industrial systems.
Types of Roller Limit Switches and Their Features
Roller limit switches come in various types, each tailored for specific industrial needs. The standard roller lever switch is the most common type, ideal for general-purpose applications like conveyor belts and assembly lines. Its simple design ensures reliable performance and easy maintenance.
For applications requiring greater flexibility, rotary roller limit switches are a perfect choice. These use a rotating lever mechanism, making them suitable for monitoring larger or irregularly shaped objects. If durability is a concern, heavy-duty roller limit switches are designed with reinforced housings to withstand harsh environments, such as those with high vibrations or extreme temperatures.
Adjustable roller limit switches are another popular option, offering flexibility by allowing users to modify the roller’s position or length. This feature is particularly useful in setups requiring precise adjustments. Lastly, micro roller limit switches are compact and highly sensitive, making them suitable for delicate operations like electronics manufacturing.
When choosing a type, consider factors such as sensitivity, durability, and electrical ratings to ensure compatibility with the system. Selecting the right type of switch can significantly enhance efficiency and reduce maintenance requirements.
Factors to Consider When Selecting a Roller Limit Switch
Selecting the right roller limit switch involves a careful evaluation of several factors. Operating environment is a key consideration; for environments with dust, moisture, or extreme temperatures, heavy-duty or sealed switches are essential. The load requirements should also match the system’s electrical demands, ensuring the switch can handle the voltage and current without failure.
Actuation speed is another critical factor. For high-speed applications, a switch with rapid response time is necessary to prevent missed signals. Additionally, the mounting and size of the switch must fit seamlessly into the system, especially in compact or customized setups.
Durability and longevity are paramount in industrial applications. Opt for switches made with high-quality materials and a proven track record of reliability. Finally, balancing cost and features ensures you get the best value without compromising on essential functionalities. By considering these factors, engineers can ensure optimal performance and reduce downtime in their systems.
Conclusion
Maintaining roller limit switches is critical for ensuring their long-term performance. Regular inspection for wear and tear, cleaning to prevent debris buildup, and timely replacement of damaged components are essential practices. Proper maintenance not only extends the life of the switch but also ensures operational accuracy and safety.
Additionally, training team members to handle and troubleshoot these devices effectively can minimize downtime. Following manufacturer guidelines for installation and usage is equally important for optimal performance. Investing in high-quality switches and maintaining them well ensures efficiency, safety, and reliability across industrial systems.
