What Is A Field-Effect Transistor (FET)?
Key Takeaway
A Field-Effect Transistor (FET) uses the voltage applied to its input terminal, called the Gate, to control the current flowing from the Source to the Drain. This makes the FET a voltage-operated device. FETs are widely used in Integrated Circuits (ICs) due to their compact size and low power consumption. Their ability to handle high-speed switching and low noise makes them ideal for a variety of applications, including amplifiers, oscillators, and digital circuits. FETs help improve the efficiency and performance of electronic devices.
Overview of Field-Effect Transistors
A Field-Effect Transistor (FET) is a type of transistor that uses an electric field to control the flow of current. Unlike Bipolar Junction Transistors (BJTs), which rely on current to control current, FETs use voltage to control current, making them more efficient in certain applications. FETs have three terminals: source, drain, and gate. The gate terminal controls the conductivity between the source and drain terminals by varying the voltage. This voltage-controlled mechanism allows FETs to operate with low power consumption and high efficiency, making them ideal for applications in power management, digital circuits, and high-frequency operations. Their ability to efficiently control current with minimal power makes FETs crucial components in modern electronic devices and systems.
Types of FETs: JFET and MOSFET

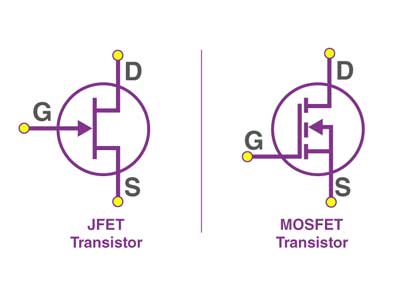

FETs are broadly categorized into two types: Junction Field-Effect Transistors (JFETs) and Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs).
JFETs are the simplest type of FET, with a single p-n junction that controls the flow of current. They are always on when no voltage is applied to the gate and are used primarily in analog and high-frequency applications due to their high input impedance and low noise levels.
MOSFETs are more complex and versatile, featuring an insulated gate that provides greater control over the current flow. MOSFETs come in two types: enhancement-mode and depletion-mode. Enhancement-mode MOSFETs are normally off and require a voltage to turn on, while depletion-mode MOSFETs are normally on and require a voltage to turn off. MOSFETs are widely used in digital circuits, power management, and RF applications due to their high switching speed and efficiency.
Operation and Characteristics of FETs
Field-Effect Transistors (FETs) operate by using the voltage applied to the gate terminal to control the current flowing between the source and drain terminals. When a voltage is applied to the gate, it creates an electric field that either enhances or depletes the conductive channel in the semiconductor material. This modulation of the channel conductivity allows for precise control of the current flow.
For example, in an N-channel FET, a positive voltage applied to the gate attracts electrons, forming a conductive channel between the source and drain. Conversely, in a P-channel FET, a negative gate voltage is needed to create the conductive path. This voltage-controlled mechanism provides a highly efficient means of regulating current.
Key characteristics of FETs include high input impedance, low power consumption, and fast switching capabilities. The high input impedance means that FETs draw very little current from the preceding stage, making them ideal for applications where power conservation is critical, such as in battery-powered devices. Their fast switching speeds make them suitable for high-frequency applications and digital circuits, where rapid response times are necessary to handle quick changes in signal states.
These features make FETs indispensable in modern electronics, enabling efficient power management, high-speed signal processing, and minimal energy consumption. Whether in computing devices, communication systems, or power control circuits, the unique properties of FETs ensure they play a crucial role in advancing technology.
Role of FETs in VFD Systems
Field-Effect Transistors (FETs) play a crucial role in Variable Frequency Drive (VFD) systems, which are essential for controlling the speed and torque of electric motors. In VFDs, FETs are primarily used in the inverter section to switch power electronics and convert direct current (DC) power into alternating current (AC) power with variable frequency. This conversion process is vital for adjusting motor speed, thereby enhancing energy efficiency and operational flexibility.
MOSFETs, a type of FET, are particularly favored in VFD applications due to their high efficiency, fast switching speeds, and capability to handle high power levels. Their rapid switching capabilities ensure that the inverter can quickly and efficiently change the frequency of the AC power, enabling precise control over motor speed and torque. This precision improves the performance and reliability of industrial machinery, making it possible to fine-tune operations for optimal efficiency.
The use of FETs in VFDs contributes to smoother motor operation, reducing energy consumption by ensuring that the motor runs only as fast as needed. This not only enhances energy efficiency but also prolongs the lifespan of motors by minimizing mechanical stress and wear. Additionally, FETs help in achieving lower heat generation, which further improves the reliability and longevity of VFD systems. By leveraging the advanced capabilities of FETs, VFDs can deliver superior performance in a wide range of industrial applications, ensuring robust and energy-efficient motor control.
Troubleshooting and Replacing FETs in VFDs
Troubleshooting and replacing FETs in VFD systems are critical maintenance tasks to ensure continuous and efficient operation. Common issues with FETs in VFDs include overheating, short circuits, and electrical noise.
To troubleshoot FETs, start by visually inspecting the components for signs of damage or overheating. Use a multimeter to check for short circuits between the source, drain, and gate terminals. If an FET is found to be faulty, it needs to be replaced with a component of the same specifications to maintain system performance.
When replacing an FET, ensure that the new component matches the original in terms of voltage and current ratings, switching speed, and thermal characteristics. Proper handling and installation are crucial to prevent static damage and ensure reliable operation. Regular maintenance and prompt replacement of faulty FETs can prevent system failures and extend the life of VFD systems.
Conclusion
Field-Effect Transistors (FETs) are integral components in modern electronic devices, providing efficient and precise control of electrical signals. Their ability to operate with low power consumption and high switching speeds makes them ideal for a wide range of applications, from digital circuits to power management and motor control. In Variable Frequency Drive (VFD) systems, FETs play a vital role in enhancing motor performance and energy efficiency. Understanding the operation, types, and maintenance of FETs is essential for engineers and technicians working in the field of electronics, ensuring the reliability and efficiency of various electronic systems.
