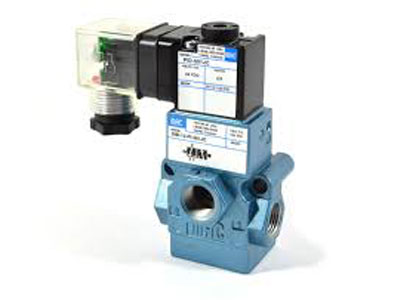

What Is A 3/2 Directional Control Valve?
Key Takeaway
A 3/2 directional control valve, also known as a 3-way, 2-position valve, is used to control the flow of air or fluid in pneumatic and hydraulic systems. It features three ports (P, A, and T), where Port P acts as the inlet, and Ports A and T are the outlets—one typically open and the other closed. The valve has two working positions, representing different flow paths, and can either allow flow or block it, depending on its state.
These valves find application in single-acting cylinders, pneumatic actuators, and pressure relief systems. They can be activated through different means: manually (button or lever), pneumatically (compressed air), mechanically, or electrically (solenoid). This versatility makes 3/2 valves essential for controlling the start, stop, or direction of fluid flow in various systems.
Structure and Function of a 3/2 Directional Control Valve
A 3/2 directional control valve operates with three ports and two distinct positions. The structure of the valve typically includes a valve body, a spool (or poppet), seals, and a spring for returning the valve to its default position. The valve’s spool controls the flow of air between the ports, redirecting it depending on the valve’s position.
In the first position, the valve allows air to flow from the inlet to the actuator, enabling movement. In the second position, the valve redirects the airflow from the actuator to the exhaust, causing it to return to its original position or stopping it altogether. This functionality makes it ideal for simple applications like controlling the extension and retraction of pneumatic cylinders.
The two main actuators for a 3/2 valve are manual, where the operator physically switches the valve, or automatic, where the valve is controlled electrically or pneumatically (using solenoids or pilot air). The simplicity of the valve’s design makes it reliable for controlling basic movements in many industrial applications.
Applications of 3/2 Valves in Pneumatic Systems
3/2 directional control valves are used in a wide range of applications within pneumatic systems, primarily for controlling cylinders, motors, and other actuators. They are particularly useful in machines that require simple and precise control, such as automated machinery, robotic systems, and production lines.
One of the most common uses for 3/2 valves is controlling pneumatic cylinders in single-acting applications. For example, a 3/2 valve might control a cylinder that extends and retracts with compressed air. When the valve is in one position, it allows air into the cylinder to extend it, and when it’s in the other position, it exhausts the air, allowing the cylinder to retract.
These valves are also often found in applications where basic control is needed, such as in the operation of air tools, where one action (air delivery or exhaust) is needed to complete the task. Additionally, 3/2 valves are frequently used in safety and emergency shutoff systems, as their simple operation makes them easy to control and manage.
Benefits and Drawbacks of 3/2 Valves
Like any component, 3/2 directional control valves come with both benefits and drawbacks. Let’s break them down.
Benefits:
1. Simplicity: 3/2 valves have a straightforward design and operation, making them easy to understand and maintain. Their simplicity also contributes to reliability and long service life.
2. Cost-Effective: Because of their simple design, 3/2 valves are typically less expensive than more complex valves. This makes them ideal for applications where basic control is sufficient.
3. Compact Size: These valves are relatively small, which makes them suitable for use in compact or space-constrained applications.
4. Versatility: They are widely used in many different industries, such as manufacturing, automation, and automotive systems, offering a high degree of flexibility.
Drawbacks:
1. Limited Functionality: While 3/2 valves are great for simple operations, they are not suitable for more complex tasks that require multiple control positions or more precise control over fluid flow.
2. Less Control Precision: The valve can only offer basic two-position control, which may not be suitable for systems that require more detailed or nuanced adjustments to flow.
3. Wear and Tear: Over time, 3/2 valves may wear out or become less effective due to their simple design, which can lead to issues such as leaks or performance degradation.
Despite these limitations, the 3/2 valve’s advantages in simplicity, cost-effectiveness, and ease of use make it an essential choice for many pneumatic applications.
How a 3/2 Valve Compares to Other Types of Valves
When comparing a 3/2 directional control valve to other types of valves, it’s essential to understand that while all directional control valves regulate fluid or air flow, they differ in the number of ports and positions available.
For example, a 4/2 valve has four ports and two positions, allowing for more complex control than a 3/2 valve. A 5/2 valve offers even more flexibility with five ports and two positions, which makes it suitable for controlling double-acting cylinders. Unlike a 3/2 valve, these valves can perform more advanced tasks such as reversing the direction of flow multiple times or managing pressure in more complex systems.
In contrast, a 3/2 valve is limited in its functionality, making it ideal for simpler systems where basic actuation is needed. The 3/2 valve is a great choice when you don’t require the advanced features offered by 4/2 or 5/2 valves, such as simultaneous actuation or pressure regulation. Its simplicity, reliability, and cost-effectiveness make it perfect for straightforward applications like controlling single-acting cylinders or starting/stopping air tools.
The decision of whether to use a 3/2 valve or another type of valve depends on the complexity of the task at hand and the requirements of the specific application.
Troubleshooting Common Issues with 3/2 Valves
While 3/2 directional control valves are known for their reliability, like all mechanical devices, they can experience issues over time. Here are some common problems and how to troubleshoot them:
1. Valve not switching positions: If the valve is not switching between positions, it may be caused by a faulty actuator (manual or solenoid). Check for electrical issues, such as power supply problems if the valve is solenoid-operated. If it’s manually actuated, ensure that the actuator is not blocked or stuck.
2. Air leaks: Leaking air can be caused by worn seals or damaged valve bodies. Inspect the seals and replace any that appear worn or cracked. If the valve body is damaged, it may need to be replaced entirely.
3. Slow or unresponsive operation: If the valve operates sluggishly or unresponsively, it could be due to contaminants like dirt or debris in the valve. Cleaning the valve and ensuring proper lubrication can help restore its normal operation.
4. Pressure issues: If the valve is not properly controlling the air or fluid flow, check the pressure settings of the system. Low pressure can prevent the valve from operating correctly. Ensure that the system pressure is within the required range and that there are no blockages in the line.
Regular maintenance and prompt troubleshooting can help extend the life of a 3/2 valve and keep your pneumatic system running smoothly.
Conclusion
3/2 directional control valves are crucial components in many pneumatic systems, offering simple yet reliable control of air flow to actuators. Their versatility, cost-effectiveness, and ease of use make them an ideal choice for applications requiring basic, single-acting motion control. While they may not be suitable for more complex tasks, they remain a go-to solution in industries where straightforward actuation is needed. Understanding their structure, benefits, and common troubleshooting techniques can help you make the most out of these valves in your pneumatic systems.
