What Does 600 VRMS Mean?
Key Takeaway
600 VRMS refers to a root-mean-square (RMS) voltage of 600 volts. RMS is a way to express AC voltage in terms of its equivalent DC voltage, which would produce the same heating effect in a circuit. Unlike average voltage, which is zero for an AC waveform, RMS provides a meaningful value for time-varying voltages.
This means a 600 VRMS signal has the same power delivery capability as 600 volts of direct current. RMS is particularly useful because AC voltage alternates direction, making peak values less practical for comparison. The relationship between RMS and peak voltage is given by the formula: Vpk = √2 × VRMS. For 600 VRMS, the peak voltage would be approximately 848 volts. Understanding VRMS helps ensure safe and accurate measurement and operation in electrical systems and devices.
Defining RMS Voltage: What It Stands For
RMS stands for Root Mean Square, a mathematical concept that translates alternating current (AC) voltage into an equivalent direct current (DC) value. AC voltage fluctuates over time, creating a sinusoidal wave. Measuring just the peak voltage doesn’t provide a practical representation of the energy delivered over time.
This is where RMS comes in—it calculates the effective voltage that performs the same work as DC. For example, a 120V AC power supply has an RMS value of 120 volts, but its peak voltage is approximately 170 volts.
In simpler terms, RMS voltage gives you a true, comparable value to understand how much power is available. When a multimeter says it can handle 600 VRMS, it means it can safely measure alternating voltages with an effective value up to 600 volts.
Understanding RMS is vital because it ensures accurate measurements, especially in industrial applications where safety and precision are paramount. Always remember: RMS voltage reflects the true working capability of an AC circuit.
What It Stands For H2: Why RMS Is Used for AC Voltage Measurements
Why not just measure peak voltage or average voltage? The reason lies in consistency. AC voltage constantly varies, and peak or average values don’t reflect the true power delivered. RMS voltage provides a reliable measure for real-world applications.
For engineers, this accuracy is crucial in equipment testing, circuit design, and troubleshooting. For instance, if you’re testing an industrial motor that requires 400 VRMS, measuring the peak voltage instead might mislead you into thinking the motor operates beyond its capacity.
RMS voltage is especially critical for safety. If you’re working with high-voltage systems, knowing the RMS value helps determine the right insulation, protective gear, and tools. Many multimeters are labeled with RMS capabilities for this exact reason—ensuring precise readings without compromising safety.
In short, RMS is the gold standard for AC measurements because it reflects real energy usage. Always rely on RMS values to make informed decisions in electrical systems.
Why RMS Is Used for AC Voltage Measurements H2: Interpreting the 600 VRMS Specification on a Multimeter

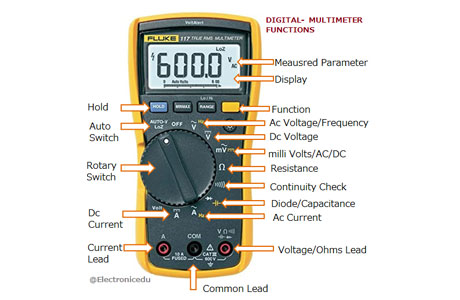

When you see “600 VRMS” on a multimeter, it tells you the maximum effective AC voltage the device can measure safely. This rating also indicates its capacity to withstand voltage spikes without damage.
Imagine you’re troubleshooting a high-voltage control panel. The 600 VRMS rating means the multimeter can handle measurements up to 600 volts in standard AC environments. Going beyond this value could damage the device or give inaccurate readings.
However, the VRMS rating isn’t just about measurement—it’s also a safety indicator. Electrical systems can produce transient surges, and using a multimeter with a lower rating than the system can lead to dangerous consequences.
It’s also essential to pair this rating with the device’s category (CAT) rating. A CAT III multimeter rated for 600 VRMS is suitable for industrial distribution boards but not for outdoor high-voltage lines.
For new engineers, this is a critical lesson: Always respect the VRMS rating on your tools. It’s a guideline that ensures both accurate readings and your personal safety during electrical work.
Interpreting the 600 VRMS Specification on a Multimeter H2: Applications and Safety Considerations for 600 VRMS
Multimeters rated for 600 VRMS are commonly used in industrial and commercial applications. They’re perfect for measuring voltages in motors, control panels, and power supplies. But using them correctly requires adherence to safety protocols.
One important safety aspect is understanding insulation requirements. High voltages can arc through improper insulation, leading to equipment damage or injury. A 600 VRMS multimeter typically has sufficient insulation for most indoor industrial tasks but isn’t designed for extreme environments.
Another consideration is the use of proper probes and leads. Multimeter leads also have voltage ratings—ensure they match or exceed the VRMS of your system. For instance, using 300 VRMS leads on a 600 VRMS system is a recipe for failure.
For applications like motor control diagnostics or energy system analysis, this rating provides a balance of capability and portability. It’s versatile enough for most industrial tasks without stepping into the complexities of high-voltage tools.
To ensure safety, always double-check the multimeter’s VRMS and CAT ratings against the system you’re testing. And don’t forget the basics: wear insulated gloves, stand on a non-conductive surface, and never measure live circuits without a clear understanding of the risks involved.
Applications and Safety Considerations for 600 VRMS H2: How to Measure RMS Voltage Using a Multimeter
Using a multimeter to measure RMS voltage is straightforward, but attention to detail is crucial. Here’s a step-by-step guide:
Choose the Right Multimeter: Ensure your device is rated for the voltage you’re measuring. A 600 VRMS multimeter is sufficient for most industrial applications but verify the CAT rating for safety.
Inspect the Multimeter: Check the probes and leads for any signs of damage. Even a small tear in the insulation can compromise safety.
Set the Multimeter to AC Voltage: Turn the dial to the AC voltage setting (often marked with a “V~” symbol).
Connect the Probes: Insert the black probe into the COM port and the red probe into the voltage port. Place the probes on the circuit points where you want to measure the voltage.
Read the Measurement: The display will show the RMS voltage value. Ensure the reading doesn’t exceed the multimeter’s VRMS rating.
Analyze and Document: Use the reading to diagnose or verify the circuit’s performance.
Safety First: Always de-energize the circuit before disconnecting the probes to prevent accidental arcing.
Measuring RMS voltage is a routine task, but mastering it ensures accuracy, safety, and confidence in your work. Practice this skill often—it’s fundamental to electrical engineering.
Conclusion
Understanding “600 VRMS” is more than just interpreting a number—it’s about grasping the principles of RMS voltage, recognizing its role in accurate AC measurements, and respecting its limits for safe electrical work. By adhering to these practices, you ensure both your personal safety and the reliability of the systems you maintain.
For every engineer, a clear understanding of voltage ratings and how to measure them lays the foundation for a successful career in the electrical industry. Always prioritize safety, invest in the right tools, and approach every measurement with precision.
