What Are The Types Of Multimeters?
Key Takeaway
There are two main types of multimeters: analog and digital. Analog multimeters use a needle to display readings on a scale. They are great for observing gradual changes in voltage, current, or resistance but require more skill to interpret accurately. Digital multimeters, on the other hand, show precise measurements on a screen, making them easier to use and more popular.
Advanced digital multimeters often include features like frequency, temperature, and capacitance measurements. Some models are auto-ranging, which means they automatically select the appropriate measurement range. Analog multimeters are preferred for applications that require monitoring changes over time, while digital multimeters are ideal for most other tasks due to their accuracy and convenience. Choosing the right type depends on the specific needs of your project.

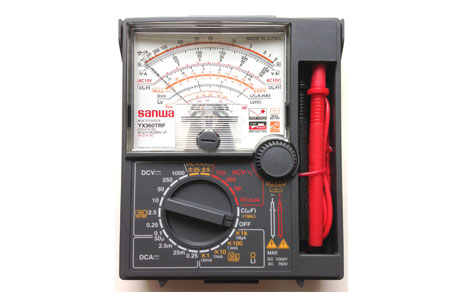

Analog Multimeters: A Look at the Basics
Analog multimeters are where it all began. Though they might seem outdated in today’s digital age, these devices still hold a unique place in electrical diagnostics. Unlike their digital counterparts, analog multimeters use a needle that moves across a scale to indicate readings.
One key advantage of analog multimeters is their ability to display changes in readings smoothly. For example, if you’re testing a fluctuating signal, the needle movement gives a real-time view of the changes—a feature that can be hard to replicate with digital displays.
They are simple in design and relatively inexpensive, making them an excellent choice for beginners or professionals working in environments where high precision isn’t critical. However, they do require a good understanding of how to interpret the scales accurately, which can be tricky for someone new.
That said, analog multimeters are less popular today because they lack advanced features like auto-ranging and data storage. But for certain applications, especially in teaching and basic testing, these tools remain a reliable choice.
A Look at the Basics H2: Digital Multimeters: Enhanced Accuracy and Features
Digital multimeters (DMMs) are the most commonly used type of multimeters today. Their popularity stems from their precision, user-friendly interface, and range of features that cater to both beginners and professionals.
Unlike analog multimeters, DMMs display readings on an LCD screen, eliminating the guesswork involved in interpreting scales. This makes them ideal for applications where high accuracy is crucial, such as testing sensitive electronic circuits or troubleshooting automotive systems.
Modern DMMs come equipped with features like auto-ranging, which eliminates the need to select the measurement range manually, and data logging, which stores readings for future analysis. Some advanced models even include Bluetooth connectivity, allowing users to transmit data to other devices for documentation or deeper analysis.
Additionally, many DMMs are designed to measure more than just voltage, current, and resistance. They can test continuity, diodes, and even temperature, making them highly versatile.
Digital multimeters are reliable, durable, and suitable for almost every application you’ll encounter as an engineer. Whether you’re diagnosing a home electrical issue or analyzing a complex industrial system, a digital multimeter is your go-to tool.
Digital Multimeters: Enhanced Accuracy and Features H2: Clamp Meters: Non-Contact Current Measurement
Clamp meters are a specialized type of multimeter designed primarily for measuring current. Instead of requiring direct contact with the circuit, they use a hinged jaw that clamps around a conductor to measure current flow.
This non-contact method makes them incredibly safe and convenient, especially when working with high-voltage circuits or tightly packed wiring. For example, imagine troubleshooting an industrial power distribution panel. Instead of disconnecting cables to test current, you can simply clamp the meter around the wire, saving time and reducing risk.
Clamp meters are also excellent for measuring AC current in large loads, such as motors, transformers, and HVAC systems. Some models are capable of measuring DC current and additional parameters like voltage and resistance, making them versatile tools.
However, they are not as precise as traditional multimeters when measuring small currents or other parameters. Therefore, clamp meters are often used in conjunction with digital or analog multimeters for a more comprehensive analysis.
If you’re working in industries like manufacturing, utilities, or HVAC, a clamp meter is an invaluable addition to your toolkit. It combines safety, convenience, and reliability, helping you get the job done efficiently.
Enhanced Accuracy and Features H2: Clamp Meters: Non-Contact Current Measurement H2: Auto-Ranging Multimeters: Simplified User Experience
Auto-ranging multimeters are designed with simplicity in mind. Unlike traditional multimeters that require you to select the appropriate range for each measurement manually, auto-ranging models do this automatically.
This feature is especially useful for beginners who might not yet understand the nuances of selecting measurement ranges. For instance, when measuring voltage, an auto-ranging multimeter identifies whether the input is in millivolts, volts, or kilovolts and adjusts itself accordingly. This reduces errors and speeds up the testing process.
Auto-ranging multimeters also benefit experienced engineers by allowing them to focus on troubleshooting rather than fiddling with settings. Imagine working on a complex circuit board where you need to test multiple points quickly. With an auto-ranging multimeter, you can move from one test point to another without constantly adjusting the range.
While these devices are highly convenient, they may not be ideal for situations requiring very precise control over measurement parameters. In such cases, a manual multimeter might still be the better choice.
Overall, auto-ranging multimeters are perfect for general-purpose use, providing a balance between ease of operation and functionality. They’re a great choice for both novices and seasoned professionals.
Clamp Meters: Non-Contact Current Measurement H2: Auto-Ranging Multimeters: Simplified User Experience H2: Specialty Multimeters: HVAC, Automotive, and Smart Multimeters
Specialty multimeters are tailored for specific industries, offering features that address unique challenges. As you advance in your career, you may find these tools indispensable for specialized applications.
HVAC Multimeters: Designed for heating, ventilation, and air conditioning systems, these multimeters often include temperature probes and capacitance measurement capabilities. For example, they can test the functionality of capacitors in air conditioners or measure the temperature of ducts to ensure proper airflow.
Automotive Multimeters: These are optimized for diagnosing issues in vehicles. They often include RPM measurement, duty cycle testing, and the ability to handle high currents, making them ideal for working on ignition systems, alternators, or electronic control units.
Smart Multimeters: The latest innovation, smart multimeters, integrate advanced features like app connectivity and AI-based diagnostics. These tools are particularly useful for logging data over time or performing in-depth analysis remotely.
Each of these multimeters is designed with a specific purpose in mind, so choosing the right one depends on your area of specialization. If you’re an HVAC technician, you’ll benefit from the added features of an HVAC multimeter. Similarly, automotive engineers rely on automotive multimeters for accurate diagnostics.
By understanding the unique capabilities of specialty multimeters, you can select the perfect tool for your specific needs.
Conclusion
Choosing the right type of multimeter depends on your specific application and expertise. Analog multimeters are excellent for basic tests, while digital ones offer precision and versatility. Clamp meters prioritize safety, auto-ranging multimeters simplify the user experience, and specialty multimeters cater to industry-specific needs. As you grow in your career, mastering these tools will be essential for effective troubleshooting and diagnostics.
