What Are The Parts Of A Temperature Switch?
Key Takeaway
A temperature switch consists of a sensor, switch mechanism, and housing. The sensor detects temperature changes.
The mechanism triggers the action, while the housing protects internal components. Some models include adjustable dials for customization.

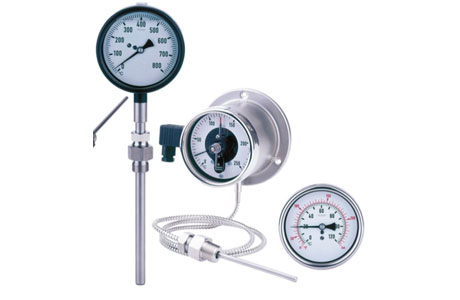

Introduction to Temperature Switch Components
A temperature switch is a vital component in many industrial systems, designed to monitor temperature levels and activate or deactivate machinery when specific thresholds are reached. Understanding the individual parts that make up a temperature switch is essential for engineers, especially those new to the field, as it enables them to troubleshoot effectively and maintain the switch for optimal performance.
Temperature switches consist of several key components that work together to detect temperature changes, make decisions, and control the operation of connected systems. In this post, we will explore the primary parts of a temperature switch, their functions, and how they contribute to the switch’s overall effectiveness.
Sensors and Actuators
The heart of any temperature switch lies in its sensor and actuator components. These parts are responsible for detecting temperature changes and triggering the switch’s action.
Sensors are responsible for monitoring the temperature of the surrounding environment. Common types of temperature sensors used in switches include thermocouples, resistance temperature detectors (RTDs), and thermistors. Each type of sensor has its advantages depending on the application, such as accuracy, speed of response, and temperature range. For instance, thermocouples are excellent for high-temperature applications, while RTDs are more accurate in precise measurements.
Once the sensor detects a temperature change, it signals the actuator to take action. Actuators are mechanical or electrical devices that control the switching mechanism. In mechanical actuators, the sensor might trigger a bimetallic strip or diaphragm to move and physically close or open the circuit. In electronic actuators, the signal from the sensor is used to control a relay or transistor, which in turn activates or deactivates the switch.
Together, the sensor and actuator form the core of the temperature switch’s functionality, enabling it to monitor temperatures and respond appropriately.
Switching Mechanisms and Contacts
Once the actuator receives the signal from the sensor, the next step is activating the switching mechanism. This mechanism is responsible for opening or closing the electrical circuit that controls the operation of connected systems. The switch must either allow current to flow when the temperature reaches a specified threshold or interrupt the current flow to shut down the system when it overheats.
Temperature switches typically use mechanical contacts such as normally open (NO) or normally closed (NC) contacts. In NO switches, the circuit is open (disconnected) when the temperature is below the threshold and closes when the temperature exceeds the set point. In contrast, NC switches are closed under normal conditions and open when the temperature rises past the threshold.
Switching mechanisms may be simple mechanical designs, where physical components like springs or bimetallic strips move to make or break the electrical contact, or more advanced electronic designs that use solid-state devices like relays and transistors. In either case, the integrity and reliability of the contacts are critical for the correct operation of the switch. Faulty contacts can lead to inaccurate temperature readings or failure to actuate the system, making them an essential part of the temperature switch’s functionality.
Enclosures and Protective Features
Temperature switches are often placed in challenging environments, exposed to harsh conditions like moisture, dust, high temperatures, and vibration. To protect the internal components, temperature switches are housed in enclosures that provide both physical and environmental protection.
Enclosures are typically made of durable materials such as metal or plastic, designed to withstand the environmental conditions of the application. They can be sealed to prevent dust and moisture from entering and causing damage to the sensitive components inside. Enclosures also provide protection from physical impacts, which is especially important in industrial settings where equipment is subject to constant wear and tear.
In addition to the basic housing, many temperature switches come with additional protective features like IP (Ingress Protection) ratings, which indicate the level of dust and water resistance. Higher IP ratings, such as IP65 or IP67, ensure that the switch can withstand harsh environments, making it suitable for use in industries like manufacturing, oil and gas, or food processing.
Protective enclosures are not just about safeguarding the internal parts; they also ensure the switch operates reliably over time, without interference from external factors.
Importance of Each Part in Overall Functionality
Each component of a temperature switch plays a vital role in ensuring the system operates correctly. The sensor detects temperature changes, triggering the actuator to respond accordingly. The actuator activates the switching mechanism, which opens or closes the contacts to control the system. The switching mechanism and contacts directly influence the accuracy and reliability of the switch’s operation, while the enclosure protects the internal components from damage caused by environmental conditions.
If any of these parts fail or degrade, the entire functionality of the temperature switch is compromised, leading to incorrect temperature regulation, system malfunctions, or even safety hazards. For example, a faulty sensor could lead to incorrect temperature readings, causing the switch to activate or deactivate at the wrong times. A damaged enclosure may expose the internal parts to environmental hazards, reducing the switch’s lifespan or causing premature failure.
Maintaining each of these components is crucial for ensuring the temperature switch continues to perform its intended function reliably over time. Regular inspection, cleaning, and calibration of the parts can help prevent common issues, ensuring smooth operation in industrial systems.
Conclusion
In conclusion, a temperature switch consists of several key components such as a sensing element, actuator, and contacts. These parts work together to monitor and control temperature variations, ensuring that systems operate efficiently and safely. Understanding the structure of a temperature switch is crucial for selecting the right one for specific applications.
Other essential parts include the housing, which protects internal components, and the terminal connections, enabling integration with electrical systems. In advanced models, additional features like calibration indicators or fail-safe mechanisms ensure precise operation and durability.
