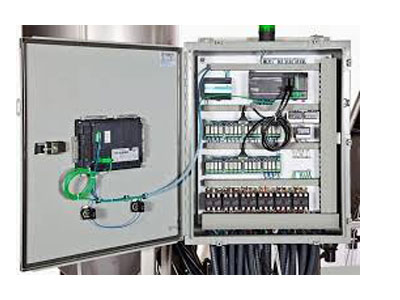

What Are The Main Components Of A VFD Panel?

Key Takeaway

The main components of a VFD (Variable Frequency Drive) panel include the rectifier, DC link, inverter, control unit, and power switching devices. The rectifier is responsible for converting the incoming AC (alternating current) power to DC (direct current) power. The DC link then smooths and stores this DC power, ensuring a steady supply.

The inverter takes the stored DC power and converts it back to AC at the desired frequency and voltage to control the motor’s speed. The control unit manages the entire process, allowing for adjustments and monitoring via a user interface. Power switching devices regulate the output to the motor, ensuring optimal performance. VFDs are essential in industrial settings for precise motor control, offering energy savings and improved process efficiency. Regular maintenance, such as checking for dust, inspecting connections, and updating firmware, is important for keeping VFD panels functioning smoothly.

Rectifiers and Inverters

The rectifier and inverter are essential components of a VFD panel, forming the backbone of its power conversion system. The rectifier converts the incoming alternating current (AC) power supply into direct current (DC). This DC is then processed by the inverter, which converts it back into AC at the desired frequency and voltage, enabling precise control of motor speed. The inverter can vary the output frequency to change motor RPMs and torque, providing unmatched flexibility in motor control.

Modern VFD panels often use pulse-width modulation (PWM) technology in inverters to produce a high-quality output waveform, which reduces harmonics and enhances motor performance. Together, rectifiers and inverters ensure the motor receives the power it needs while optimizing energy use and reducing wear.

Control Circuits and Processors

The control circuits and processors manage the operation of the VFD panel, allowing for seamless integration with user inputs and automation systems. These circuits take signals from sensors, user interfaces, and external control systems to regulate the inverter’s operation. The microprocessor or digital signal processor (DSP) embedded in the VFD panel acts as the brain, processing data and executing commands that control motor speed, direction, and acceleration.

Control circuits are programmed to monitor various parameters such as current, voltage, and frequency, ensuring that the motor operates within safe parameters. This helps to achieve desired performance while maintaining safety and efficiency. With advancements in technology, modern VFD panels now feature programmable logic controllers (PLCs) for enhanced flexibility and user customization.

Input and Output Filters

Input and output filters are crucial in VFD panels to reduce electrical noise, protect connected equipment, and minimize harmonic distortion. Input filters work to reduce line harmonics and protect the rectifier from voltage spikes, which can damage the components and lead to power system instability. They ensure that the power entering the VFD panel meets quality standards and adheres to regulations.

Output filters, on the other hand, smooth out the waveform from the inverter before it reaches the motor, minimizing voltage spikes that can cause damage and reduce the lifespan of the motor. By using these filters, VFD panels contribute to better overall system reliability, compliance with electrical standards, and enhanced protection for sensitive equipment.

Safety and Protective Components

Safety is a top priority in VFD panel design. The inclusion of protective components helps safeguard the panel and connected systems against electrical faults, overcurrent, and other potentially harmful conditions. Essential safety components include:

Circuit breakers and fuses: These disconnect power in case of an overload or short circuit, preventing damage to the VFD and motor.

Ground fault protection: Detects and isolates electrical faults, ensuring that the system operates safely.

Over-voltage and under-voltage protection: Monitors voltage levels to prevent damage to the components in the event of power fluctuations.

These protective measures not only ensure the safety of the VFD panel and the motor but also provide peace of mind for operators and reduce the risk of downtime due to electrical issues.

Communication Modules for Automation

Communication modules play an essential role in modern VFD panels by enabling integration with larger industrial automation networks. These modules allow VFDs to communicate with programmable logic controllers (PLCs), remote monitoring systems, and other networked devices. With protocols like Modbus, Profibus, and Ethernet/IP, VFD panels can be remotely controlled, monitored, and programmed for optimized operation.

Through communication modules, data such as operational status, fault conditions, and performance metrics can be transmitted in real-time to central control systems. This feature enhances the ability to analyze system performance, schedule maintenance, and implement process improvements, making it a key component for industries adopting Industry 4.0 solutions.

Conclusion

Understanding the main components of a VFD panel is crucial for ensuring its efficiency, safety, and reliability. From rectifiers and inverters to control circuits, safety features, and communication modules, each part has a unique role in supporting motor control and optimizing energy use. Knowledge of these components enables engineers to design, troubleshoot, and maintain VFD panels effectively, contributing to better operational performance and reduced downtime in industrial applications.
