What Are The Basic Functions Of A Multimeter?

Key Takeaway

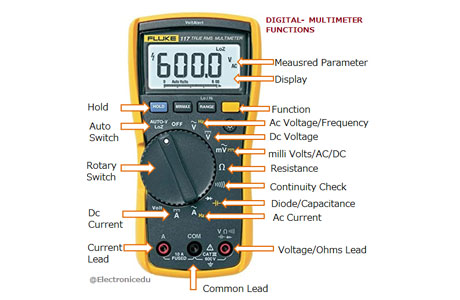

The basic functions of a multimeter are to measure voltage, current, and resistance. It works as a voltmeter to check AC and DC voltage, an ammeter to measure current flow, and an ohmmeter to test resistance in a circuit. These core functions help in diagnosing electrical issues, checking connections, and ensuring devices are working properly.

Multimeters can also have additional features like continuity testing to verify complete circuits and diode testing for electronic components. Advanced models may measure frequency, capacitance, and temperature. Whether digital or analog, a multimeter is an essential tool for electricians, technicians, and DIY enthusiasts for troubleshooting and maintenance.

Voltage Testing: Ensuring Power Flow and Safety

Voltage testing is one of the most common uses of a multimeter. It allows you to measure the potential difference between two points in a circuit, which is essential for ensuring power flow and maintaining safety.

When testing DC voltage, such as in batteries or power supplies, you simply set the multimeter to the DC mode and connect the probes to the positive and negative terminals. This helps confirm whether the voltage is within the expected range, ensuring the power source is functioning correctly.

For AC voltage, common in household and industrial systems, the process is similar. By selecting the AC mode, you can check whether outlets or appliances are delivering the correct voltage levels. This is crucial for preventing equipment damage or identifying issues like voltage drops.

Accurate voltage testing not only ensures that circuits are receiving power but also verifies that they’re safe to use. It’s a straightforward yet invaluable function that makes troubleshooting faster and more efficient.

FAQ Image

Ensuring Power Flow and Safety H2: Current Measurement: Diagnosing Load Issues

Measuring current flow is another critical function of a multimeter. Current measurement helps diagnose load issues in a circuit, such as whether a component is drawing too much or too little current.

To measure current, you need to connect the multimeter in series with the circuit. This ensures that all the current flows through the device, allowing for accurate readings. Most multimeters have separate input jacks for low and high current ranges, so choosing the correct input is essential to avoid damaging the device.

For higher currents, a clamp meter—a type of specialized multimeter—is often used. This tool allows you to measure current without breaking the circuit by clamping around a conductor. It’s particularly useful for diagnosing industrial or automotive systems where current levels can be substantial.

Understanding current flow is essential for tasks like troubleshooting motor circuits, identifying overloaded components, or verifying system performance. A multimeter simplifies this process, making it accessible even for those new to electrical work.

Current Measurement: Diagnosing Load Issues H2: Resistance Testing: Identifying Faulty Components

Resistance testing is vital for troubleshooting and repairing electrical circuits. By measuring resistance, a multimeter can help identify faulty components, such as open circuits or short circuits, that might be causing malfunctions.

When testing resistance, the multimeter applies a small current to the circuit and measures the resulting voltage drop. Based on Ohm’s Law, it calculates the resistance value. For open circuits, the resistance will be infinite, indicating a complete break in the electrical path. Conversely, very low resistance may suggest a short circuit, where unintended connections are causing excessive current flow.

Resistance testing is also useful for verifying the integrity of individual components like resistors, wires, and connections. By comparing the measured resistance to the component’s specified value, you can quickly determine if it needs replacement.

This function is simple yet powerful, enabling users to identify and fix issues with precision. For anyone working with electrical systems, resistance testing is a skill worth mastering.

Diagnosing Load Issues H2: Resistance Testing: Identifying Faulty Components H2: Continuity Checks: Simplifying Circuit Analysis

Continuity checks are one of the easiest and most practical functions of a multimeter, especially for beginners. This feature helps determine whether there’s a continuous electrical path between two points in a circuit.

To perform a continuity test, set the multimeter to the continuity mode, which is usually marked with a symbol resembling sound waves. When the probes are placed on either end of a connection, the multimeter emits a beep if the circuit is continuous. This audible feedback makes it incredibly convenient for quickly checking wires, fuses, and switches.

Continuity checks are particularly useful for identifying broken wires or verifying that connections are intact during installations or repairs. For example, when troubleshooting a faulty light switch, a quick continuity test can confirm whether the switch is functional or needs replacement.

This feature saves time and effort by eliminating the guesswork in circuit analysis. It’s a simple yet effective tool for ensuring that everything is connected as it should be.

Resistance Testing: Identifying Faulty Components H2: Continuity Checks: Simplifying Circuit Analysis H2: Switching Between Modes: Optimizing Multimeter Usage

One of the most important skills when using a multimeter is knowing how to switch between modes effectively. Modern multimeters are designed to measure multiple parameters, but using the wrong setting can lead to inaccurate readings or even damage the device.

Each mode—voltage, current, resistance, or continuity—requires specific configurations. For instance, when measuring voltage, the multimeter must be connected in parallel with the circuit, while current measurement requires a series connection. Understanding these differences ensures that you get accurate results every time.

Auto-ranging is a helpful feature in many modern multimeters. It automatically selects the appropriate range for the parameter being measured, simplifying the process for beginners. However, for more precise tasks, manual range selection can provide greater control.

Switching between modes isn’t just about functionality; it’s about safety. Always start by double-checking the selected mode and probe connections to avoid mishaps. With practice, this becomes second nature, making your multimeter an even more powerful tool.

Conclusion

Mastering the basic functions of a multimeter is essential for anyone involved in electrical work. From measuring voltage and current to testing resistance and checking continuity, these capabilities form the foundation of effective troubleshooting and repair.

Switching between modes and understanding how to use the device correctly ensures accurate measurements and safe handling. By leveraging these core functions, users can diagnose and fix issues with confidence, making the multimeter an indispensable tool for professionals and beginners alike.
