Is PoE Always 48V?
Key Takeaway
No, PoE is not always 48V, but it typically operates around this voltage. Power over Ethernet (PoE) can supply power between 44V and 57V, with 48V being the most common standard. The exact voltage depends on the PoE standard in use, such as IEEE 802.3af, 802.3at, or 802.3bt.
These variations in voltage ensure compatibility with different devices while maintaining safe power levels. Most PoE-enabled devices are designed to handle this range, making 48V a reliable and standard choice, but not the only one.
Introduction to Power over Ethernet (PoE)

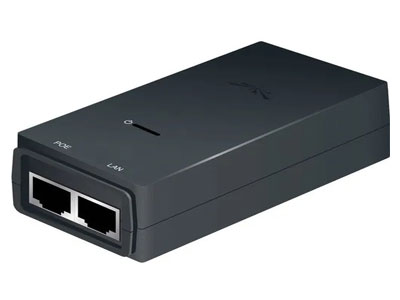

Power over Ethernet, or PoE, is a technology that simplifies network infrastructure by delivering both power and data over a single Ethernet cable. This eliminates the need for separate power supplies for devices like security cameras, wireless access points, and VoIP phones, streamlining installation and reducing costs. The concept behind PoE is relatively simple: a PoE-enabled network switch or injector provides electrical power along with the data signal through the Ethernet cable, which is then used to power devices connected to the network.
PoE has become a popular solution in both commercial and industrial settings, where the ability to power devices remotely is highly advantageous. However, while PoE is often associated with a standard 48V supply, the actual voltage can vary depending on the specific PoE standard and the devices in use. This leads to the important question: is PoE always 48V
Standard Voltage Levels for PoE
The notion that Power over Ethernet (PoE) always operates at a fixed voltage of 48V is a common misconception among those new to networking technology. While 48V is indeed the most widely recognized voltage associated with PoE, it’s important to understand that this is not the only voltage level in use. The original IEEE 802.3af standard, which was established in 2003, defines a voltage range of 44 to 57 volts, with 48V being the nominal or typical value. This standard was designed to deliver up to 15.4 watts of power per port, which is adequate for most basic network devices like IP phones, security cameras, and certain types of wireless access points.
As technology advanced and the need for more power-intensive devices grew, the IEEE introduced the 802.3at standard in 2009, commonly known as PoE+. This standard allows for a higher power output of up to 30 watts per port while maintaining the same voltage range of 44 to 57 volts. This increase in power supports devices like PTZ (Pan-Tilt-Zoom) cameras and more advanced wireless access points that require more energy to operate effectively. The evolution continued with the introduction of the IEEE 802.3bt standard, which significantly boosts the power output to 60 watts (Type 3) and 100 watts (Type 4), all while still operating within the established voltage range. Therefore, while 48V is common in PoE systems, the actual voltage can vary depending on the specific PoE standard being implemented, making it crucial for network engineers to understand the specific requirements of their devices.
Variations in PoE Voltage
Although 48V is often cited as the standard for PoE systems, several factors can cause variations in the actual voltage delivered to devices. One of the most common factors is the length of the cable run between the power source equipment (PSE) and the powered device (PD). Over long distances, voltage drop can occur, meaning that the voltage received by the PD may be slightly lower than the nominal 48V. This is a natural occurrence in electrical systems, and PoE devices are generally designed to tolerate a certain degree of voltage variation without impacting performance. However, it’s an important consideration when planning a network, especially in environments where devices are spread out over large areas.
Another factor that can influence PoE voltage is the type of cabling used. Different grades of Ethernet cables have varying levels of resistance, which can affect the voltage delivered to the device. For example, using lower-quality cables might result in greater voltage drop over the same distance compared to higher-grade cables. Additionally, while IEEE standards aim to maintain a voltage range between 44 to 57 volts, some non-standard or proprietary PoE implementations might operate outside this range. This could potentially lead to compatibility issues if devices and network equipment from different manufacturers are not carefully matched. Understanding these variations and planning accordingly is crucial for ensuring that all connected devices receive the appropriate voltage to function reliably, particularly when integrating PoE technology in complex or large-scale network environments.
These nuances in PoE voltage underscore the importance of careful network design and consideration of all variables that can affect power delivery. By paying attention to cable lengths, quality, and the specific PoE standards in use, engineers can ensure that their systems are both reliable and efficient.
How Voltage Affects PoE Devices
The voltage supplied by a PoE system is a critical factor that directly influences the performance and reliability of connected devices. Devices designed to operate at 48V typically have a certain tolerance for voltage fluctuations. However, if the voltage deviates too far from the expected range, it can cause significant issues.
For instance, when the voltage drops too low—perhaps due to an extended cable run or the use of substandard cabling—the device may not receive sufficient power. This insufficiency can manifest as intermittent connectivity issues, slower performance, or in severe cases, a complete shutdown of the device. Imagine a scenario where a critical IP camera on a security network loses power intermittently; the consequences could be severe, compromising the entire security system.
Conversely, supplying a voltage that exceeds the device’s design specifications can be just as problematic, if not more so. Overvoltage can lead to the overheating of internal components, potentially causing permanent damage to the device. Such damage not only affects the device’s longevity but could also result in network downtime as faulty devices are replaced or repaired.
Therefore, ensuring that the PoE system is properly configured to deliver the correct voltage is essential. All connected devices must be compatible with the voltage range provided by your PoE setup to maintain smooth operation. This attention to detail will help prevent power-related issues, ensuring that your network functions reliably and efficiently.
PoE Standards and Compatibility
Deploying a successful PoE network hinges on a thorough understanding of the relevant standards and ensuring compatibility between all components. The IEEE standards—802.3af, 802.3at, and 802.3bt—are designed to facilitate interoperability between equipment from different manufacturers. However, simply adhering to these standards does not automatically guarantee that all devices will work together seamlessly.
For example, a device built for the IEEE 802.3af standard, which provides up to 15.4 watts of power, might struggle or fail to operate correctly if connected to a PoE+ (802.3at) system, which supplies up to 30 watts, without proper configuration. This mismatch can lead to underpowering or even potential damage if the device is not designed to handle higher power levels.
Moreover, while many modern PoE devices are designed with backward compatibility in mind—meaning they can function with older, lower-power PoE standards—this doesn’t negate the need for careful planning. It’s always a prudent practice to verify the specific power requirements of each device before integrating it into your network. Ensuring that your PoE switches, injectors, and powered devices are all aligned in terms of standard and voltage range is crucial.
This alignment helps prevent issues like insufficient power delivery, which can lead to device malfunction or failure. By focusing on these compatibility checks, you can avoid common pitfalls and ensure that your PoE deployment is robust, efficient, and capable of meeting the demands of your network environment.
Conclusion
In conclusion, while 48V is a common voltage for PoE systems, it’s not always the exact voltage supplied. The actual voltage can vary based on the specific PoE standard, the length and quality of the Ethernet cable, and the type of devices being powered. Understanding these nuances is essential for anyone involved in setting up or maintaining a PoE network.
By paying attention to the voltage requirements and ensuring compatibility between all components, you can create a robust and reliable PoE system that meets the power needs of all your connected devices.
