How To Work A Temperature Gauge?
Key Takeaway
A temperature gauge works by detecting temperature changes and converting them into readable values. For example, a bi-metallic gauge uses two metals that expand differently, causing the needle to move. Liquid-filled gauges use the expansion of fluids to measure temperature.
Digital temperature gauges rely on sensors like thermocouples or RTDs to measure resistance changes caused by temperature variations. These readings are then displayed on a screen for easy interpretation.
Basic Functionality of a Temperature Gauge
A temperature gauge functions by detecting changes in temperature and converting them into a readable measurement. Most temperature gauges rely on physical or electrical principles such as thermal expansion or resistance. The temperature is then displayed either through a dial, digital screen, or other readable formats.

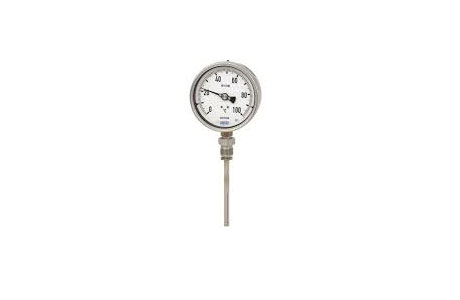

Thermal Expansion: This is the basis for many traditional temperature gauges like bimetallic thermometers, where two metals with different expansion rates are joined together. As temperature rises, the metal strips expand, causing the needle to move and indicate the temperature.
Resistance Change: Devices like RTDs or thermistors measure temperature by detecting changes in electrical resistance. As the temperature increases, the material’s resistance changes, which is then converted into a temperature reading.
In digital temperature gauges, sensors convert the temperature into an electrical signal, which is then displayed numerically on a screen. This provides an easy-to-read and precise temperature reading.
Components That Enable Functioning
Temperature gauges are made up of several components that work together to accurately measure temperature. The most critical parts include the sensor, transducer, and display system.
Sensor: This is the part of the gauge that detects temperature. In thermocouples, the sensor is a pair of wires made of different metals, which produce a voltage when exposed to heat. In RTDs, the sensor consists of a resistance material that changes its electrical resistance as temperature changes.
Transducer: In digital gauges, the transducer converts the physical change in temperature (such as thermal expansion or resistance change) into an electrical signal. This signal is then processed and displayed as a temperature reading.
Display System: This component shows the temperature. In mechanical gauges like bimetallic thermometers, a needle moves along a calibrated scale, while in digital systems, a screen displays the temperature numerically.
Each of these components plays a vital role in ensuring that the gauge functions properly and provides accurate readings.
Steps in Operating a Temperature Gauge
Operating a temperature gauge is straightforward, but to ensure accuracy, it’s important to follow the correct steps:
1. Install the Gauge Properly: Ensure that the temperature gauge is securely connected to the system or object you want to measure. Whether it’s a liquid tank, furnace, or HVAC system, make sure the sensor is in the correct location to provide an accurate reading.
2. Power On the Device: If you’re using a digital gauge, power it on by pressing the on button or flipping the switch. In mechanical gauges, ensure that they are calibrated and ready for use.
3. Check for Calibration: Calibration is essential for precise measurements. If the gauge isn’t reading accurately, it might need to be calibrated. Check the manufacturer’s instructions for specific calibration methods.
4. Take the Reading: Once the gauge is set up, it will begin reading and displaying the temperature. In analog gauges, the needle will indicate the temperature on the scale. In digital gauges, the temperature will appear on the screen.
5. Record or Monitor: Some gauges may be part of a larger system where continuous temperature monitoring is required. Regularly check the readings to ensure the system is operating within the desired temperature range.
By following these simple steps, you can effectively use temperature gauges for accurate measurements.
Troubleshooting Common Operational Issues
Sometimes temperature gauges may malfunction or provide inaccurate readings. Here are a few common issues and how to troubleshoot them:
No Reading or Blank Display: This could be due to a power issue or a faulty connection. Check that the gauge is correctly connected to the power source and the system. For digital gauges, ensure the battery is not drained.
Inaccurate Readings: If the temperature readings are incorrect, it could be due to calibration issues. Most gauges require recalibration to maintain accuracy. Check the user manual for calibration procedures.
Slow Response Time: If the gauge responds too slowly, the sensor might be damaged or exposed to extreme conditions. Ensure the sensor is functioning correctly, and check for any external factors that might affect its performance.
Regular maintenance and checking the gauge for wear and tear can prevent many common issues from arising.
Maintenance Tips for Optimal Performance
Proper maintenance is key to ensuring that temperature gauges function accurately over time. Here are some tips to keep your gauge in top condition:
1. Regular Calibration: Over time, temperature gauges may lose their accuracy. Regularly calibrate the gauge to ensure it provides precise readings.
2. Keep Sensors Clean: Dirt or debris on the sensor can affect its performance. Clean the sensor regularly according to the manufacturer’s instructions.
3. Check for Physical Damage: Inspect the gauge for any visible damage, especially to the sensor or display system. Damaged gauges should be replaced immediately to avoid inaccurate readings.
4. Avoid Exposure to Extreme Conditions: Many temperature gauges are designed for specific temperature ranges. Ensure that the gauge is used within its specified limits to avoid damage or inaccurate readings.
5. Follow Manufacturer Guidelines: Always refer to the manufacturer’s instructions for maintenance procedures and schedules. Adhering to these guidelines will extend the life of the gauge and maintain its accuracy.
By performing regular maintenance, you can keep your temperature gauge working at optimal levels for years to come.
Conclusion
In conclusion, working a temperature gauge involves understanding its design, functionality, and application. Temperature gauges are designed to measure and display temperature readings accurately, using various mechanisms such as bimetallic strips, thermistors, or thermocouples.
To effectively work a temperature gauge, users must ensure proper installation, calibration, and maintenance. Regularly checking the gauge for accuracy and functionality is crucial for reliable temperature readings. Familiarity with the specific type of gauge being used helps in interpreting its readings and making informed decisions. By mastering how to work a temperature gauge, users can ensure safety, efficiency, and quality control in their respective fields.
