How To Test Home Wiring Safely With A Multimeter?
Key Takeaway
To test home wiring safely with a multimeter, first turn off the main power supply to avoid shocks. Set the multimeter to the appropriate voltage mode (ACV) and choose a range higher than your expected household voltage (usually 230V or 120V).
Connect the red probe to the live wire and the black probe to the neutral wire. A proper connection should show the expected voltage. For grounding, place the black probe on the earth wire and the red probe on the live wire. The reading should match the standard voltage. If there’s no voltage or irregular readings, the wiring may need inspection. Always wear insulated gloves and work in a dry area to ensure safety. Double-check all connections before restoring power.

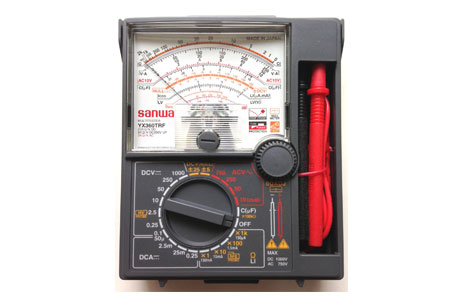

Preparing Your Multimeter for Wiring Tests
Before testing, it’s essential to ensure your multimeter is ready for the job. Proper setup minimizes errors and keeps you safe while handling electrical systems.
Steps to Prepare:
Inspect the Multimeter:
Check for visible damage or worn probes.
Ensure the batteries are fully charged.
Set the Dial Correctly:
For voltage tests, switch to AC voltage mode.
For continuity checks, set the dial to the continuity or resistance (Ω) mode.
Connect the Probes:
Insert the black probe into the COM port and the red probe into the VΩ port.
Test the Multimeter:
Use a known power source, like a functioning outlet or battery, to confirm the device is working properly.
Pro Tip:
Always use a multimeter rated for your home’s electrical system (e.g., CAT III or CAT IV for 120V/240V circuits). This ensures the device can handle the voltage safely.
How to Check for Voltage in Outlets and Switches
Checking for voltage helps you determine if a circuit is live and functioning correctly. This is the first step in diagnosing most wiring issues.
Steps to Measure Voltage:
Set the Multimeter:
Turn the dial to AC voltage and select a range higher than your home’s voltage (e.g., 250V for 120V systems).
Insert the Probes into the Outlet:
Place the black probe into the neutral slot (larger slot) and the red probe into the live slot (smaller slot).
Read the Display:
A properly functioning outlet should display around 120V in the U.S. or 230V in Europe.
Test Light Switches:
With the switch in the “ON” position, measure voltage between the live and neutral wires.
Warning Signs:
No Voltage: Indicates a tripped breaker, disconnected wire, or faulty outlet.
Fluctuating Voltage: Suggests loose connections or overloaded circuits.
Testing voltage helps identify live circuits and detect potential power supply issues quickly.
Testing Continuity in Wiring Connections
Continuity tests ensure that wiring connections are intact and unbroken. This is especially useful for diagnosing switches, outlets, and appliance connections.
Steps to Check Continuity:
Turn Off the Power:
Ensure the circuit breaker for the line you’re testing is switched off to avoid accidents.
Set the Multimeter to Continuity Mode:
Look for the soundwave symbol, which produces a beep when continuity is detected.
Test the Wires or Connections:
Place one probe at each end of the wire or connection point.
A beep indicates a complete circuit, while no sound suggests a break.
Applications:
Switches: Verify if the switch allows current to pass when turned on.
Wires: Check for internal breaks, especially in older or damaged cables.
By ensuring continuity, you can confirm that the wiring and connections are functioning as intended.
Identifying and Diagnosing Grounding Issues
Grounding is a critical aspect of any electrical system, protecting against electric shock and equipment damage. Diagnosing grounding problems with a multimeter is straightforward.
Steps to Test Grounding:
Switch the Multimeter to AC Voltage Mode:
Use the same range as you would for outlet voltage testing.
Place the Probes:
Insert the black probe into the ground slot (round hole) and the red probe into the live slot of the outlet.
Interpret the Reading:
A proper grounding system will show a voltage similar to the live-neutral reading.
No voltage indicates a grounding issue.
Additional Tests:
Measure resistance between the ground terminal and a known earth ground. Low resistance (less than 1Ω) confirms a good connection.
Identifying grounding problems early ensures the safety of your home’s electrical system and prevents hazardous conditions.
Safety Tips for Handling Home Wiring Tests
When working with home wiring, safety should always be your top priority. Mistakes can result in serious injuries or property damage.
Essential Safety Practices:
Turn Off the Power:
Always switch off the main breaker when testing for continuity or resistance.
Use Insulated Tools:
Ensure all tools, including the multimeter and probes, are rated for your system voltage.
Avoid Working Alone:
Have someone nearby in case of an emergency.
Double-Check Connections:
Ensure all probes and terminals are securely connected before taking readings.
Pro Tip:
Work methodically and test one circuit or connection at a time to avoid confusion and reduce the risk of errors.
By following these safety tips, you can confidently test your home’s wiring without unnecessary risks.
Conclusion
Testing home wiring with a multimeter is a valuable skill for diagnosing electrical issues and ensuring safety. From checking voltage to diagnosing grounding problems, the multimeter provides a versatile and reliable way to troubleshoot your home’s electrical system.
With the proper setup, clear steps, and adherence to safety practices, you can handle these tasks efficiently and effectively. Regularly testing your wiring not only prevents potential hazards but also prolongs the life of your electrical components, ensuring a safe and functional living environment.
