How To Set A Pressure Switch?
Key Takeaway
To set a pressure switch, locate the adjustment screws. Typically, there are two screws: one for the cut-in pressure (when the system starts) and one for the cut-out pressure (when it stops).
Use a screwdriver to adjust these settings based on your system’s requirements. Turn clockwise to increase pressure and counterclockwise to decrease. Always follow the manufacturer’s guidelines.

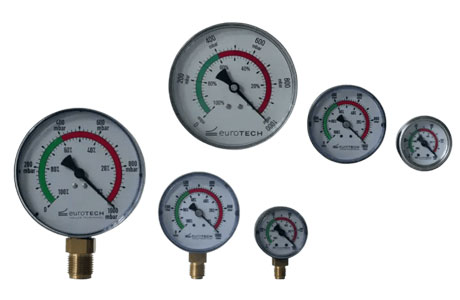

Tools Required for Setting a Pressure Switch
Setting a pressure switch requires certain tools to ensure accuracy and reliability. Having the right tools not only simplifies the process but also ensures that the switch is adjusted correctly to meet operational requirements. Common tools include pressure gauges to measure the system’s current pressure and wrenches to adjust the switch settings securely.
Additionally, a multimeter is often used to check electrical connectivity, ensuring that the switch is functioning as expected. Proper use of these tools is essential to prevent damage to the switch and the system it controls. This introduction aims to highlight the essential tools needed for setting a pressure switch, providing insights into their functions and importance in achieving precise pressure management.
Understanding Pressure Switch Setpoints
Pressure switch setpoints refer to the pressure levels at which the switch activates or deactivates. These setpoints are essential in ensuring the pressure within a system stays within the designated safe or operating range. Setting the correct cut-in and cut-out pressures is critical for the proper functioning of the system.
Cut-In Pressure: This is the pressure at which the switch turns on the equipment, such as starting the pump when the pressure drops below a certain point.
Cut-Out Pressure: This is the pressure at which the switch stops the equipment, like turning off the pump when the pressure exceeds a preset value.
Incorrectly setting the pressure switch can lead to overpressure or underpressure in the system, potentially causing equipment damage or energy inefficiency. The ideal setpoints vary depending on the type of system—pumps, tanks, or air compressors—and need to be tailored for specific operational needs.
When setting a pressure switch, ensure that both the cut-in and cut-out pressures are aligned with the required system performance. You can adjust these settings using the screws or dials provided on the pressure switch.
Step-by-Step Guide to Setting a Pressure Switch
Setting a pressure switch involves several careful steps to ensure optimal performance. Here’s a step-by-step guide to help you set it accurately:
1. Turn Off Power to the System: Always ensure the system is off before beginning the setup. This avoids accidents and protects you from electrical hazards.
2. Check Existing Pressure Readings: Use a pressure gauge or manometer to measure the current pressure in the system. This will give you a baseline reading for adjustment.
3. Locate the Adjustment Screws or Dials: Most pressure switches have a setpoint adjustment screw or dial. This is where you will set the pressure thresholds. Typically, there are two screws—one for the cut-in pressure and another for the cut-out pressure.
4. Adjust the Setpoints: Use a wrench or screwdriver to adjust the screws for the desired pressure points. Turn the screw clockwise to raise the pressure setting, and counterclockwise to lower it.
5. Set the Differential (If Applicable): Many pressure switches also have a differential setting that determines the range between cut-in and cut-out pressures. Adjust this setting if your system requires it to maintain a specific pressure band.
6. Reconnect the System: Once the adjustments are made, reconnect the system power and start the equipment. Observe the system to ensure it is operating correctly within the new pressure range.
7. Test the Switch: Ensure that the switch activates and deactivates at the right pressures by monitoring the system and watching for the switch’s response.
By following this step-by-step process, you ensure that the pressure switch is correctly calibrated for the specific requirements of your system.
Testing the Settings for Accuracy
After setting the pressure switch, it’s important to test it to ensure it functions properly. Here’s how to perform the test:
1. Monitor the Pressure: Turn on the system and observe the pressure gauge to check if the switch activates or deactivates at the desired pressure levels. The system should engage when the pressure reaches the cut-in point and disengage once it hits the cut-out point.
2. Check for Pressure Fluctuations: If there are any significant fluctuations or the switch doesn’t engage or disengage at the correct pressure, adjustments may be needed. Small fluctuations are normal, but the system should maintain pressure within the set range.
3. Observe Timing: For systems like pumps, ensure that the pressure switch allows for smooth cycling without excessive on/off cycles. If the switch is cycling too frequently, the differential may be too narrow, and you may need to increase the pressure difference.
4. Fine-Tune the Settings: If the system isn’t working as expected, recheck the setpoints and adjust them slightly until you achieve accurate operation. Also, verify the differential settings to ensure they match the system requirements.
Testing the pressure switch regularly and after every adjustment ensures that the system operates efficiently without unnecessary stress or energy waste. Ensure the switch operates in accordance with your system’s requirements for reliability.
Troubleshooting Issues During Setup
While setting up a pressure switch, you may encounter a few common issues. Here’s how to troubleshoot:
1. No Switch Activation: If the switch doesn’t activate or deactivate when expected, first check the power supply to ensure the system is operational. If the system is powered, inspect the connections and the pressure switch settings. Ensure the setpoints are correctly adjusted and that the switch is wired properly.
2. Erratic Switching: If the switch activates and deactivates too frequently, the differential setting may be too narrow. Adjust the differential to allow for a wider pressure range.
3. Pressure Reading Discrepancies: If the pressure readings on the gauge don’t align with the switch activation points, it may be due to a faulty gauge, wiring issues, or miscalibrated setpoints. Inspect all connections and recalibrate the settings.
4. Leakages: Ensure that the switch is tightly installed and that no leaks are present in the system. Leaks can cause false readings and prevent the switch from performing properly.
By identifying and addressing these issues during the setup, you ensure that the switch works as intended, improving overall system performance.
Conclusion
Setting a pressure switch involves adjusting its setpoints to control the activation and deactivation of electrical contacts based on desired pressure levels. This process requires understanding the system’s pressure requirements and utilizing the switch’s adjustment mechanisms, such as screws or dials, to achieve the correct settings.
Accurate pressure switch settings are crucial for maintaining system efficiency and preventing damage due to incorrect pressure levels. By carefully configuring the switch according to the application’s needs, operators can ensure reliable performance and protect equipment from potential pressure-related issues.
