How To Measure Temperature With A Gauge?
Key Takeaway
To measure temperature with a gauge, place the sensor or probe in contact with the system or environment you want to monitor. For analog gauges, the needle will move to display the temperature on the scale.
In digital gauges, the sensor reads the temperature and displays it on a screen. Ensure the gauge is calibrated and correctly installed for accurate results.
Preparing for Accurate Measurement
The first step in ensuring an accurate temperature measurement is preparing the environment and the gauge. Start by selecting the right temperature gauge for your application. Different temperature ranges and environments require different types of gauges. For example, a mercury thermometer may be appropriate for low to medium temperatures, while thermocouples or RTDs are more suited for high temperatures in industrial processes.
Additionally, make sure the area around the object being measured is free of heat sources or drafts that could skew the results. External factors like air currents, humidity, and nearby hot or cold surfaces can all affect readings, so it’s crucial to minimize these influences.
Before using the temperature gauge, ensure that it’s clean and free of debris. Any contaminants on the sensor can interfere with the readings, especially for delicate digital sensors or thermocouples. If the gauge has a probe, make sure it’s in good condition and not damaged, as this can cause inaccurate readings.
Steps to Measure Temperature Correctly
Once your temperature gauge is prepared, you can begin the measurement process. The steps may vary depending on the type of gauge, but the basic procedure is as follows:
1. Positioning the Gauge: Position the gauge or probe at the correct spot to get an accurate reading. If you’re measuring the temperature of a liquid, for instance, make sure the probe is submerged at the right depth. For solid objects, place the sensor at the core of the material, if possible. Avoid placing the sensor at the surface, as it may not reflect the true internal temperature.
2. Allowing Sufficient Time: Give the gauge enough time to stabilize before reading the temperature. A rushed measurement might not provide the most accurate reading, as some gauges need time to adjust to the temperature of the object or environment.
3. Monitoring the Readout: Once the gauge has stabilized, read the measurement on the digital display or the analog scale. For mechanical thermometers, make sure the liquid has settled, or the dial has stopped moving to get an accurate reading.
It’s important to follow these steps carefully, as even small errors in positioning or timing can lead to incorrect measurements.
Calibrating a Temperature Gauge
Calibration is a critical step in ensuring that your temperature gauge provides accurate readings over time. Temperature gauges, especially in industrial applications, can drift or become less accurate due to wear, environmental changes, or long-term usage. Regular calibration ensures that your gauge remains reliable.
To calibrate a temperature gauge, you must compare its readings to a known standard or reference point. For instance, you can use an ice bath (0°C or 32°F) or boiling water (100°C or 212°F) as reference points for calibration. If the gauge shows discrepancies from the reference, adjustments are necessary. Some gauges come with calibration instructions and can be adjusted manually, while others require professional calibration equipment.
Calibration intervals depend on the usage and environment. For industrial applications, you may need to calibrate the gauge more frequently due to harsher conditions. By ensuring your temperature gauge is calibrated, you prevent discrepancies and maintain the accuracy of your measurements.
Interpreting Temperature Readings
Once the temperature gauge is properly calibrated and measurements have been taken, interpreting the readings is the next step. For digital temperature gauges, this is straightforward—just read the temperature displayed on the screen. However, with analog gauges, you’ll need to carefully assess the needle’s position or the level of liquid in a thermometer.

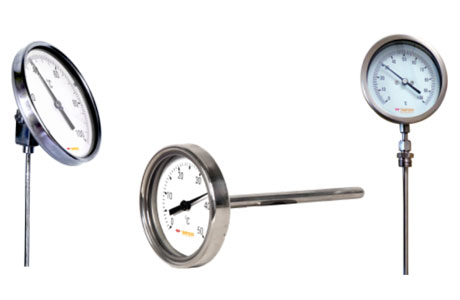

For mechanical gauges, like bimetallic strip thermometers, it’s important to understand the scale. Make sure you’re reading the temperature at the correct angle to avoid parallax errors, where the needle appears in a different position based on your viewing angle.
Be aware of factors that might influence readings, such as ambient temperature or pressure changes. For example, a high ambient temperature might cause a gauge to read higher than actual values. Therefore, taking the surrounding conditions into account is key to interpreting the readings correctly.
In some cases, calibration errors can cause misinterpretation. Therefore, always ensure that your gauge has been recently calibrated to avoid any discrepancies in readings.
Common Errors and How to Avoid Them
Despite their accuracy, temperature gauges can produce erroneous results if not used correctly. Here are some common errors and how to avoid them:
1. Incorrect Placement: Placing the gauge at the wrong spot can lead to inaccurate readings. Always place the sensor or probe in the correct position, depending on the material being measured.
2. Environmental Factors: External elements like drafts, direct sunlight, or proximity to heat sources can influence readings. Ensure the environment is stable and free of temperature disturbances.
3. Not Allowing Enough Time for Stabilization: If the gauge isn’t given enough time to adjust to the temperature, readings may not be accurate. Always allow the sensor time to stabilize before reading the measurement.
4. Using the Wrong Gauge for the Temperature Range: Using a temperature gauge outside of its specified range can lead to inaccurate results and even damage the device. Always ensure the gauge is suitable for the specific temperature range you are working with.
By being mindful of these errors and taking steps to avoid them, you can ensure reliable and accurate temperature measurements.
Conclusion
In conclusion, measuring temperature with a gauge involves using a device that detects temperature changes and converts them into readable data. This process can be mechanical, electronic, or digital, depending on the type of gauge. Accurate temperature measurement is essential in various fields, including meteorology, medicine, and engineering.
To achieve precise readings, it is important to select the appropriate gauge for the specific application and ensure it is properly calibrated. By understanding how to measure temperature with a gauge, users can effectively monitor environmental and operational conditions. This knowledge is crucial for maintaining safety, efficiency, and quality control in numerous industries.
