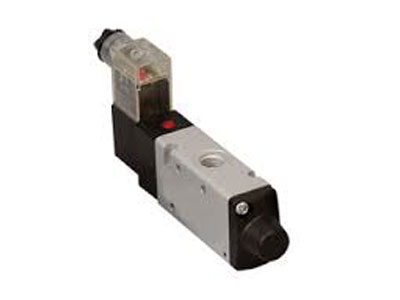

How To Control A Solenoid Valve?

Key Takeaway

To control a solenoid valve, the key is managing the voltage supplied to its electromagnetic coil. When the coil is energized, it generates a magnetic field that moves a plunger, opening or closing the valve’s orifice to control the flow of fluids or gases. Adjusting the voltage applied to the coil directly affects the strength of the magnetic field, thus controlling the valve’s action.

For more precise control, methods like low-side switching or using a MOSFET transistor are commonly employed. In systems like Arduino, low-side switching interrupts the circuit between the solenoid and ground, while MOSFETs allow for digital control, enabling the solenoid to be turned on and off based on the input signals. These methods are effective for integrating solenoid valves into automated systems.

Manual vs. Automatic Control of Solenoid Valves

Solenoid valves can be controlled manually or automatically, depending on the application and system requirements. Manual control involves physically operating the valve using a lever or switch to open or close the valve. This method is simple and effective in small systems or where precision is less critical.

On the other hand, automatic control uses electrical signals to activate the solenoid, causing the valve to open or close without human intervention. Automatic control is more common in modern industrial applications, as it allows for more precise and reliable operation, especially in systems requiring consistent performance. Automation is often preferred for larger, more complex systems, where manual control would be inefficient.

FAQ Image

Using Electrical Signals for Precise Control

Electrical signals are central to the automatic control of solenoid valves. These signals, typically in the form of DC or AC voltage, energize the solenoid coil and create a magnetic field that moves the plunger or actuator inside the valve. This movement controls the flow of fluids or gases through the valve, either opening or closing it.

For precise control, the electrical signal’s strength and timing must be carefully calibrated. In some cases, pulse-width modulation (PWM) is used to vary the signal, allowing for fine-tuned control over valve opening and closing. This approach is particularly useful in applications requiring variable flow rates or highly accurate control, such as in the automotive or manufacturing industries.

Integration of Solenoid Valves with Programmable Logic Controllers (PLCs)

The integration of solenoid valves with programmable logic controllers (PLCs) allows for highly efficient and automated control in industrial settings. PLCs are digital computers used to control machines and processes, and they can be programmed to send specific signals to solenoid valves based on real-time system conditions.

When a solenoid valve is connected to a PLC, the controller can manage the valve’s operation based on factors like sensor data, input signals, and pre-set logic. This integration ensures that the solenoid valve operates in sync with other components of the system, improving efficiency and minimizing human error. It also provides remote control and monitoring capabilities, which is essential for large-scale industrial systems.

Importance of Flow and Pressure Regulation in Control

Flow and pressure regulation are key factors in controlling solenoid valves effectively. The solenoid valve’s ability to control the flow of fluids or gases directly depends on the pressure in the system. If the pressure is too low or too high, it can affect the valve’s performance, leading to leaks, slow response times, or malfunction.

To ensure optimal valve operation, flow and pressure must be continuously monitored and adjusted. For example, in systems with fluctuating pressure, pressure-regulating devices may be used to maintain consistent pressure levels that allow the solenoid valve to function properly. Proper flow regulation also ensures that the system operates efficiently, with minimal energy loss and optimal throughput.

Troubleshooting Common Control Issues in Solenoid Valves

Despite their reliability, solenoid valves can sometimes face control issues. One common problem is the failure to open or close properly, often caused by insufficient voltage, coil damage, or debris blocking the valve mechanism. Another issue can arise from incorrect wiring or a malfunction in the PLC control signal, leading to erratic behavior.

Regular maintenance, including cleaning the valve and checking the electrical components, can help prevent many of these issues. If problems persist, it’s important to verify the voltage and current specifications to ensure they align with the solenoid valve’s requirements. Calibration may also be needed to restore precise control.

Conclusion

Efficient solenoid valve control is crucial for maintaining optimal system performance. Whether manually or automatically controlled, solenoid valves play a vital role in fluid and gas management across various industries. By integrating solenoid valves with PLCs and ensuring proper flow and pressure regulation, operators can maximize efficiency and minimize operational issues. Proper troubleshooting and regular maintenance also help maintain reliable control over the valve’s performance, ensuring smooth and uninterrupted system operation.
