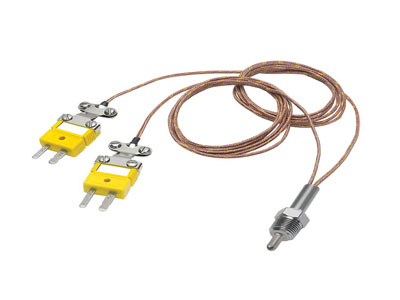

How To Calculate RTD?
Key Takeaway
To calculate the temperature using an RTD, you use the Callendar-Van Dusen equation. This formula relates the resistance of the RTD to the temperature. For a platinum RTD, the equation is:
R(T)=R0(1+A⋅T+B⋅T2+C⋅(T−100)⋅T3)R(T) = R_0 (1 + A cdot T + B cdot T^2 + C cdot (T – 100) cdot T^3)R(T)=R0(1+A⋅T+B⋅T2+C⋅(T−100)⋅T3)
Here:
• R(T)R(T)R(T) is the resistance at temperature TTT.
• R0R_0R0 is the resistance at 0°C (usually 100 ohms for a PT100).
• A,B,A, B,A,B, and CCC are constants specific to the RTD material.
For example, if you have a PT100 RTD and measure its resistance as 138.5 ohms, you would plug this value into the equation to solve for TTT. This calculation may involve solving a quadratic equation or using numerical methods for higher accuracy. This method helps ensure precise temperature measurements in various applications.
Introduction to RTD Calculation
Resistance Temperature Detectors (RTDs) are vital in many industrial applications due to their accuracy and reliability in measuring temperature. Calculating the temperature from an RTD involves understanding the relationship between temperature and electrical resistance. RTDs, typically made of platinum, follow a predictable change in resistance with temperature, which can be mathematically modeled. Knowing how to accurately calculate RTD readings is crucial for engineers and technicians to ensure precise temperature control and monitoring in various processes. This guide will walk you through the basic principles, formulas, and tools needed to calculate RTD values accurately.
Basic RTD Formulas
The primary formula used for calculating the temperature from an RTD is based on the Callendar-Van Dusen equation for platinum RTDs. This equation relates the resistance of the RTD to the temperature and is essential for accurate temperature measurement in industrial applications. For temperatures ranging from 0°C to 850°C, the equation is typically expressed as:
R(T)=R0(1+A⋅T+B⋅T2+C⋅(T−100)⋅T3)R(T) = R_0 (1 + A cdot T + B cdot T^2 + C cdot (T – 100) cdot T^3)R(T)=R0(1+A⋅T+B⋅T2+C⋅(T−100)⋅T3)
Where:
• R(T)R(T)R(T) is the resistance at temperature TTT
• R0R_0R0 is the resistance at 0°C (usually 100 ohms for a PT100)
• A,B,A, B,A,B, and CCC are constants specific to the RTD material. For platinum: A = 3.9083 x 10^-3, B = -5.775 x 10^-7, and C = -4.183 x 10^-12 for temperatures below 0°C and zero for temperatures above 0°C.
For temperatures below 0°C, the equation adjusts slightly to include the C coefficient, which accounts for the RTD’s non-linear behavior in sub-zero conditions. Understanding these constants and how they affect the RTD’s resistance is crucial for accurate temperature calculations. This formula ensures that temperature readings are precise, which is critical in applications where maintaining exact temperatures is necessary.
Examples of RTD Calculations
Let’s consider a practical example to illustrate how these formulas are applied. Suppose you have a PT100 RTD, and you measure its resistance to be 138.5 ohms. To find the corresponding temperature, you would rearrange the Callendar-Van Dusen equation to solve for TTT:
138.5=100(1+3.9083×10−3⋅T+(−5.775×10−7)⋅T2)138.5 = 100 (1 + 3.9083 times 10^{-3} cdot T + (-5.775 times 10^{-7}) cdot T^2)138.5=100(1+3.9083×10−3⋅T+(−5.775×10−7)⋅T2)
This quadratic equation can be solved using standard algebraic methods or a scientific calculator. For simplicity, let’s approximate and solve for TTT:
1.385=1+3.9083×10−3⋅T+(−5.775×10−7)⋅T21.385 = 1 + 3.9083 times 10^{-3} cdot T + (-5.775 times 10^{-7}) cdot T^21.385=1+3.9083×10−3⋅T+(−5.775×10−7)⋅T2 0.385=3.9083×10−3⋅T+(−5.775×10−7)⋅T20.385 = 3.9083 times 10^{-3} cdot T + (-5.775 times 10^{-7}) cdot T^20.385=3.9083×10−3⋅T+(−5.775×10−7)⋅T2
To solve this equation, you can use a quadratic formula or numerical methods. By solving the equation, you find that T≈100°CT approx 100°CT≈100°C. This approximation demonstrates the practical application of the Callendar-Van Dusen equation. Practicing with different resistance values and temperatures will enhance your proficiency in RTD calculations, ensuring accurate temperature readings in your industrial applications.
Tools and Software for RTD Calculation
While manual calculations are fundamental for understanding the principles behind RTD temperature measurement, using tools and software can significantly simplify and expedite the process. There are various digital tools and software available that can accurately calculate RTD values, making them invaluable for engineers and technicians.
Online calculators allow you to input the RTD resistance and automatically compute the temperature based on standard equations. These tools are user-friendly and accessible, making them a convenient option for quick calculations. Additionally, many industrial control systems integrate sophisticated software that interfaces directly with RTD sensors. These systems provide real-time temperature readings, log data, set alarms, and integrate with broader automation systems for process control.
For example, PLC (Programmable Logic Controller) systems often include modules that handle RTD inputs, converting resistance measurements into accurate temperature readings. These systems enhance the efficiency of temperature monitoring by providing continuous, real-time data. They also reduce the likelihood of human error, ensuring that temperature measurements are reliable and precise.
Using these tools can minimize errors and enhance the efficiency of temperature monitoring systems. Familiarizing yourself with these technologies is essential for modern engineers and technicians. By leveraging advanced tools and software, you can ensure that your RTD calculations are accurate, reliable, and efficient, supporting optimal performance in your industrial processes.
Troubleshooting Calculation Errors
Errors in RTD calculations can arise from various sources, including incorrect resistance measurements, poor connections, or environmental factors affecting the RTD’s performance. To troubleshoot and resolve these errors, follow these steps:
Verify Connections: Ensure all electrical connections are secure and free from corrosion or damage. Loose or poor connections can introduce resistance errors.
Check Calibration: Regularly calibrate your RTD sensors and associated instruments to maintain accuracy. Calibration against a known temperature standard can help identify and correct discrepancies.
Account for Lead Resistance: In 2-wire RTD configurations, lead wire resistance can significantly impact measurements. Use 3-wire or 4-wire configurations to compensate for this error.
Environmental Factors: Ensure the RTD is not exposed to conditions outside its specified range, such as excessive vibration, moisture, or extreme temperatures that could affect its accuracy.
Use Accurate Constants: Verify that the constants (A, B, and C) used in your calculations are correct for the specific RTD type and manufacturer.
Conclusion
Accurate RTD calculations are vital for precise temperature measurement and control in industrial applications. Understanding the underlying principles and formulas, practicing manual calculations, and leveraging digital tools and software are all essential components of mastering RTD calculations. By following best practices and troubleshooting common errors, engineers and technicians can ensure reliable temperature monitoring and enhance the efficiency and safety of their processes. Selecting the right tools and staying informed about the latest advancements in RTD technology will further support accurate and effective temperature measurement solutions.
