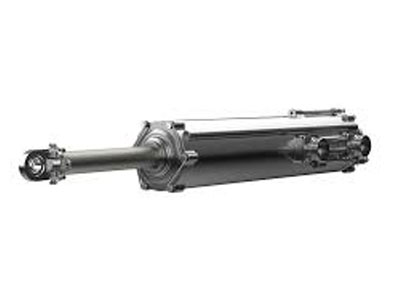

How To Adjust An Air Cylinder?
Key Takeaway
To adjust an air cylinder, you first need to ensure the system is powered off and the air supply is disconnected. Start by adjusting the stroke length using the cylinder’s end-of-stroke adjusters. These adjusters control how far the piston moves within the cylinder. Turn them to increase or decrease the stroke length according to your application needs.
Next, you can adjust the speed of the cylinder’s movement by modifying the flow control valve. By adjusting the air flow rate, you control how quickly the piston moves in and out. Finally, check the air pressure with a pressure regulator. Adjust the pressure to ensure it is within the recommended range for optimal cylinder performance. Regular adjustments and maintenance help keep the air cylinder running smoothly and efficiently.
Understanding the Need for Air Cylinder Adjustment
Adjusting an air cylinder is essential to ensure it operates efficiently and performs its intended tasks with precision. Air cylinders are widely used in industrial automation, where even minor misalignments or improper settings can lead to performance issues, increased wear, or system failure. Proper adjustments help achieve the desired motion, whether it’s pushing, pulling, or holding a load.
The main reasons for adjusting an air cylinder include optimizing stroke length, regulating speed, and ensuring alignment with connected components. For example, if the stroke is too short, the actuator may not complete its motion, leading to incomplete operations. On the other hand, misaligned cylinders can cause uneven wear on seals and rods, reducing the system’s lifespan.
Understanding why adjustments are necessary is the first step in maintaining a reliable and efficient pneumatic system. Regular inspections and precise tuning are key to preventing downtime and ensuring smooth operations in any industrial setup.
Tools and Equipment Required for Adjustment
Before adjusting an air cylinder, having the right tools and equipment on hand is crucial. These include basic hand tools like wrenches, screwdrivers, and Allen keys for loosening and tightening components. Measuring tools such as rulers, calipers, or micrometers help ensure accurate adjustments, especially when dealing with stroke length and alignment.
For setting the speed of the cylinder, a flow control valve adjustment tool may be needed. This tool ensures precise regulation of airflow to the cylinder, allowing for consistent and smooth motion. In some cases, a pressure gauge might also be necessary to verify that the system operates within the recommended pressure range.
Additionally, lubricants and sealants are useful for maintaining seals and preventing leaks during or after adjustment. Safety gear like gloves and goggles should always be used to protect against potential hazards when working with pressurized systems. With these tools, adjustments can be performed efficiently and safely, minimizing the risk of errors.
Steps to Adjust the Stroke Length
Adjusting the stroke length of an air cylinder is a straightforward process but requires precision. Follow these steps:
Power Down the System: Before making any adjustments, disconnect the cylinder from its air supply to avoid accidental movement.
Locate the Adjustment Mechanism: Most cylinders have stroke adjustment screws or mechanical stops that limit the piston’s travel. These are usually located at the ends of the cylinder.
Loosen the Locking Mechanism: Use the appropriate tool to loosen any locking nuts or screws securing the adjustment mechanism.
Adjust the Stroke: Turn the adjustment screw or move the stop to the desired position. Measure the stroke length using a ruler or caliper to ensure accuracy.
Secure the Adjustment: Tighten the locking mechanism to secure the new stroke length.
Test the Cylinder: Reconnect the air supply and test the cylinder’s motion to confirm that the adjustment meets the desired requirements.
Proper stroke adjustment ensures the cylinder operates within its design limits, reducing the risk of overextension or incomplete motion.
Setting the Speed of the Air Cylinder
Regulating the speed of an air cylinder is another critical adjustment that directly impacts system performance. The speed can be controlled using flow control valves, which regulate the rate of air entering or exiting the cylinder. Here’s how to adjust it:
Identify the Flow Control Valve: Locate the flow control valve connected to the air cylinder. These are typically installed on the inlet or exhaust ports.
Turn the Adjustment Knob: Slowly turn the valve’s adjustment knob or screw to increase or decrease airflow. Turning clockwise generally reduces airflow, slowing the cylinder, while counterclockwise increases it.
Monitor the Speed: Observe the cylinder’s motion while adjusting the valve. Ensure the speed is consistent and matches the application’s requirements.
Fine-Tune for Precision: Make incremental adjustments and test the system to achieve the desired speed without jerky or abrupt movements.
Secure the Valve Settings: Once satisfied with the speed, secure the valve to prevent accidental changes during operation.
Setting the correct speed not only improves efficiency but also reduces wear and tear on the cylinder, extending its lifespan.
Ensuring Proper Alignment and Sealing
Alignment and sealing are crucial for the smooth operation of an air cylinder. Misaligned cylinders can cause uneven wear on the piston rod and seals, while improper sealing leads to air leaks and reduced efficiency. Follow these steps to ensure proper alignment and sealing:
Inspect the Mounting: Check that the cylinder is mounted securely and aligned with the load or connected components. Use a straight edge or laser alignment tool for accuracy.
Adjust the Mounting Brackets: If misalignment is detected, loosen the mounting brackets and realign the cylinder to match the system’s geometry. Tighten the brackets once aligned.
Examine the Seals: Inspect the cylinder’s seals for signs of wear, cracks, or leaks. Replace damaged seals immediately to prevent air loss.
Lubricate the Seals: Apply a compatible lubricant to the seals to reduce friction and ensure smooth motion.
Test for Leaks: After adjustment, reconnect the air supply and test the cylinder. Listen for hissing sounds or use a leak detection spray to identify air leaks.
Proper alignment and sealing not only enhance performance but also ensure the system operates safely and efficiently over time.
Conclusion
Adjusting an air cylinder is essential for maintaining its efficiency, precision, and longevity. By optimizing stroke length, regulating speed, and ensuring proper alignment and sealing, engineers can enhance the performance of pneumatic systems and prevent unnecessary wear and downtime.
Understanding the adjustment process is a valuable skill for engineers, enabling them to tailor air cylinders to meet specific application requirements while ensuring smooth and reliable operation across various industrial settings.
