How Many Types Of Directional Control Valves Are There?
Key Takeaway
Directional Control Valves (DCVs) are essential in hydraulic and pneumatic systems, categorized mainly into 2-way, 3-way, 4-way, and 5-way valves. 2-way valves control flow in a single direction, while 3-way valves redirect fluid between two paths, commonly used in single-acting cylinders. 4-way valves manage bidirectional flow for double-acting cylinders, and 5-way valves add an exhaust port for enhanced control.
Additionally, DCVs can be classified by their internal design, such as spool, poppet, or rotary valves, and by actuation methods like manual, mechanical, electrical, or pneumatic. Their versatility and configurations allow precise control of fluid flow, essential for various industrial and automation processes.
Overview of Common Types of Directional Control Valves
Directional control valves are broadly categorized by their function and mechanism. Common types include:
Check Valves: These allow flow in one direction only, preventing backflow.
Shuttle Valves: These direct flow from two inputs to a single output, often used in pneumatic systems.
Spool Valves: These have a spool inside the valve body to control flow direction, commonly used in hydraulic systems.
Poppet Valves: These use a poppet to seal and control flow, ideal for high-pressure applications.
Each type serves a specific purpose, from simple flow direction control to complex multi-directional operations. Understanding these types helps in matching the valve to the system’s functional requirements.
Classification Based on Port Numbers (e.g., 2/2, 3/2, 4/2, 4/3)
Directional control valves are often classified by the number of ports and positions they offer:
2/2 Valve: Two ports and two positions, used for simple on/off operations.
3/2 Valve: Three ports and two positions, ideal for controlling single-acting cylinders.
4/2 Valve: Four ports and two positions, suitable for double-acting cylinders.
4/3 Valve: Four ports and three positions, providing a neutral position for enhanced control.
The numbers indicate the valve’s complexity and functionality. For instance, a 3/2 valve can control both the pressurization and exhaust of a cylinder, while a 4/3 valve can offer advanced control by isolating the system in its neutral position.
Selecting the correct port configuration is crucial for achieving the desired motion and flow control in your application.
Types Based on Actuation (e.g., Manual, Solenoid, Pilot-Operated)
Directional control valves can also be categorized by their actuation methods:

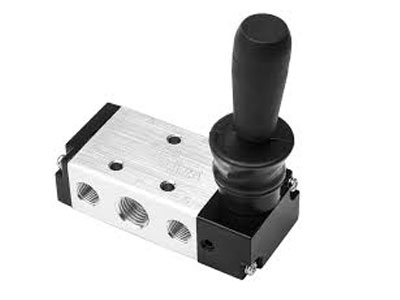

1. Manual Actuation: Operated by hand or foot levers, these are simple and cost-effective but less suitable for automation.
2. Solenoid Actuation: Uses electric solenoids to shift the valve, ideal for automated systems due to quick response times.
3. Pilot-Operated Actuation: Relies on pneumatic or hydraulic pilot pressure to control the valve, commonly used in high-pressure systems.
4. Mechanical Actuation: Activated by cams or rollers, often found in machinery with repetitive cycles.
Each actuation type offers unique benefits. Solenoid-actuated valves, for instance, excel in automated environments, while pilot-operated valves are preferred for high-pressure applications where precision and reliability are critical.
Applications and Suitability of Different Types of Valves
Directional control valves play a vital role across industries, and their suitability varies by type:
2/2 Valves: Commonly used in water supply systems or simple on/off control.
3/2 Valves: Found in packaging machines, controlling pneumatic tools, and single-acting cylinders.
4/2 Valves: Widely used in automotive and manufacturing industries for controlling double-acting cylinders.
4/3 Valves: Preferred in advanced hydraulic systems where neutral positions are required for safety and control.
Choosing the right valve depends on the application’s complexity. For instance, industries like robotics or aerospace require precise control and often rely on solenoid-actuated 4/3 valves, while simpler systems can use manually operated 2/2 valves.
Selecting the Right Type of Directional Control Valve
Choosing the correct directional control valve is critical for the efficiency and reliability of your system. Consider these factors:
1. Application Needs: Understand the type of motion (e.g., single-acting or double-acting) and required flow rate.
2. System Pressure: Ensure the valve can handle the operating pressure of your system.
3. Actuation Preference: Decide between manual, solenoid, or pilot-operated valves based on system automation.
4. Environmental Conditions: For harsh environments, choose valves with robust construction and sealing.
5. Cost-Effectiveness: Balance functionality with budget constraints without compromising performance.
By aligning these factors with your system’s requirements, you can select a valve that ensures optimal performance, durability, and safety.
Conclusion
Understanding the types of directional control valves helps in optimizing pneumatic and hydraulic systems. From simple 2/2 valves for basic operations to advanced 4/3 valves for complex systems, each type serves a unique purpose.
By selecting the right valve based on ports, actuation, and application needs, you can enhance system efficiency and ensure reliable performance. This knowledge is essential for engineers to make informed decisions and maintain robust systems.
