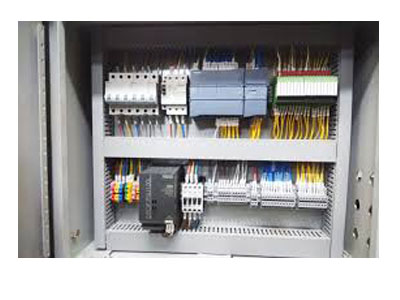

How Does An MCC Panel Work?
Key Takeaway
An MCC panel, or Motor Control Center panel, works by centralizing control for multiple electric motors. It receives power from the main electrical supply and distributes it through a common power bus to various motor control units. Each unit, called a combination starter, contains essential components like motor starters, fuses or circuit breakers, overload relays, and power disconnects.
When activated, the MCC panel ensures that motors receive the appropriate power and protection. The motor starters manage the start, stop, and speed of motors, while overload relays prevent damage by detecting excess current. This setup allows operators to efficiently control and monitor motor operations from a single location, ensuring safety, reliability, and ease of maintenance. MCC panels are widely used in industrial and commercial facilities for organized and efficient motor management.
Overview of MCC Panel Components
MCC panels are made up of a variety of components that work in unison to ensure smooth motor control and power distribution. The main elements of an MCC panel include:
Motor Starters: Devices that manage the starting and stopping of motors, protecting them from overloads and electrical faults.
Circuit Breakers: Safety devices that automatically interrupt electrical flow during overloads or short circuits to prevent damage and ensure safety.
Contactors and Relays: Used to control the operation of motors and other equipment. Contactors handle the high current required to switch motors on and off, while relays monitor and control functions.
Bus Bars: Conductors that distribute electrical power throughout the MCC panel and supply different circuits.
Control Panels: The section where operators interact with the MCC, including push buttons, indicator lights, and displays.
Power Supply Unit: Ensures a stable power supply to the control and monitoring circuits within the panel.
Each of these components plays a vital role in ensuring the efficient and safe operation of the MCC pane
Process of Power Distribution
The primary function of an MCC panel is to distribute electrical power from the main source to various motor circuits. This distribution is carried out using bus bars, which serve as the main pathways for electrical current. Once power enters the MCC panel, it is directed through the bus bars to the individual motor circuits.
From there, the power passes through motor starters, which control the voltage and current supplied to the motors. Depending on the type of starter used (e.g., direct-on-line, star-delta, or autotransformer), the power distribution can be adjusted to match the motor’s operational needs. Circuit breakers provide an additional layer of protection by cutting off the power supply in case of a fault, preventing potential damage to the motor and the system.
By ensuring that power is distributed efficiently and safely, MCC panels help maintain consistent motor performance while protecting the equipment and operators.
Role of Starters and Circuit Breakers
Motor starters and circuit breakers are two of the most critical components within an MCC panel, each serving distinct yet complementary functions.
Starters: Motor starters are responsible for the smooth starting and stopping of motors. They help regulate the amount of current supplied to the motor during startup, preventing sudden electrical surges that could damage the motor. Some starters, like variable frequency drives (VFDs), allow for better energy management and can control the motor’s speed and torque, optimizing energy use and enhancing operational efficiency.
Circuit Breakers: Circuit breakers are crucial for protection. They monitor the electrical flow and automatically disconnect the circuit if they detect an overload or short circuit. This action prevents potential damage to the MCC components and motor, ensuring system integrity and operator safety. Circuit breakers can be reset after tripping, which allows for easy recovery and continued operation once the fault is cleared.
These components work in harmony to manage power distribution effectively and maintain system safety.
Interaction with Automation Systems
MCC panels are often integrated with industrial automation systems to enable precise control over various processes. This interaction allows operators to monitor and adjust motor performance remotely, automate sequence operations, and collect data for analysis.
Automation systems often use programmable logic controllers (PLCs) to communicate with MCC panels, sending signals to start, stop, or adjust motor operations based on real-time data and preset conditions. The integration of MCC panels with automation systems allows for:
Remote Monitoring: Operators can view the status of motors, receive alerts for faults, and monitor performance without needing to be on-site.
Centralized Control: A single control point manages multiple motors, leading to streamlined operation and easier troubleshooting.
Optimized Operations: Automated adjustments based on system feedback help maintain optimal performance, reduce energy consumption, and prevent wear and tear on equipment.
This interaction between MCC panels and automation systems significantly enhances productivity, efficiency, and the safety of industrial processes.
Monitoring and Maintenance Procedures
Routine monitoring and maintenance are vital to ensure that MCC panels operate effectively and remain in good working condition. Maintenance procedures typically include:
Visual Inspections: Regular checks for signs of wear, corrosion, or loose connections.
Testing Circuit Breakers: Verifying that circuit breakers trip correctly under simulated overload conditions.
Cleaning: Removing dust and debris from the panel to prevent overheating and component failure.
Component Checks: Ensuring that components such as motor starters, relays, and contactors are in good working order.
Record Keeping: Documenting inspections and repairs to track the panel’s performance over time.
By performing these monitoring and maintenance procedures, operators can identify potential issues early, preventing costly downtime and extending the lifespan of the MCC panel.
Conclusion
Understanding how an MCC panel works is essential for maintaining efficient and safe motor control in industrial settings. From power distribution and motor starters to the integration with automation systems and routine maintenance, MCC panels provide a comprehensive solution for managing electrical motors. Their robust components, efficient power distribution, and adaptability make them indispensable for modern industrial operations.
