How Does A Safety Switch Work?

Key Takeaway

A safety switch is a device that acts as a rapid protector against electrical accidents. It works by continuously monitoring the flow of electricity through a circuit. If it detects any imbalance, such as a current leakage that might occur from faulty wiring, appliances, or power points, the safety switch quickly cuts off the electricity supply—usually within milliseconds. This immediate action helps prevent electric shocks, making safety switches essential for electrical safety in homes and workplaces. Unlike circuit breakers and fuses, which protect equipment, safety switches are designed specifically to protect people.

The Principle of Operation

A safety switch is a vital component designed to quickly disconnect the power to an electrical circuit when it detects a fault. The core principle behind this device is to monitor the flow of electricity through a circuit and to interrupt the supply the moment it detects a leakage current that could pose a risk. This is often measured through a differential current, where the switch compares the currents flowing in and out of a circuit. If there’s an imbalance, it’s a sign of a leakage which promptly triggers the switch to cut off power, ensuring immediate protection.

Different Types of Safety Switches

Understanding the variety of safety switches available is essential for engineers aiming to enhance industrial safety measures. Let’s explore these types to determine the best fit for specific applications:

1. Guard Locking Switches: These switches are crucial for managing access to machinery with hazardous motion. They operate in two main modes: power-to-lock, which keeps the guard locked until power is supplied, and power-to-unlock, which locks the guard when power is cut. This ensures that access is controlled precisely during critical operations.

2. Double-door Safety Switches: These switches feature a compartmentalized design that enhances safety by separating the switching compartment from the fuse compartment. This design prevents accidental contact with line-side power, significantly reducing the risk of electrical accidents.

3. Safety Interlock Switches: Often referred to as safety-rated door switches, these are designed to control access to hazardous areas. They function by activating or cutting off electrical current and locking the barrier, thereby preventing unauthorized access during dangerous phases of machine operation.

4. Non-contact Safety Switches: Utilizing advanced technology such as magnets, transponders, or inductors, these switches detect the need to cut power without physical contact. This method is highly effective in environments where durability and minimal physical wear are priorities.

Each type of safety switch offers unique advantages that cater to different safety requirements in industrial settings. Choosing the right switch involves understanding the specific safety challenges and operational demands of your facility.

Safety Features and Mechanisms

Safety switches are engineered with robust safety features to ensure maximum protection.
They include:

Test Buttons: Allow users to check the operational integrity of the switch regularly.
Auto-monitoring Capabilities: Continually assess the circuit’s health to detect any potential risks, enhancing preventive safety.
Instantaneous Reaction: Designed to react within milliseconds to any fault, significantly reducing the risk of injury or damage.

These mechanisms are crucial for maintaining a safe operational environment, particularly in places where electrical hazards are prevalent.

Common Applications and Uses

Safety switches are indispensable in industrial environments, where they play a critical role in protecting both personnel and machinery. Let’s delve into some of their common applications within this sector.

In manufacturing plants, safety switches are employed to ensure that heavy machinery is operable only when all safety conditions are met. For instance, in an automotive assembly line, these switches prevent the operation of robotic arms unless safety guards are properly in place, minimizing the risk of accidents. Similarly, in the food processing industry, safety switches are used to halt conveyors and processing equipment if a safety door is accidentally opened, ensuring that operators are not caught in the machinery during cleaning or maintenance.

Another significant application is in the chemical industry, where the presence of highly reactive substances means that equipment must operate under strict safety protocols. Safety switches here ensure that mixing tanks or pressure vessels are not accessible while in operation, preventing exposure to potentially hazardous chemicals.

These examples illustrate how safety switches are a fundamental component of industrial safety systems, safeguarding employees from mechanical and operational hazards.

Installation and Maintenance Tips

Installing and maintaining safety switches properly is crucial for ensuring they function as intended, safeguarding your workplace effectively. Here’s a guide to help you, as a newly joined engineer, manage these critical devices:

Installation: The installation of safety switches should always be handled by a certified electrician who follows the manufacturer’s instructions meticulously. This ensures compliance with local safety regulations and guarantees that the switch will operate correctly. It’s important to position the switch so that it can accurately detect any safety breaches and respond promptly.

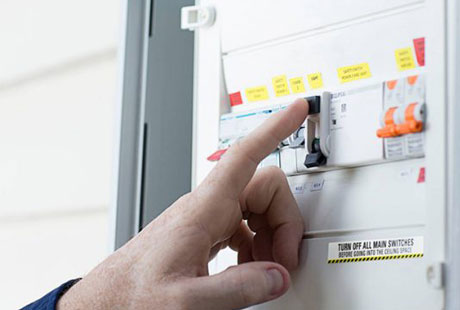

Routine Checks: To maintain the reliability of safety switches, regular testing is essential. Use the built-in test button to check functionality. This should be done every three months. These tests confirm the operational readiness of the switch and can highlight early signs of potential failure.

Professional Inspections: Besides your regular checks, annual inspections carried out by professionals are critical. These experts can assess and rectify deeper issues that might not be evident during routine tests. They ensure that every component of the safety switch is in top working condition and can often update you on new standards or technology upgrades.

Remember, the key to effective safety switch operation lies in diligent installation and proactive maintenance. This approach not only extends the life of the switches but also ensures they can protect the workplace as designed, providing peace of mind and keeping safety a top priority.

Conclusion

Safety switches are indispensable tools in the quest to create safer industrial environments. Their ability to immediately disconnect power upon detecting faults makes them a crucial element in preventing electrical injuries and fatalities. By understanding how these devices work, their types, and their applications, and by adhering to recommended installation and maintenance practices, you can ensure that safety switches perform their protective roles effectively. This knowledge is not just about compliance, but about fostering a culture of safety that prioritizes human life above all.
