How Does A Bi-Metallic Strip Work In Temperature Gauges?
Key Takeaway
A bi-metallic strip works in temperature gauges by using two different metals with different rates of expansion. When the temperature changes, the metals expand or contract at different rates, causing the strip to bend. This bending movement is then transferred to a pointer or dial, which indicates the temperature.
Bi-metallic strips are commonly used in industrial applications for their simplicity and reliability. As the temperature changes, the movement of the strip is directly related to the degree of heat, allowing for precise temperature readings. This design is commonly found in mechanical temperature gauges, such as those used in HVAC systems.
Introduction to Bi-Metallic Strips
Bi-metallic strips are widely used in temperature gauges due to their unique ability to respond to changes in temperature. These strips consist of two different metals that expand at different rates when exposed to heat. This differential expansion is what enables the strip to bend or move in response to temperature changes, making it an essential component in many mechanical temperature measurement devices.
In temperature gauges, bi-metallic strips are commonly found in applications where a simple, reliable, and cost-effective method of measuring temperature is needed. They are particularly effective for systems that require a mechanical output, such as dial thermometers, thermostats, and certain industrial temperature sensing devices. By bending in response to temperature changes, the bi-metallic strip directly influences the movement of a pointer on a dial or triggers a mechanical switch.
Understanding how bi-metallic strips work can help engineers and technicians select the right temperature gauge for their specific needs, ensuring accurate and consistent temperature readings in a variety of industrial applications.
Composition of Bi-Metallic Strips
A bi-metallic strip is made from two different metals that are bonded together in a way that allows them to expand at different rates when heated. The two metals used in a bi-metallic strip are carefully selected based on their contrasting coefficients of thermal expansion. This difference in expansion properties is what allows the strip to bend when subjected to heat.
Common metal combinations used in bi-metallic strips include copper and steel, brass and steel, or brass and bronze. Copper, known for its high thermal conductivity, expands more quickly than metals like steel or brass, making it an ideal choice for one of the layers of the strip. The other metal, typically a more stable material like steel or brass, provides the necessary strength and durability to maintain the strip’s structural integrity.
The bonding of the two metals is crucial to the strip’s functionality. The metals are either welded or fused together in a way that ensures they remain securely attached even as they expand and contract. The result is a strip that responds predictably to temperature changes, bending or curving as the metals expand at different rates.
In some cases, the metals used in the strip may be coated to enhance their resistance to corrosion, wear, or oxidation. This ensures that the bi-metallic strip remains effective over time, even in challenging environments such as industrial plants or outdoor applications where the temperature gauge may be exposed to the elements.
By choosing the right metal combination and ensuring proper bonding, bi-metallic strips can provide a reliable and durable solution for temperature measurement in various applications.
Working Principle of Bi-Metallic Strips
The working principle of a bi-metallic strip is based on the fact that different metals expand at different rates when heated. When one metal expands more than the other, the strip bends. This bending motion is what allows the bi-metallic strip to respond to changes in temperature.
As the temperature increases, the metal with the higher coefficient of thermal expansion expands faster than the metal with the lower coefficient. Since the two metals are bonded together, this causes the strip to bend in one direction. The degree of bending is proportional to the temperature change. The greater the temperature, the more the strip bends. This bending motion can be used to trigger a mechanical action, such as moving a pointer on a dial, closing or opening an electrical contact, or activating a switch.
In many temperature gauges, the bi-metallic strip is connected to a needle or pointer on a dial. As the strip bends in response to temperature fluctuations, the pointer moves along a scale to indicate the current temperature. This makes bi-metallic strips especially useful in analog temperature gauges, where a visual reading is needed.
In other applications, such as thermostats, the bending of the bi-metallic strip can be used to control a switch. When the strip bends beyond a certain point due to a rise in temperature, it can open or close a contact, activating or deactivating a heating or cooling system. This simple but effective mechanism ensures that systems are maintained within safe temperature ranges.
The precision and predictability of the bi-metallic strip’s bending response make it an essential tool in many mechanical temperature measurement devices.
Applications of Bi-Metallic Strips in Temperature Gauges
Bi-metallic strips are commonly used in various types of temperature gauges due to their simplicity, reliability, and low cost. Their unique properties make them suitable for a wide range of applications where accurate and consistent temperature measurement is needed.

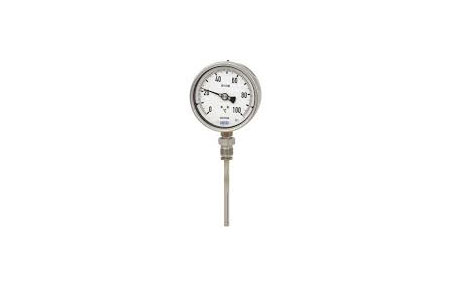

One of the most common applications of bi-metallic strips is in mechanical thermometers, especially dial thermometers. In these devices, the bi-metallic strip is attached to a pointer on a dial. As the temperature rises or falls, the strip bends, causing the pointer to move along a calibrated scale. This provides an easy-to-read visual display of the current temperature. Bi-metallic dial thermometers are often used in industries such as food processing, HVAC systems, and manufacturing, where real-time temperature monitoring is critical.
Another important application is in thermostats, which regulate temperature by controlling heating and cooling systems. In these devices, the bi-metallic strip bends as the temperature changes, opening or closing electrical contacts to turn the system on or off. This type of bi-metallic strip thermostat is commonly used in home heating and air conditioning systems, as well as in industrial processes.
Bi-metallic strips are also used in safety devices such as temperature limiters or thermal protectors. These devices use the bending action of the strip to activate a switch when a certain temperature threshold is exceeded, providing protection against overheating. For example, bi-metallic strips are used in electric motors, electrical appliances, and industrial equipment to prevent damage from excessive heat.
Additionally, bi-metallic strips are employed in temperature controllers for ovens, furnaces, and engines, where precise temperature regulation is necessary. The ability of the bi-metallic strip to provide a mechanical response to temperature changes makes it a versatile and reliable component in these applications.
Advantages and Limitations of Using Bi-Metallic Strips
Bi-metallic strips offer several advantages in temperature measurement applications, but they also have limitations that must be considered when selecting the right temperature gauge for a specific application.
Advantages: One of the primary advantages of bi-metallic strips is their simplicity and mechanical nature. They do not require electrical power to operate, making them ideal for situations where power sources are limited or unavailable. Their simplicity also makes them cost-effective, which is why they are commonly used in affordable temperature gauges and thermostats.
Bi-metallic strips are also highly reliable and durable in many environments. They can function in a wide range of temperatures, making them suitable for applications in industrial, commercial, and residential settings. Additionally, they are relatively low maintenance, as there are no complex electronic components involved that could fail over time.
Furthermore, bi-metallic strips provide immediate mechanical feedback, which is useful for real-time temperature monitoring. The bending action is direct and can be observed visually in analog thermometers, or used to control switches in thermostats and safety devices.
Limitations: Despite their many advantages, bi-metallic strips have some limitations. One of the main drawbacks is their relatively low precision compared to digital temperature sensors. The bending response can be affected by factors such as the thickness of the metals, their bonding quality, and the overall gauge design. This can result in less accurate readings, especially in applications that require high precision.
Another limitation is the limited range of temperatures that bi-metallic strips can accurately measure. Extreme temperatures, either very low or very high, can cause the metals to warp or degrade over time, reducing the lifespan of the strip and affecting the gauge’s performance.
Finally, the mechanical nature of bi-metallic strips means they are subject to wear and tear. Over time, repeated bending and thermal cycling can lead to fatigue, which may cause the strip to lose its responsiveness or fail entirely.
Conclusion
In conclusion, a bi-metallic strip is a fundamental component of temperature gauges, functioning based on the different expansion rates of two bonded metals. As temperature changes, the metals expand or contract at different rates, causing the strip to bend or curve. This mechanical movement is then translated into a temperature reading on the gauge.
Bi-metallic strips offer a simple yet effective way to measure temperature changes without the need for external power sources. Their reliability and accuracy make them suitable for various applications, particularly in environments where robustness and simplicity are essential. Understanding the working principle of bi-metallic strips enhances the ability to select and maintain appropriate temperature gauges for industrial processes, ensuring consistent performance and safety.
