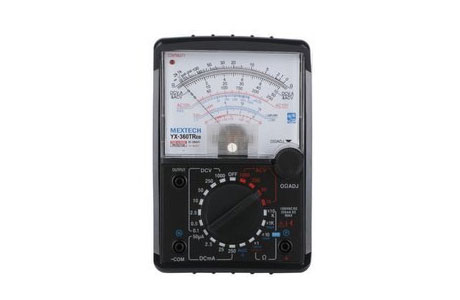

How Do Multimeters Measure Voltage, Current, And Resistance?

Key Takeaway

A multimeter measures voltage, current, and resistance using different methods tailored to each property.

To measure voltage, the multimeter is connected in parallel with the circuit. It detects the potential difference between two points and displays the result in volts. For current, the multimeter is connected in series with the circuit, becoming part of the current path. This allows it to measure the flow of electrical current in amperes. To measure resistance, the multimeter injects a small current into the circuit and calculates the resistance using Ohm’s Law (V=I×R) based on the voltage drop detected.

Each function requires setting the multimeter to the correct mode and using proper connections. Accurate readings depend on using the multimeter correctly and ensuring no circuit interference during measurement. This makes multimeters essential tools for diagnosing and repairing electrical systems.

The Basics of Voltage Measurement: AC and DC Modes

Voltage measurement is one of the most basic and frequently used functions of a multimeter. It allows you to determine the potential difference between two points in a circuit.

DC Voltage Measurement: In DC mode, multimeters measure the direct potential difference, typically used for batteries, power supplies, or electronic circuits. For example, when checking a 9V battery, you’ll place the probes across the terminals, ensuring the polarity matches. The reading will show the exact voltage remaining in the battery.

AC Voltage Measurement: In AC mode, multimeters measure the alternating voltage found in outlets or power supplies. Unlike DC, AC voltages continuously change direction, so multimeters display the root mean square (RMS) value, which represents the effective voltage.

Using the right mode is critical. For instance, attempting to measure AC voltage in DC mode will result in an incorrect or null reading. Similarly, ensuring the probes are properly connected to the circuit prevents false readings or potential damage.

Voltage measurement is the starting point for diagnosing most electrical systems, from simple household appliances to industrial equipment.

FAQ Image

AC and DC Modes H2:Current Measurement Techniques: Direct vs. Indirect Methods

Measuring current is another vital function of multimeters, allowing you to identify overdrawn circuits, faulty components, or inefficient devices.

Direct Measurement: In this method, the multimeter is connected in series with the circuit. By interrupting the circuit and inserting the multimeter, you can measure the current flowing through it. For example, when checking the current draw of a motor, you’d disconnect one wire, connect it to the multimeter, and complete the circuit through the device.

Indirect Measurement: Clamp meters, a type of multimeter, measure current indirectly by sensing the magnetic field around a conductor. This method is safer and faster, especially for high-current applications, as there’s no need to break the circuit.

Range Settings and Precautions: Always ensure the multimeter’s range is set correctly to avoid overloading. For direct measurement, use the appropriate current terminals, usually marked as mA or A. Mistakes, such as connecting the probes to the wrong terminal or measuring high current on a low-current setting, can damage the device.

Mastering current measurement techniques helps you diagnose problems effectively, whether you’re fixing a blown fuse or analyzing an industrial power line.

urrent Measurement Techniques: Direct vs. Indirect Methods H2: Resistance Testing: Identifying Faulty Components

Resistance measurement helps in diagnosing open circuits, damaged components, or loose connections. This is a key feature when troubleshooting devices like motors, resistors, or wires.

How It Works: A multimeter measures resistance by passing a small current through the component and calculating the opposition to the flow. The reading, displayed in ohms (Ω), indicates whether the component is functioning properly.

Testing Components: For instance, when a motor doesn’t start, measuring the resistance of its windings can reveal whether they’re intact or burned out. Similarly, when working with resistors, the measured resistance should match the specified value to ensure proper functionality.

Circuit Precautions: Resistance should always be measured on de-energized circuits. Attempting to measure resistance on a live circuit can damage the multimeter or give incorrect readings.

Continuity Mode: Many multimeters have a continuity mode, which emits a beep if the circuit is complete. This is especially useful for quickly checking cables or connections without needing to interpret numerical readings.

Resistance testing simplifies fault identification, saving time and effort during repairs or installations.

Direct vs. Indirect Methods H2: Resistance Testing: Identifying Faulty Components H2: Multimeter Internal Mechanisms for Accurate Readings

The accuracy of a multimeter relies on its internal mechanisms, which are carefully designed to handle different types of measurements.

Voltage Divider Circuit: When measuring voltage, multimeters use a voltage divider circuit to reduce the input voltage to a level the device can safely process. The internal analog-to-digital converter (ADC) then converts this reduced voltage into a readable digital value.

Shunt Resistors: For current measurement, multimeters use precision shunt resistors. When current flows through the shunt, it creates a small voltage drop proportional to the current, which the device measures and displays.

Constant Current Source: Resistance measurement relies on a constant current source within the multimeter. By applying this current to the test component, the multimeter calculates resistance using Ohm’s law.

Calibration and Accuracy: High-quality multimeters are factory-calibrated to ensure accuracy. Periodic recalibration is recommended for professional use, especially in industries where precision is critical.

Understanding these mechanisms gives users insight into how multimeters provide reliable readings across different measurement modes.

Resistance Testing: Identifying Faulty Components H2: Multimeter Internal Mechanisms for Accurate Readings H2: Tips for Safe and Effective Measurements

While multimeters are invaluable tools, using them safely and effectively requires adherence to best practices.

Choose the Right Setting: Always select the correct mode—voltage, current, or resistance—and range for your measurement. Auto-ranging multimeters simplify this step, but manual models require extra attention.

Inspect Probes and Leads: Damaged probes can lead to inaccurate readings or, worse, electric shock. Regularly check for wear and tear, and replace them if necessary.

Understand Safety Ratings: Multimeters have safety categories (CAT I to CAT IV) that indicate the environments they’re designed for. Always choose a multimeter appropriate for your application. For instance, use a CAT III or CAT IV device for high-voltage industrial systems.

De-energize Circuits When Necessary: For resistance or continuity testing, ensure the circuit is powered off to prevent damage to the multimeter or inaccurate results.

Use Proper Connections: Double-check probe connections before measuring. For instance, when measuring current, ensure the probes are connected to the correct terminals to avoid damaging the device.

Following these tips ensures accurate readings while keeping you and your equipment safe.

Conclusion

Multimeters are powerful tools for measuring voltage, current, and resistance, provided you understand their functions and use them correctly. Whether diagnosing a faulty circuit or fine-tuning an electronic device, knowing how these measurements work and the mechanisms behind them can greatly enhance your effectiveness. By following safety tips and best practices, you can maximize the potential of your multimeter and tackle any electrical challenge with confidence.
